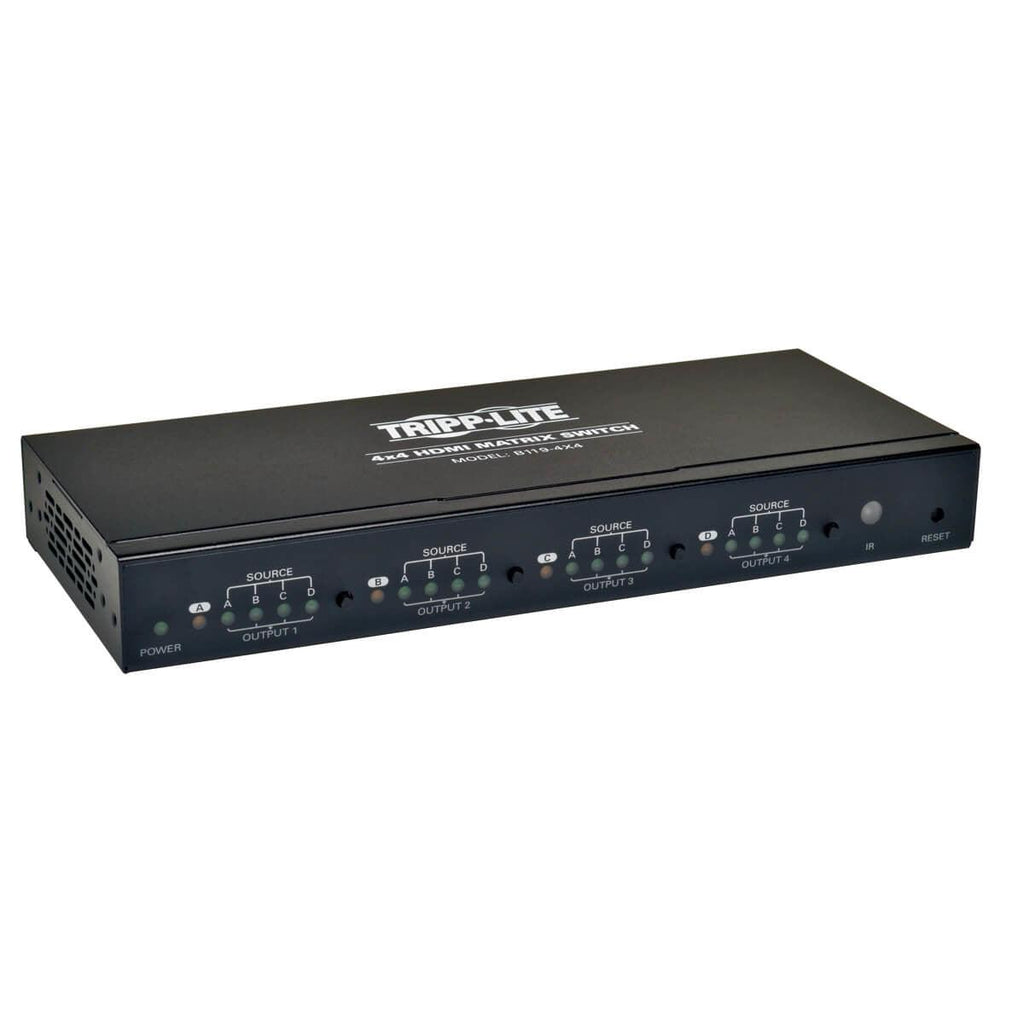

4x4 HDMI Matrix Switch for Video and Audio, 1920x1200, 60Hz/1080p
Tripp Lite B119-4X4. Video port type: HDMI. Product colour: Black, Maximum operating distance: 7.62 m, Supported graphics resolutions: 1920 x 1080 (HD 1080),1920 x 1200 (WUXGA). Power requirements: 100-240V, 50/60Hz. Certification: TAA. Width: 233.7 mm, Depth: 99.1 mm, Height: 30.5 mm

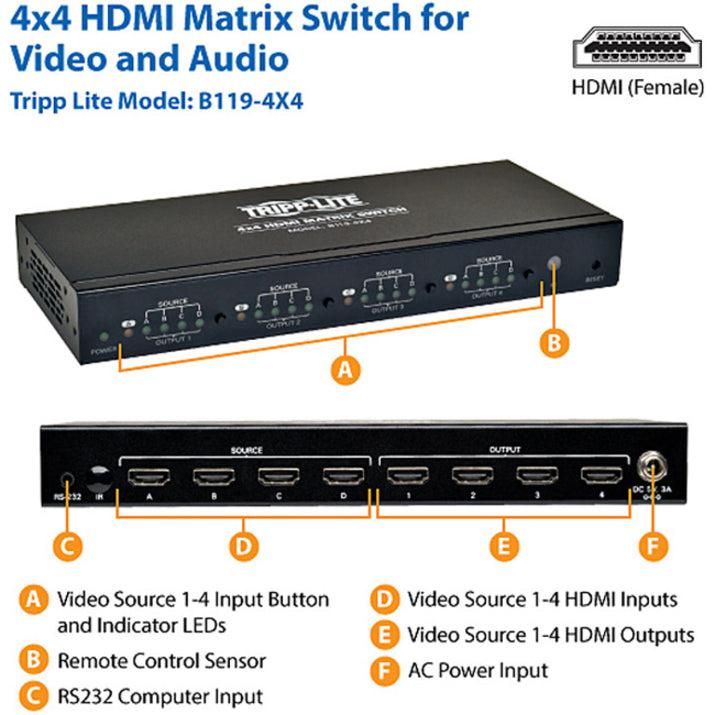

Tripp Lite B119-4X4 is a 4x4 HDMI Matrix Switch that routes high definition video from any four HDMI sources to any four HDMI displays. It supports video resolutions up to 1920 x 1080 (1080p) @ 60Hz. The 4x4 Matrix eliminates the need to disconnect and reconnect HDMI sources. It works with any HDMI source that connects to an HDMI display, and each source is accessible at all times by any display by selecting it with an IR remote, or using the RS232 port to switch the unit.
General Information
Manufacturer
Tripp Lite by Eaton
Manufacturer Part Number
B119-4X4
Manufacturer Website Address
https://tripplite.eaton.com/
Brand Name
Tripp Lite by Eaton
Product Model
B119-4X4
Product Name
4x4 High Speed HDMI Video Matrix Switch with Audio 1920x1200 at 60Hz / 1080p
Product Type
Audio/Video Switchbox
UPC
037332180179
Height
1.2"
Width
9.2"
Depth
3.9"
Weight (Approximate)
1.45 lb
Miscellaneous

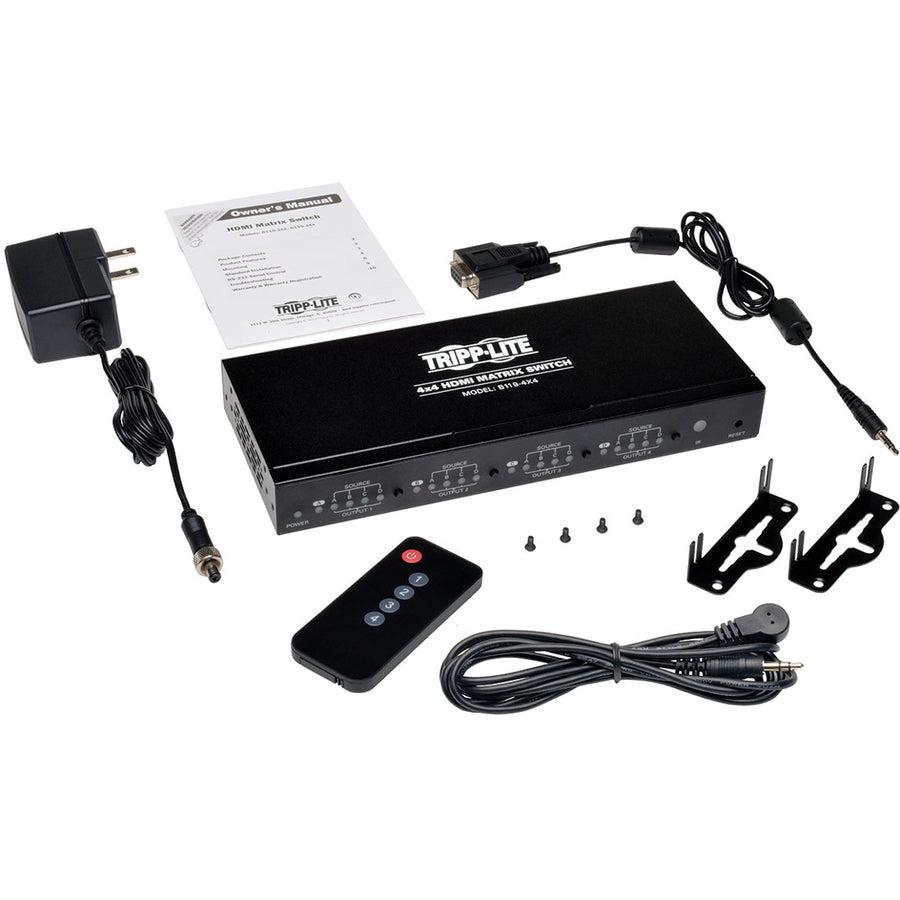

Package Contents
4x4 High Speed HDMI Video Matrix Switch with Audio 1920x1200 at 60Hz / 1080p
External Power Supply with NEMA 1-15P Plug (Input: 100-240V, 50/60Hz, 0.5A Output: 5V, 3A)
