Tripp Lite B070-008-19-Ip Netcommander 8-Port Cat5 Kvm Over Ip Switch - 19 In. Lcd, 1 Remote + 1 Local User, 1U Rack-Mount

NetCommander 8-Port Cat5 KVM over IP Switch - 19 in. LCD, 1 Remote 1 Local User, 1U Rack-Mount

Tripp Lite B070-008-19-IP NetCommander 8-Port Cat5 KVM over IP Switch - 19 in. LCD, 1 Remote + 1 Local User, 1U Rack-Mount. Display diagonal: 48.3 cm (19"), Display resolution: 1366 x 768 pixels, Display: LCD. Certification: FCC. Power supply type: AC, Power consumption (typical): 30 W, Power consumption (standby): 5 W. Width: 440.9 mm, Height: 43.4 mm, Depth: 722.1 mm. Package weight: 18.1 kg, Package width: 591.8 mm, Package depth: 819.2 mm

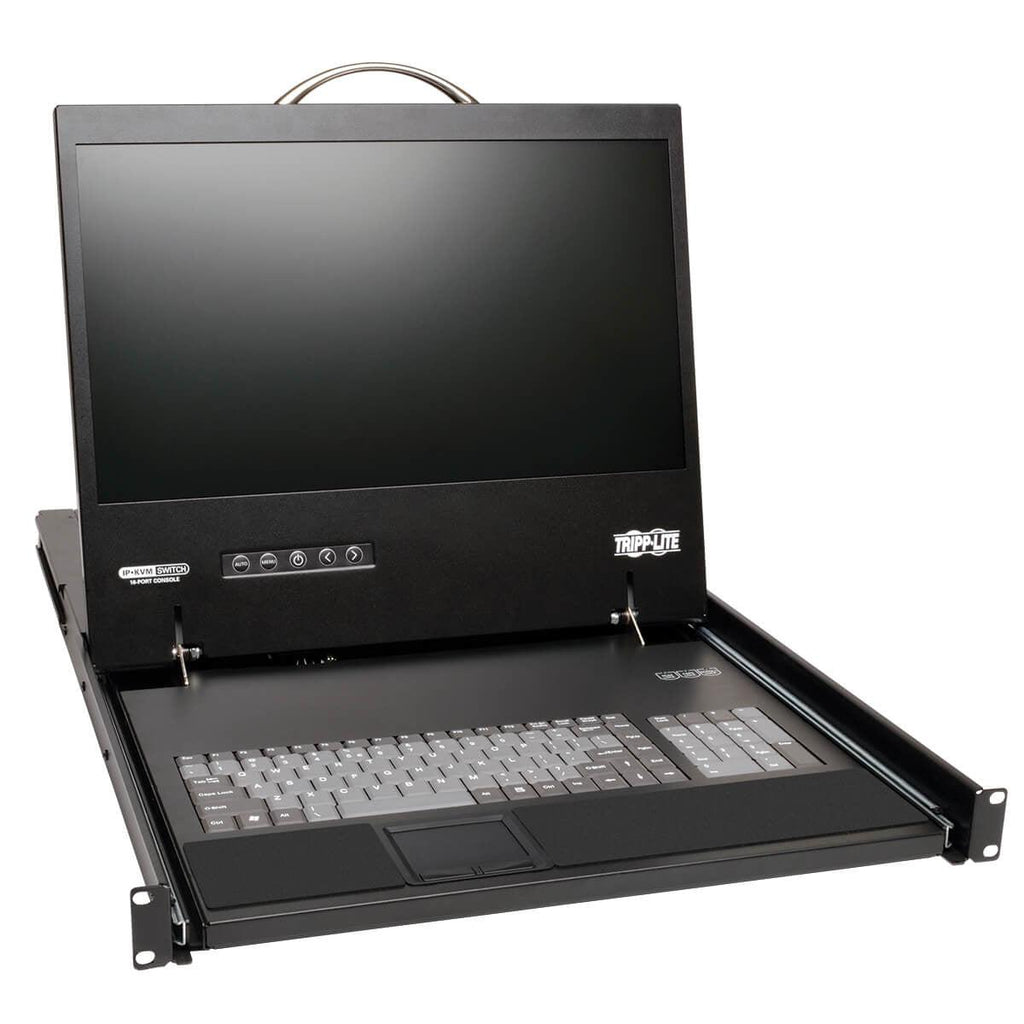

Tripp Lite’s B070-008-19-IP KVM Switch gives you a rack-mountable full keyboard, LCD and touchpad in a single console that occupies only 1U of rack space. Easy to install and use, it’s the optimal solution for controlling up to 8 computers/servers locally, from across the room, down the street or halfway around the globe on a LAN, WAN or Internet.

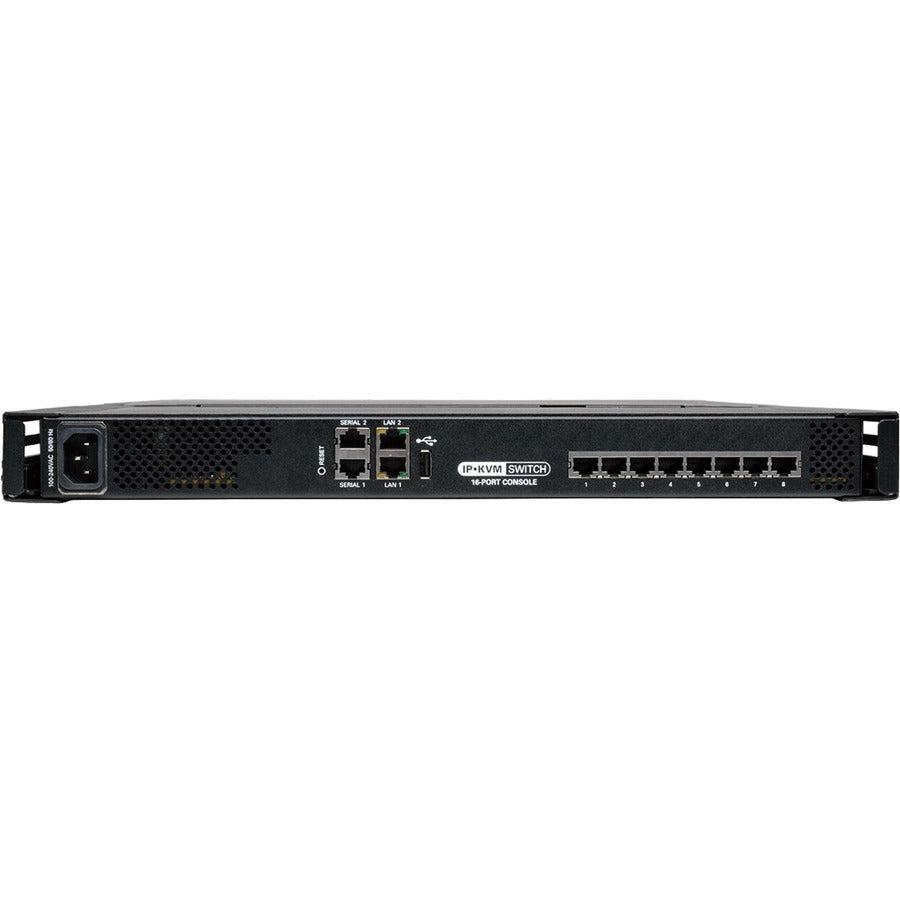

The B070-008-19-IP uses inexpensive, user-supplied Cat5e/6/6a cabling with Server Interface Units so you can control computers/servers located up to 100 ft. away from the switch. This switch features two 10/100 Mbps LAN ports, so if one fails, the other takes over, keeping remote access uninterrupted. Users can switch easily between the 8 ports using an on-screen display (OSD). Multi-level password protection prohibits unauthorized users from accessing the connected computers, and a local user and a remote user can be logged on simultaneously. The built-in 19“ LCD screen supports video resolutions up to 1366 x 768.

Two serial ports allow control of serial-manageable devices such as IP PDUs, firewalls and routers; you can assign individual ports to an IP PDU port to power on/off the server connected to that port. The B070-008-19-IP stores neatly in a rack drawer and pulls out when needed. This KVM console is compatible with both Windows and Linux operating systems, and provides remote access using a Windows computer. Heavy-duty steel housing stands up to frequent use. Complies with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases.

Free NetCommander-AXS Management Software is available for access and control of all of your Tripp Lite NetCommander IP KVM switches (B070 and B072 series). From a single interface, you can access server ports on any of your KVM switches, power cycle or power on/off outlets of IP PDU's, and manage KVM settings. This software can be found on the model support page of the B070-008-19-IP, or via searching NetCommander-AXS on www.tripplite.com

Saves Space and Money
Combines 8-port KVM switch, 19” LCD screen, keyboard and touchpad in a single 1U rack-mountable drawer
Mounts into 19”-wide rack, 27”-42” deep; to mount in a 2-post rack, use Tripp Lite’s B019-000
Inexpensive Cat5e/6/6a cabling lets you locate servers up to 100 ft. from the switch
Use Server Interface Unit B078-101-USB-1 (for USB) with each server that will be connected with Cat5 cable
For computers with Displayport or HDMI, change to VGA using Tripp Lite adapters P134-06N-VGA-V2 or P131-06N. Maximum video resolutions using adapters may vary.


IP Remote Access for Fewer Trips to the Server Room
Remote access means there’s no need to travel to the server room or network closet
Java-based application allows Windows computers to control a target server via web browser from any location over a secured IP connection
A non-browser client is available that allows Windows computers to remotely access the KVM without the need for a browser and without the need to install Java
1 local + 1 remote user can access different ports concurrently; up to 5 users can share a single session
Supports both IPv4 and IPv6
Free Management Software available to Access and Control all of your Tripp Lite NetCommander IP KVM's (B070 and B072 IP series) from a single interface

Simplifies IT Tasks
On-screen display, hot keys and remote toolbar for easy use
2 serial ports allow control of serial-manageable devices such as IP PDUs, firewalls and routers
Add IP PDUs as devices that can be controlled by the KVM; assign individual ports to an IP PDU port to power on/off the server connected to that port

Virtual Media allows a .iso file to be mounted to a target server and accessed as if it were directly stored on it
Fast Virtual Media KVM System patented under Pat. No. US 9,417,720
System-sent messages to SNMP server notify you of LAN failures
Supports RADIUS and LDAP/S authentication
Log tracks events on your installation

Large 19” LCD
Supports video resolutions up to 1366 x 768; 1920 x 1080 remotely
DDC emulation allows for optimal output to LCD

Advanced Security Features
Multi-level password protection: create administrator accounts with full access and user accounts with limited access
Supports TLS 1.2 security protocol
You can install SSL certificates to ensure secure transactions between web servers and browsers

Expandability and Long-Lasting Reliability
Flash-upgradeable firmware over the network
Heavy-duty steel housing stands up to use

TAA Compliant
Complies with the Federal Trade Agreements Act for GSA Schedule purchases
