Tripp Lite B055-001-Uhd Netdirector Hdmi Usb Server Interface Unit With Virtual Media And Cac Support (B064-Ipg Series), Usb And Hdmi

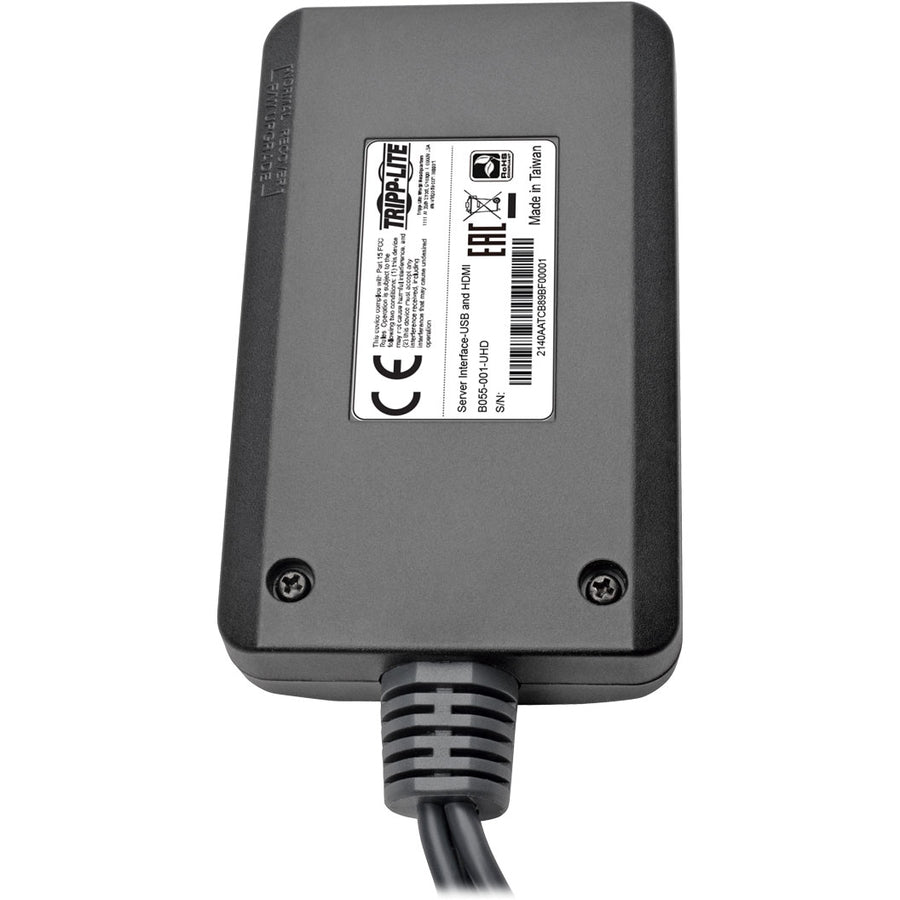

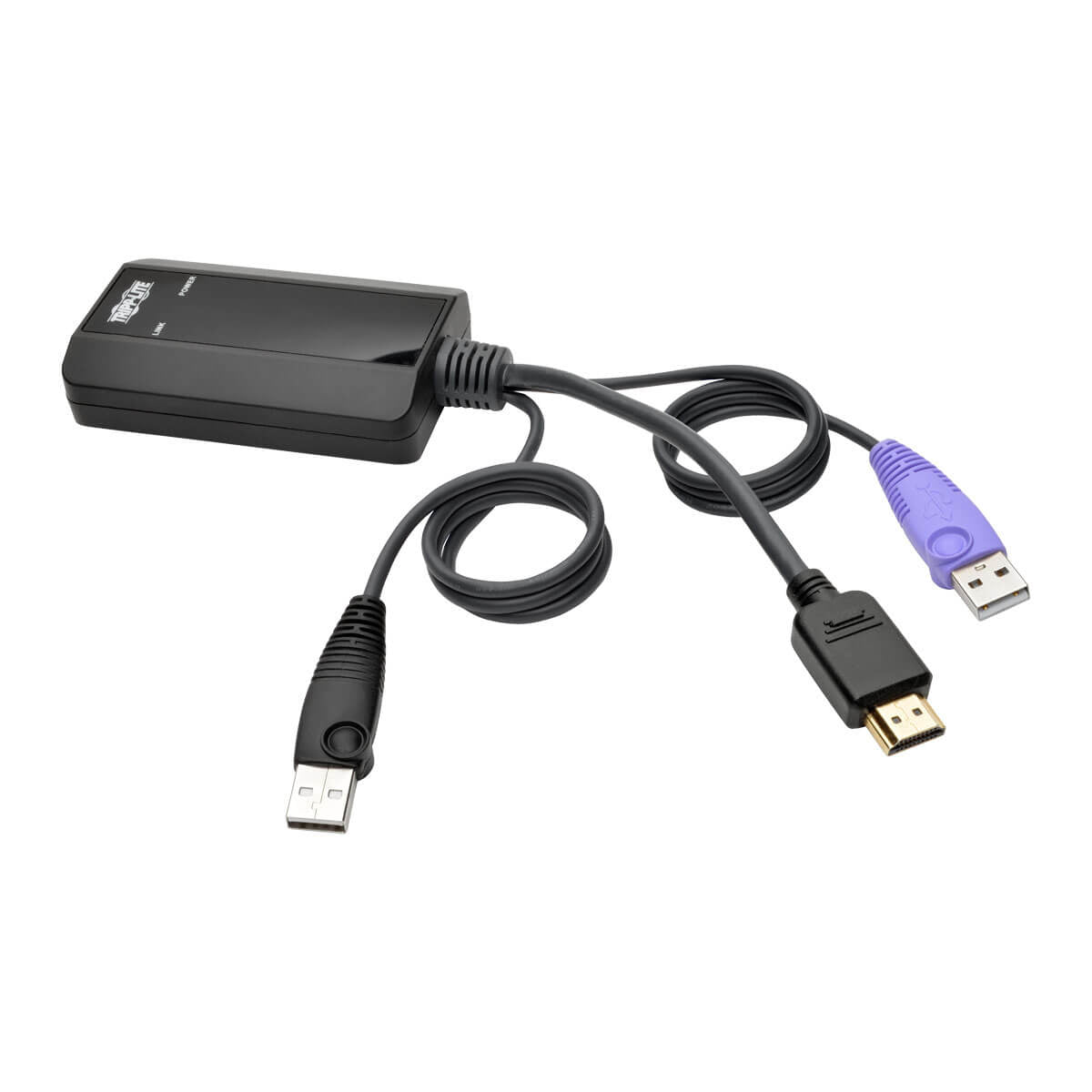

NetDirector HDMI USB Server Interface Unit with Virtual Media and CAC Support (B064-IPG Series), USB and HDMI

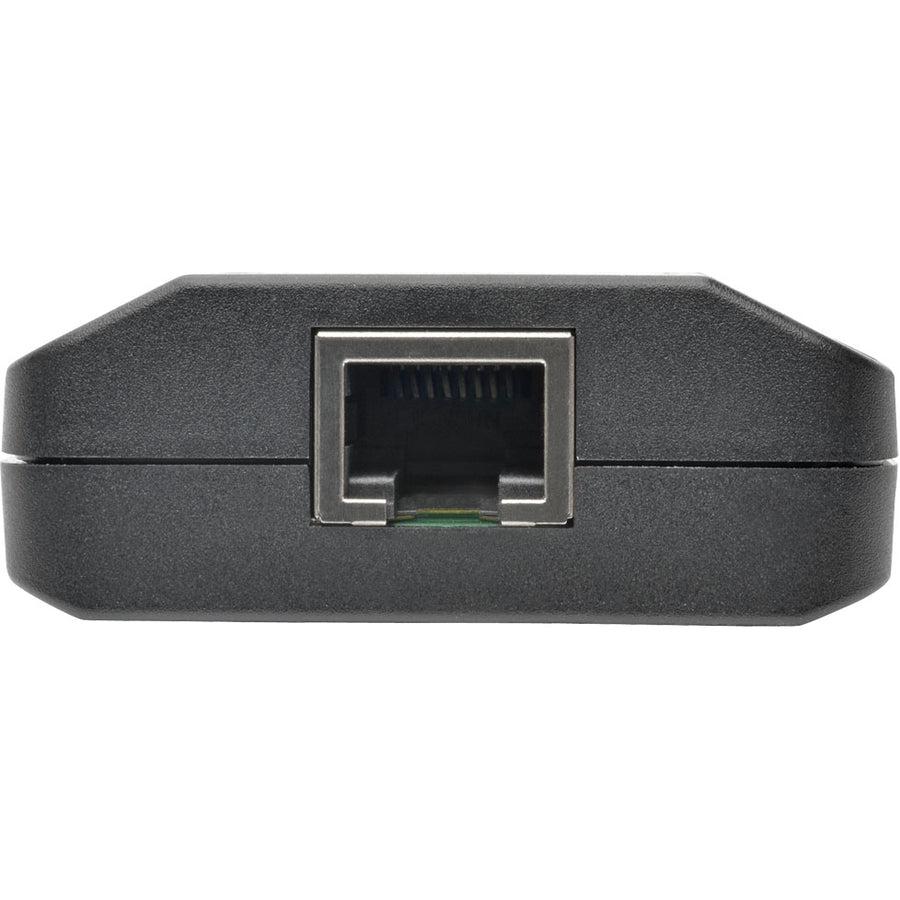

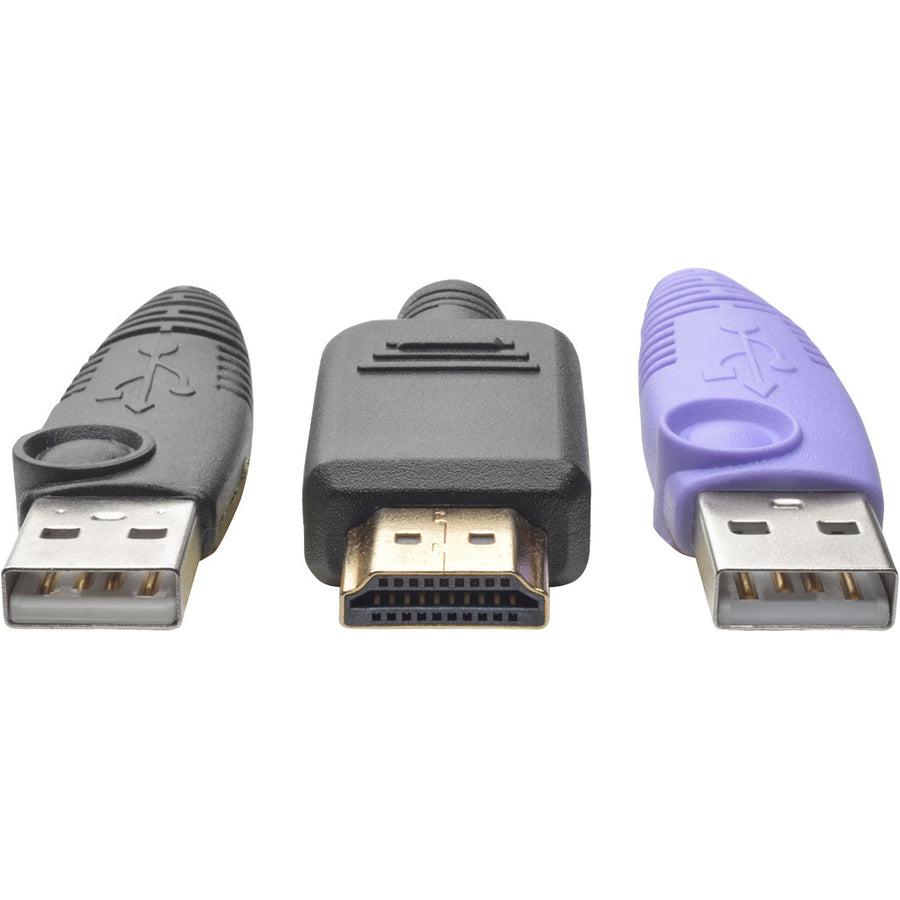

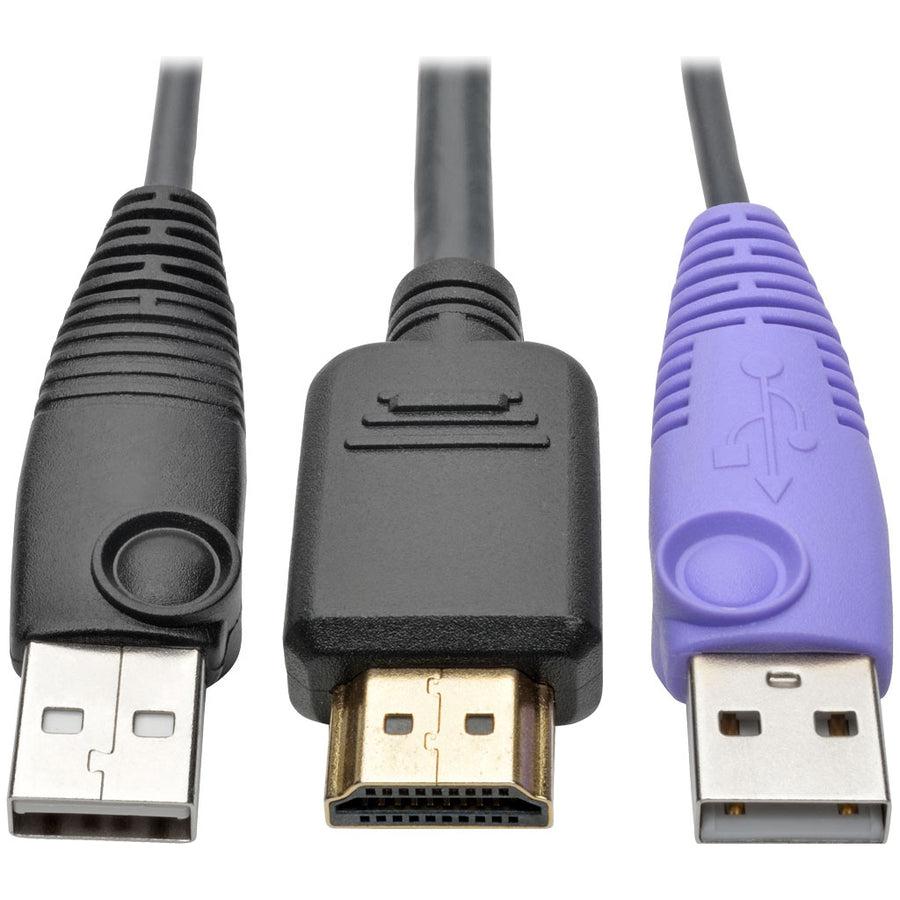

Tripp Lite B055-001-UHD NetDirector HDMI USB Server Interface Unit with Virtual Media and CAC Support (B064-IPG Series), USB and HDMI. Product colour: Black, Purple, Connector 1: RJ-45, Connector 2: HDMI + 2 x USB A. Package width: 121.9 mm, Package depth: 127 mm, Package height: 43.2 mm. Quantity per pack: 1 pc(s), Master (outer) case width: 228.6 mm, Master (outer) case length: 256.5 mm

The B055-001-UHD NetDirector® HDMI USB Server Interface Unit connects a server, computer or CAC reader with HDMI and/or USB ports to a Tripp Lite B064-IPG Series KVM switch with v1.0.071 or later firmware installed. Using Cat5e/6 cabling, you can locate the KVM switch up to 164 feet (50 meters) from the server.

Allowing the server to access the KVM switch’s Virtual Media functionality via low-cost Cat5e/6 cable eliminates the need for bulky KVM cables. This frees up precious space in your server cabinet, and allows for better ventilation and longer cable runs. Running cable through conduit and other tight spaces takes advantage of the increased flexibility when setting up your network application.

No software or external power supply is needed. The unit’s compact, lightweight design is plug-and-play for immediate installation and deployment. It complies with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases.

Note: SIU's that were purchased prior to that of your KVM switch may require a firmware upgrade in order for them to work properly (see Maintenance under OSD Operation section of your B064-Series KVM Owner's Manual for details)

Convenient, Cost-Effective KVM Connection
Connects USB/HDMI server to Tripp Lite B064-IPG Series KVM switch with v1.0.071 or later firmware via Cat5e/6 cable
Allows server to access Virtual Media functionality
Supports Common Access Card (CAC)
Maximum distance between server and KVM switch of 164 ft. (50 m)

Eliminates Bulky KVM Cables
Frees precious space in server cabinet
Provides better ventilation and longer cable runs
More flexibility for running cable through conduit and other tight spaces

Plug-and-Play Convenience
No software or external power supply required
Ready for immediate installation and deployment

TAA-Compliant
Complies with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases
