Tripp Lite B040-016-19 Netcontroller 16-Port 1U Rack-Mount Console Kvm Switch With 19-In. Lcd

NetController 16-Port 1U Rack-Mount Console KVM Switch with 19-in. LCD

Tripp Lite B040-016-19 NetController 16-Port 1U Rack-Mount Console KVM Switch with 19-in. LCD. Display diagonal: 48.3 cm (19"), Display resolution: 1366 x 768 pixels, Display: LCD. Certification: UL 60950-1 (USA), CAN/CSA (Canada), FCC Part 15 Class A, CE, IEC 60950-1, TUV (UL), CTUV, CE, FCC,.... Power consumption (typical): 30 W, Power consumption (standby): 5 W. Width: 449.3 mm, Height: 43.4 mm, Depth: 722.4 mm. Package weight: 18.5 kg, Package width: 591.8 mm, Package depth: 825 mm

Tripp Lite’s B040-016-19 KVM Switch gives you a rack-mountable keyboard, LCD and touchpad in a single console that occupies only 1U of rack space. Easy to install and use, it’s the cost-effective solution for controlling up to 16 directly connected computers/servers.

The B040-016-19 has a built-in 19” LCD screen supports video resolutions up to 1366 x 768. You can switch easily between the 16 ports using on-console push buttons, an on-screen display (OSD) or keyboard hot key commands. Password protection prohibits unauthorized users from accessing the connected computers.

With this KVM switch, you can increase the number of connected computers up to 256 by daisy-chaining up to 15 B042-Series KVM switches. Uses Tripp Lite P780-series combo cable kits that support both PS/2 and USB connections without the need to purchase additional cables or adapters. An extra HD15 port allows an additional VGA monitor or an external console to be connected. Add a Tripp Lite B051-000 IP Remote Access Unit to connect from anywhere in the world. An additional USB port lets you connect an external mouse or keyboard. When not in use, the B040-016-19 stores neatly in a rack drawer and pulls out when needed. This KVM console is compatible with all major operating systems. Rugged steel housing stands up to frequent use. Complies with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases.

Saves Valuable Space and Money

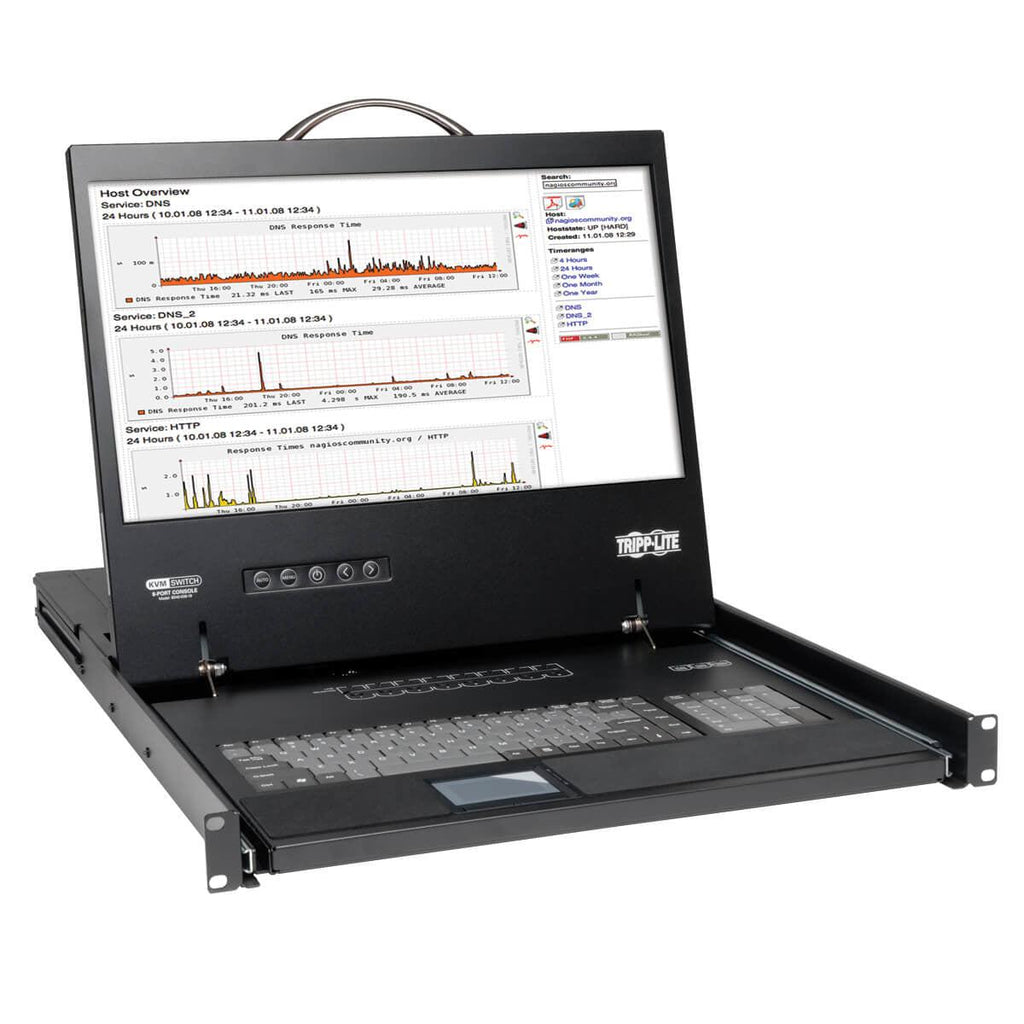

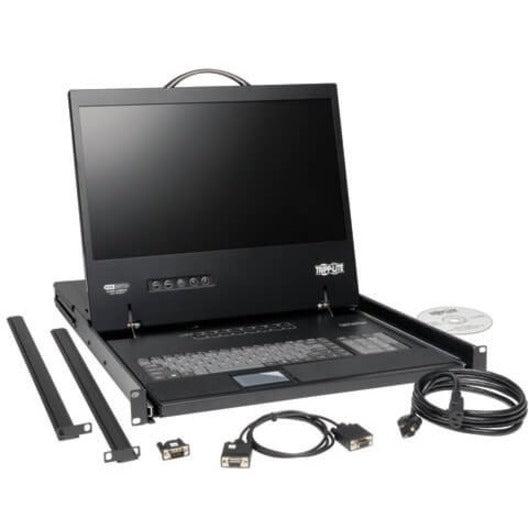

Combines a 16-port KVM switch, 19” LCD screen, full keyboard and touchpad in a 1U rack-mountable drawer
Mounts into 19”-wide rack, 27”-42” deep; can be mounted in a 2-post rack using Tripp Lite’s B019-000
Control up to 16 computers or servers from one easily accessible console – ideal when rack space is at a premium
Flip-up/fold-down screen keeps console from blocking access to rack equipment when not in use
Eliminates need to buy separate costly monitors, keyboards and mice for each computer/server

Simplifies IT Tasks
Switch easily between the 16 ports via on-console buttons, on-screen display or keyboard hot key commands
Auto-scan mode automatically sequences through all active ports that are accessible to the user

Large 19” LCD
Extra-wide display makes multitasking easier
Supports video resolutions up to 1366 x 768

Password Protection
Single-level password security limits access to authorized users
Two-level log-out allows manual log-out or automatic log-out after a user-defined period of time has passed

Expandability and Long-Lasting Reliability

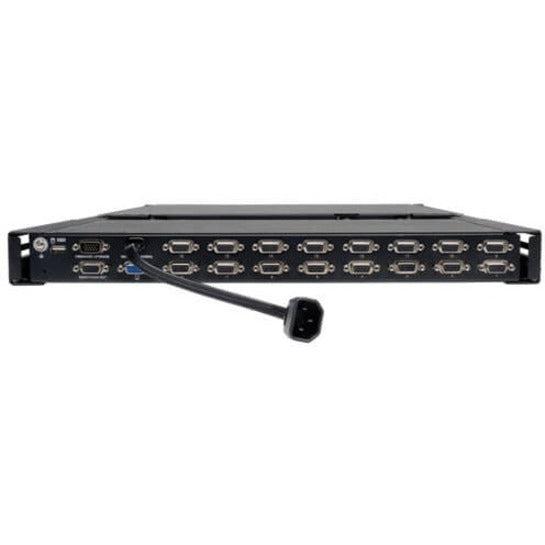

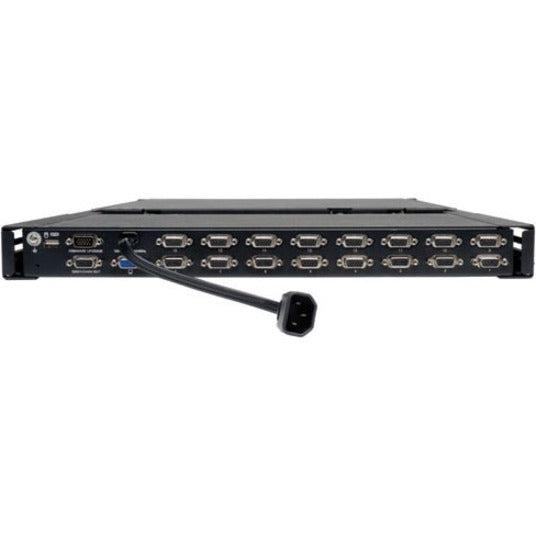

A port is available for connecting an external console or a Tripp Lite B051-000 IP Remote Access Unit that will let you control your servers from virtually anywhere in the world
Use the B040-016-19 with up to 15 B042-Series KVM switches daisy-chained to have access to up to 256 computers/servers
Compatible with all major operating systems for easy integration into your existing structure
Firmware is easily upgradable with included cable and utility
Heavy-duty steel housing stands up to frequent use

TAA Compliant
Complies with the Federal Trade Agreements Act for GSA Schedule purchases
