The Tripp Lite B006-HD2UA4 4-Port HDMI Dual-Display KVM Switch is perfect for IT professionals and power users who need efficient multi-computer management from a single workstation. Our solution delivers:
-
4-port HDMI KVM switching that controls up to 4 computers with dual monitor support
-
4K 60Hz video resolution for crystal-clear ultra-high-definition display quality
-
USB 3.2 Gen 1 connectivity optimization ensuring high-speed peripheral support
-
HDCP 2.2 compliance for protected content compatibility and streaming
Key Features
-
4-port KVM switching to control up to 4 computers or servers
-
Dual HDMI output support for extended desktop configurations
-
4K 60Hz video support on both displays simultaneously
-
USB 3.2 Gen 1 hub with 4 downstream ports
-
HDCP 2.2 compliance for protected content playback
-
Hot-key switching for quick computer selection
-
Auto-scan functionality for monitoring connected systems
-
Audio switching support with HDMI embedded audio
Technical Specifications
| Manufacturer |
Tripp Lite |
| Model Number |
B006-HD2UA4 |
| Type |
4-Port HDMI Dual-Display KVM Switch |
| Computer Ports |
4 computers (HDMI + USB) |
| Video Output |
2 x HDMI (dual display) |
| Video Resolution |
Up to 4K (3840 x 2160) @ 60Hz |
| HDCP Support |
HDCP 2.2 compliant |
| USB Specification |
USB 3.2 Gen 1 (5 Gbps) |
| USB Ports |
4 downstream USB-A ports |
| Audio Support |
HDMI embedded audio |
| Switching Methods |
Push button, hot-key, auto-scan |
| Hot-key Commands |
Scroll Lock + Scroll Lock + 1-4 |
| Auto-scan Interval |
5-99 seconds (adjustable) |
| LED Indicators |
Port status and power indicators |
| Power Supply |
External 12V DC adapter |
| Power Consumption |
Maximum 15W |
| Operating Temperature |
0°C to 40°C (32°F to 104°F) |
| Humidity |
10% to 80% non-condensing |
| Dimensions |
13.0" x 7.5" x 1.7" (WxDxH) |
| Weight |
3.3 lbs (1.5 kg) |
| Included Cables |
4 x USB-C to USB-A cables |
| Compatible Systems |
Windows PCs, Mac computers, Linux systems with HDMI output |
Frequently Asked Questions
Q: What makes this KVM switch ideal for dual-monitor setups?
A: The Tripp Lite B006-HD2UA4 4-port HDMI KVM switch supports dual-display configurations with 4K 60Hz resolution on both monitors simultaneously, allowing users to control up to 4 computers while maintaining extended desktop productivity across two ultra-high-definition displays.
Q: How does USB 3.2 Gen 1 connectivity benefit peripheral performance?
A: USB 3.2 Gen 1 support provides 5 Gbps data transfer speeds, ensuring high-performance connectivity for external storage devices, webcams, and other USB peripherals while maintaining backward compatibility with USB 2.0 and USB 1.1 devices.
Q: What does HDCP 2.2 compliance mean for content viewing?
A: HDCP 2.2 compliance ensures compatibility with protected content from streaming services like Netflix 4K, Amazon Prime Video, and other premium content providers, allowing seamless playback of copy-protected material across all connected computers.
Q: What switching options are available for computer selection?
A: The keyboard video mouse switch offers multiple switching methods including front panel push buttons, hot-key commands (Scroll Lock sequences), and auto-scan functionality with adjustable timing from 5-99 seconds for automatic monitoring of connected systems.
Q: Can this KVM switch handle different computer operating systems?
A: Yes, this multi-computer switch is compatible with Windows PCs, Mac computers, and Linux systems that support HDMI video output and USB connectivity, making it perfect for mixed operating system environments.
Q: How does the dual-display feature work with different computers?
A: Each connected computer can utilize both HDMI outputs for extended or mirrored display configurations. The dual-display KVM maintains independent display settings for each computer, allowing users to switch between different dual-monitor setups seamlessly.

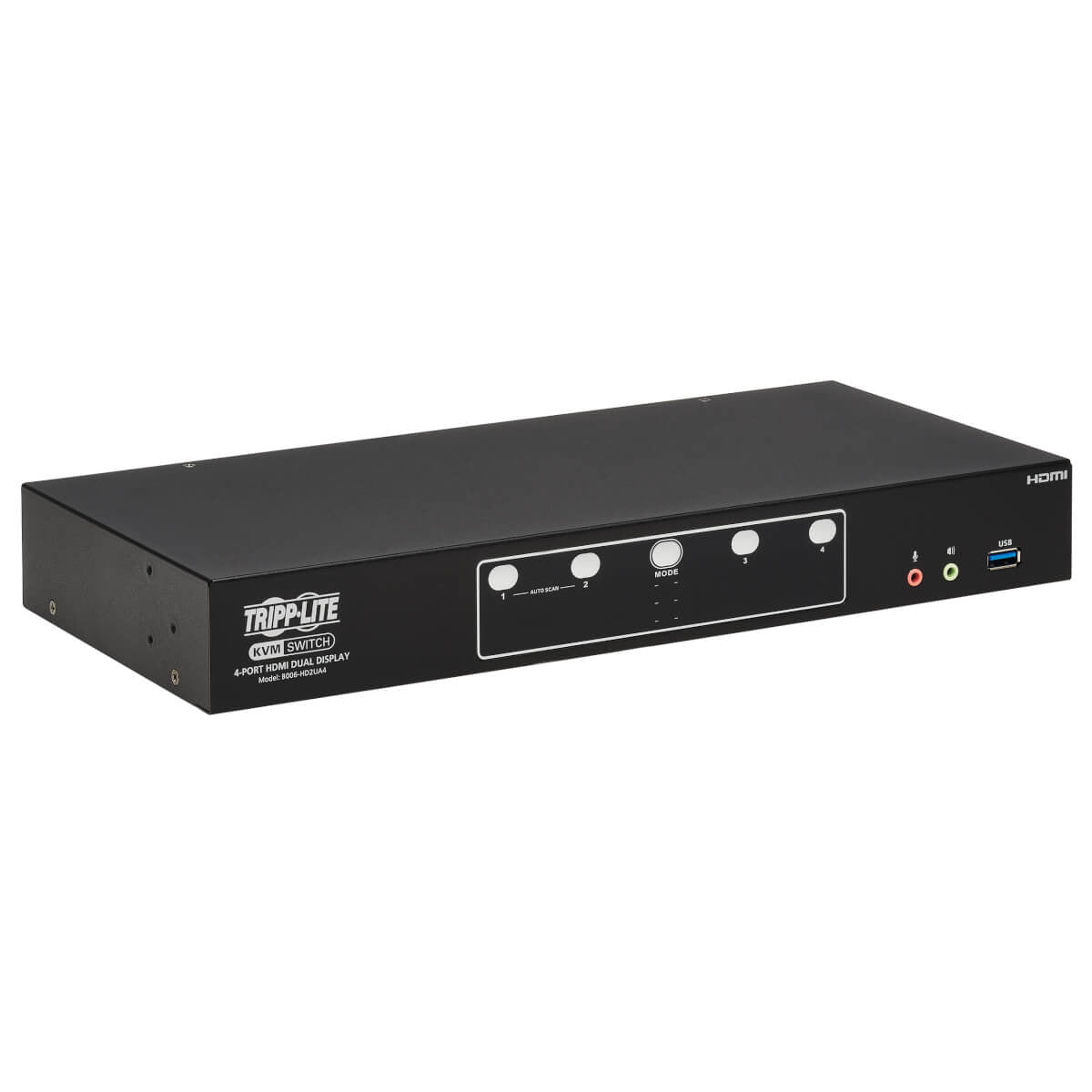

Tripp Lite B006-HD2UA4 4-port HDMI dual-display KVM switch featuring 4K 60Hz support, USB 3.2 Gen 1 connectivity, and HDCP 2.2 compliance.
