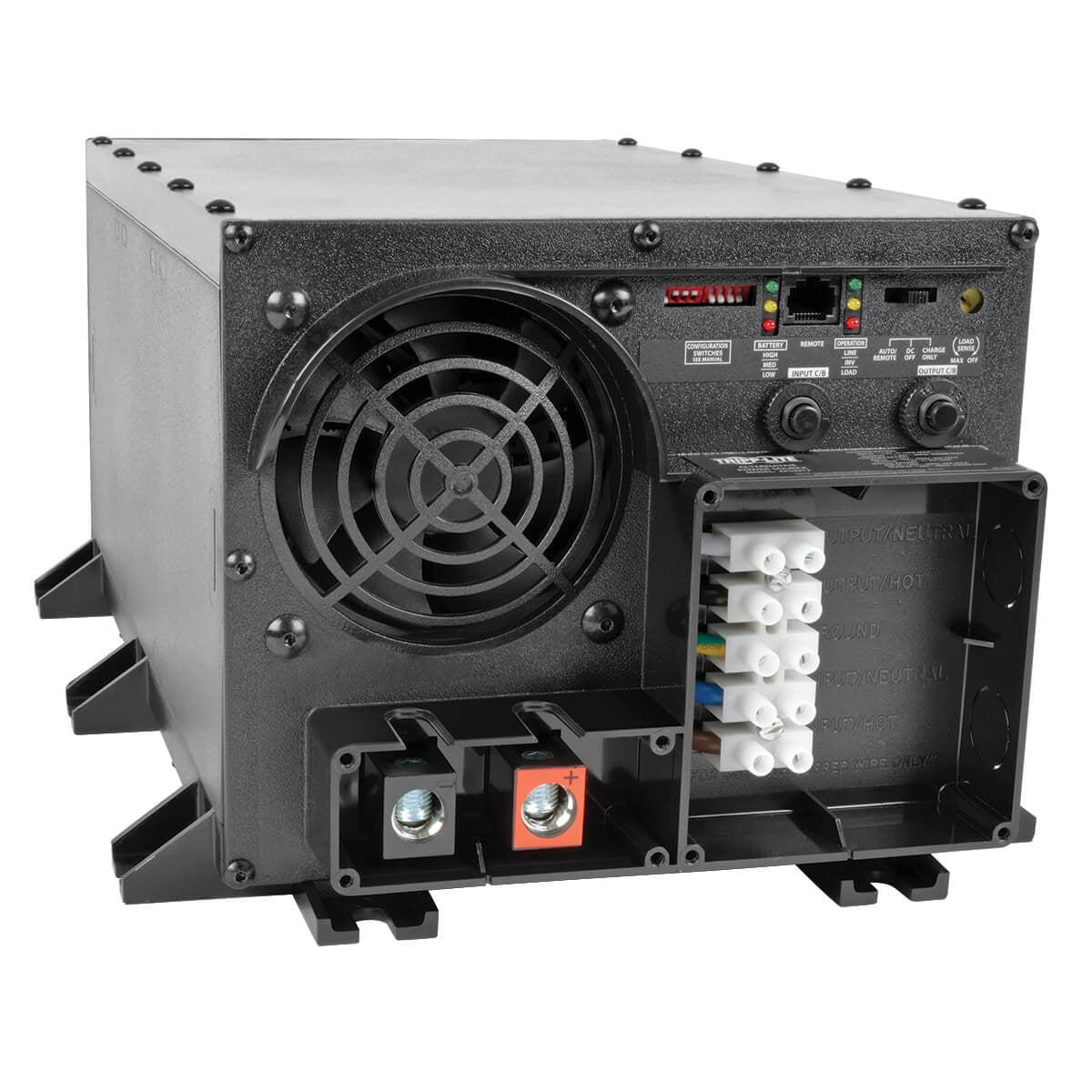

Tripp Lite Apsint2424 2400W Aps Int Series 24Vdc 230V Inverter/Charger With Auto-Transfer Switching, Hardwired

2400W APS INT Series 24VDC 230V Inverter/Charger with Auto-Transfer Switching, Hardwired

Tripp Lite APSINT2424 2400W APS INT Series 24VDC 230V Inverter/Charger with Auto-Transfer Switching, Hardwired. Purpose: Universal, Power supply type: Indoor, Input voltage: 24-230 V. Capacity: 2400 W. Product colour: Black. Width: 215.9 mm, Depth: 412.8 mm, Height: 184.2 mm. Package width: 373.4 mm, Package depth: 530.9 mm, Package height: 322.6 mm

The APSINT2424 2400W APS INT Series 24V DC 230V AC Inverter/Charger is a reliable power source for a wide variety of equipment ranging from power tools and pumps to portable lighting and computer equipment in heavy-load conditions. With no fumes, fuel or excess noise, it’s an excellent alternative to generator power.

The DC-to-AC inverter features an automatic line-to-battery transfer switch and integrated charging system that allow it to work as a vehicle inverter, standalone AC power source or extended-run UPS. It delivers 2400W of continuous power, 3600W up to one hour, or 4800W of peak power up to 10 seconds during equipment startup or cycling. An automatic overload detector, cooling fan and resettable AC circuit breakers protect the unit from damage.

Designed for easy installation in RVs, commercial and fleet vehicles, emergency vehicles and construction equipment, the APSINT2424 converts stored power from any 24V battery or automotive DC source to safe, stable, computer-grade AC power for unlimited runtime. When hardwired to an external 230V AC source, the unit keeps the user-supplied battery charged via a three-stage 30A charging system while simultaneously delivering AC power to connected equipment.

When used as a UPS, the APSINT2424 responds to blackouts and brownouts with an automatic, instantaneous transfer to battery-derived AC output. LEDs on the unit indicate AC/DC operational modes, overload status, DC voltage level, shutdown status and system fault status.

Reliable Power for Mobile, Emergency and Remote Sites
Generates safe, stable, computer-grade 230V AC power from 24V battery bank
Ideal for powering tools, saws, motors, pumps, portable lighting, appliances and computer equipment in heavy-load conditions
Designed for easy installation in RVs, commercial and fleet vehicles, emergency vehicles and construction equipment
Functions as a vehicle inverter, standalone AC power source or extended-run UPS
Unlimited runtime with variety of user-supplied batteries

Meets Normal and Peak Power Demands
2400W of continuous power
3600W of reserve power up to 1 hr.
4800W of peak power up to 10 sec. to accommodate surge power demands during equipment startup and cycling
Automatic overload detector, built-in cooling fan and resettable AC circuit breakers protect unit from damage
High-current DC input terminals for simple hardwired installation

Automatic Transfer Switching
Transfer relay switches to inverter power during blackout in 20 ms
3-position switch enables Auto, Charge Only or System Off mode
DIP switches configure high and low voltage auto-transfer

3-Stage 30A Battery Charger
Serves as battery charger when external 230V AC power is supplied and powering connected equipment
Protects battery from overcharging and overdischarging
Low-battery protection prevents excessive battery depletion
DIP switches configure wet/gel charging profiles

Optional Remote Control Capability
RJ45 communication port allows connection of optional remote control module, such as Tripp Lite’s APSRM4

Front-Panel LEDs
Indicate AC/DC operational modes, overload status, DC voltage level, shutdown status and system fault status

Rugged Polycarbonate Housing
Resists moisture, vibration and impact
Built-in mounting feet for installation on any rigid horizontal surface
