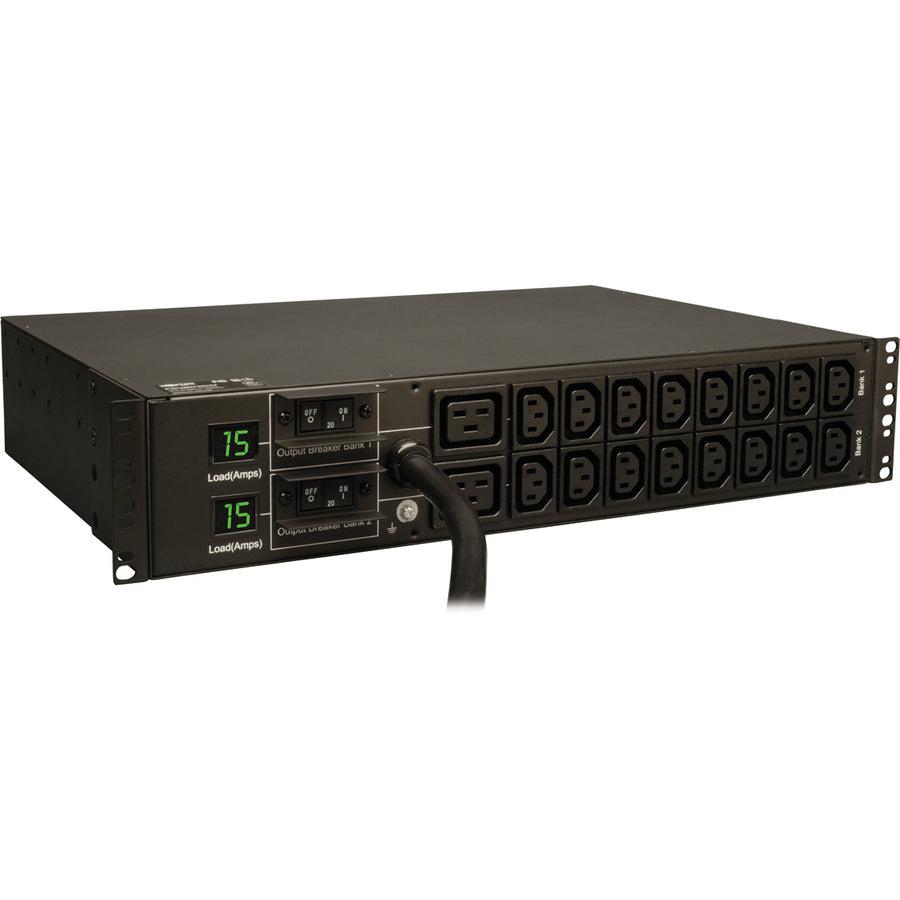

Tripp Lite 5.8kW Single-Phase Metered PDU, 208/240V Outlets (16 C13 & 2 C19), L6-30P, 12ft Cord, 2U Rack-Mount. PDU types: Metered, Rack capacity: 2U, Mounting: Horizontal. AC outlets quantity: 18 AC outlet(s), AC outlet types: C13 coupler, C19 coupler, Power plug: NEMA L6-30P. Cable length: 3.65 m, Certification: UL 60950-1 (USA), CSA (Canada), Class A (Emissions), NOM (Mexico). Nominal input voltage: 208-240 V, Maximum current: 30 A, AC input frequency: 50 - 60 Hz. Width: 444.5 mm, Depth: 317.5 mm, Dimensions (WxDxH): 444 x 318 x 88 mm

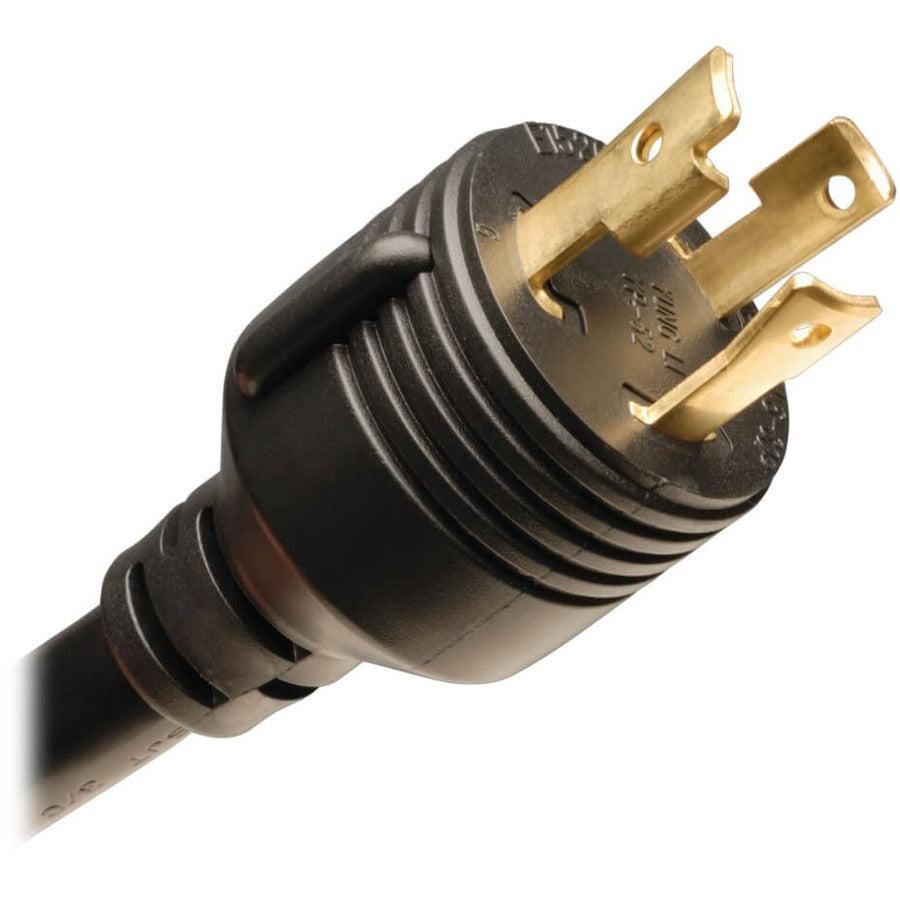

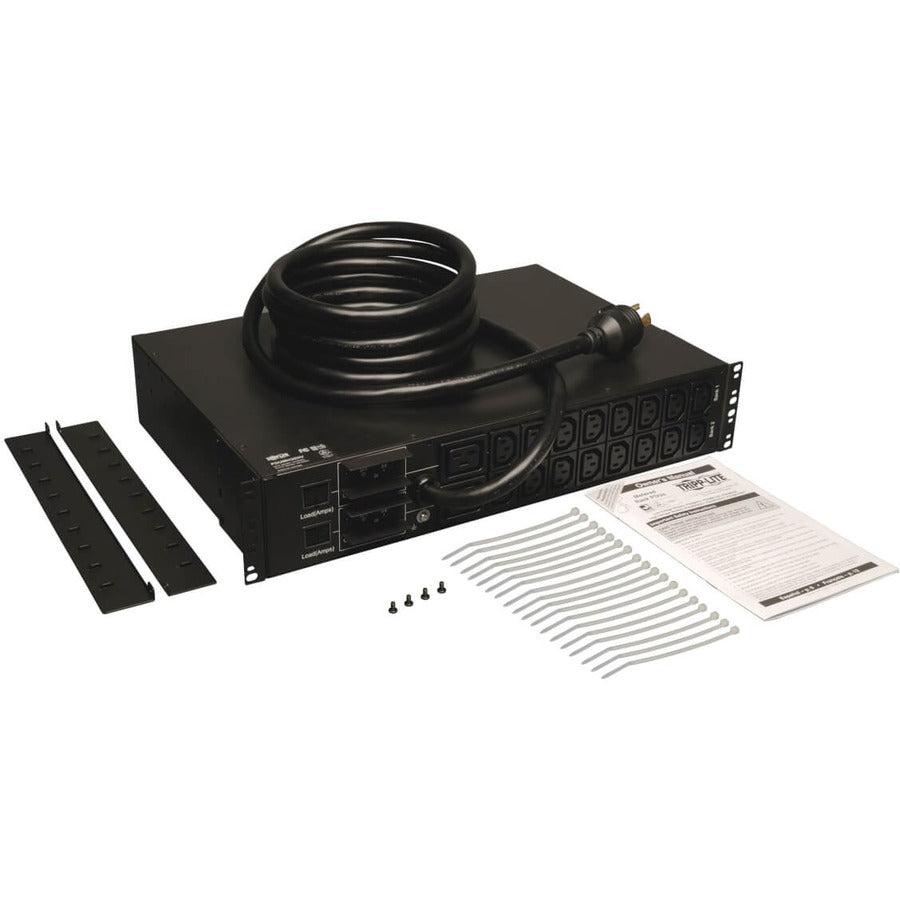

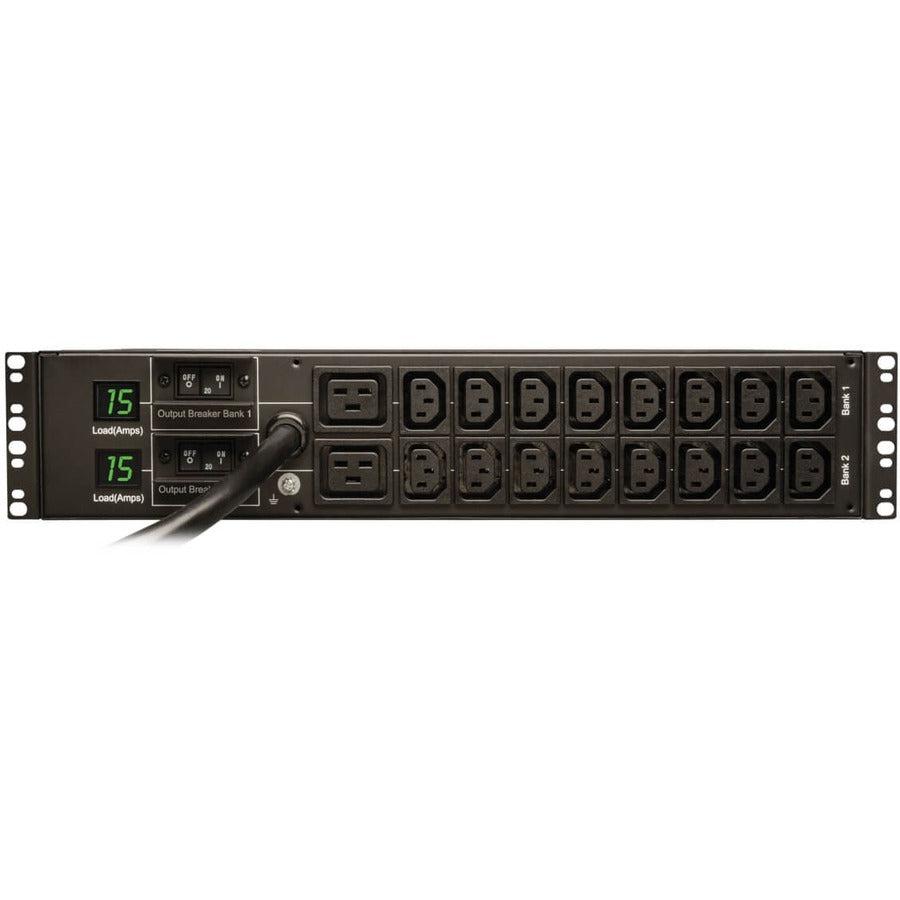

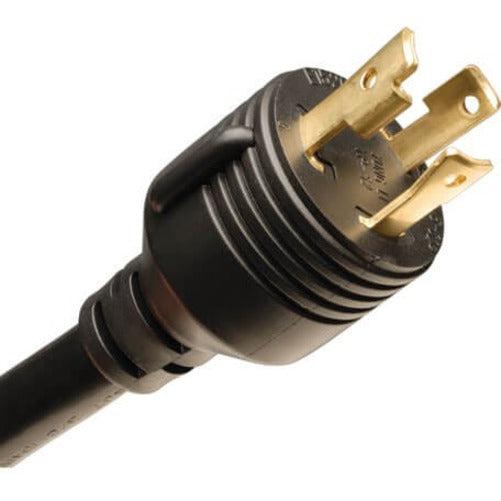

Tripp Lite single phase Metered PDU / Power Distribution Units offer real-time local reporting of load level in amps via built-in digital current metering. Enables visual monitoring of PDU output current to preserve proper output balance and prevent circuit overloads as additional equipment is added. Offers reliable rackmount multi-outlet power distribution from any protected UPS, generator or mains input power source. High quality design includes rugged all-metal housing and secure rackmount installation with included mounting accessories. - 30A single phase 208/240V Metered Power Distribution Unit / PDU (Agency derated to 24A continuous) - Set of two lighted meters report PDU output current in amps for each 9 outlet load bank - Attached NEMA L6-30P 30A 208/240V input plug and 12ft / 3.6m cord - 2U horizontal rackmount format installs in two rack spaces - 18 output receptacles (16 C13, 2 C19) - Outlets are arranged in two 9 outlet load banks, each with separate 20A breaker and current metering - Mounting flanges support installation in 2 and 4 post racks, with additional support for wall-mount and under-counter installation formats - Mounting ears are reversible for front or rear facing rackmount installation - Cord retention brackets keep vital equipment plugs connected - Grounding lug - TAA Compliant Version Available - Order Tripp Lite PDUMH30HVTAA
