Tripp Lite 5/5.8Kw Single-Phase 208/240V Basic Pdu, 38 Outlets (32 C13 And 6 C19), Nema L6-30P Input, 3.05 M (10-Ft.) Cord, 0U Vertical

5/5.8kW Single-Phase 208/240V Basic PDU, 38 Outlets (32 C13 and 6 C19), NEMA L6-30P Input, 3.05 m (10-ft.) Cord, 0U Vertical

Tripp Lite 5/5.8kW Single-Phase 208/240V Basic PDU, 38 Outlets (32 C13 and 6 C19), NEMA L6-30P Input, 3.05 m (10-ft.) Cord, 0U Vertical. PDU types: Basic, Rack capacity: 0U, Mounting: Vertical. AC outlets quantity: 38 AC outlet(s), AC outlet types: C13 coupler, C19 coupler, Power plug: NEMA L6-30P. Cable length: 3.05 m, Certification: UL60950-1 (USA, Canada), NOM (Mexico). Nominal input voltage: 200-240 V, Maximum current: 30 A, AC input frequency: 50 - 60 Hz. Width: 88.9 mm, Depth: 57.2 mm, Dimensions (WxDxH): 57 x 95 x 1620 mm

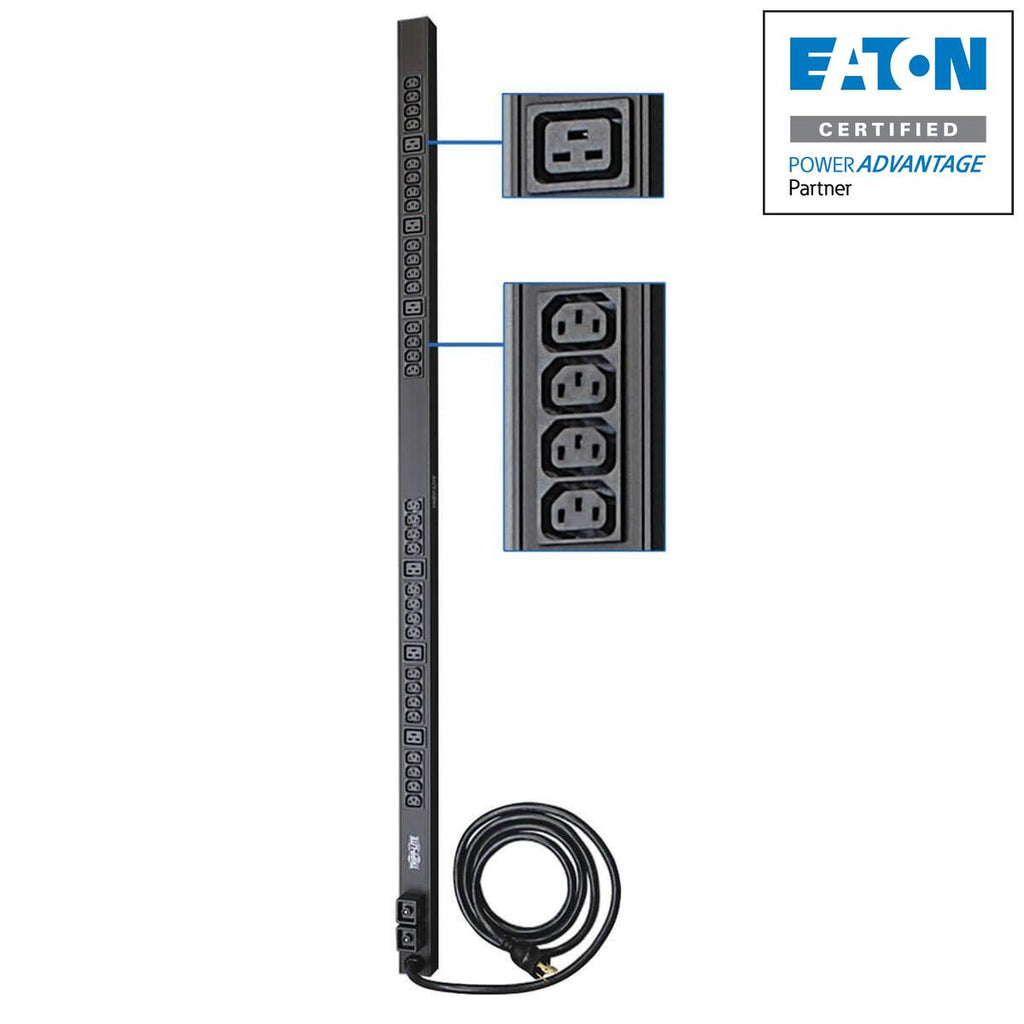

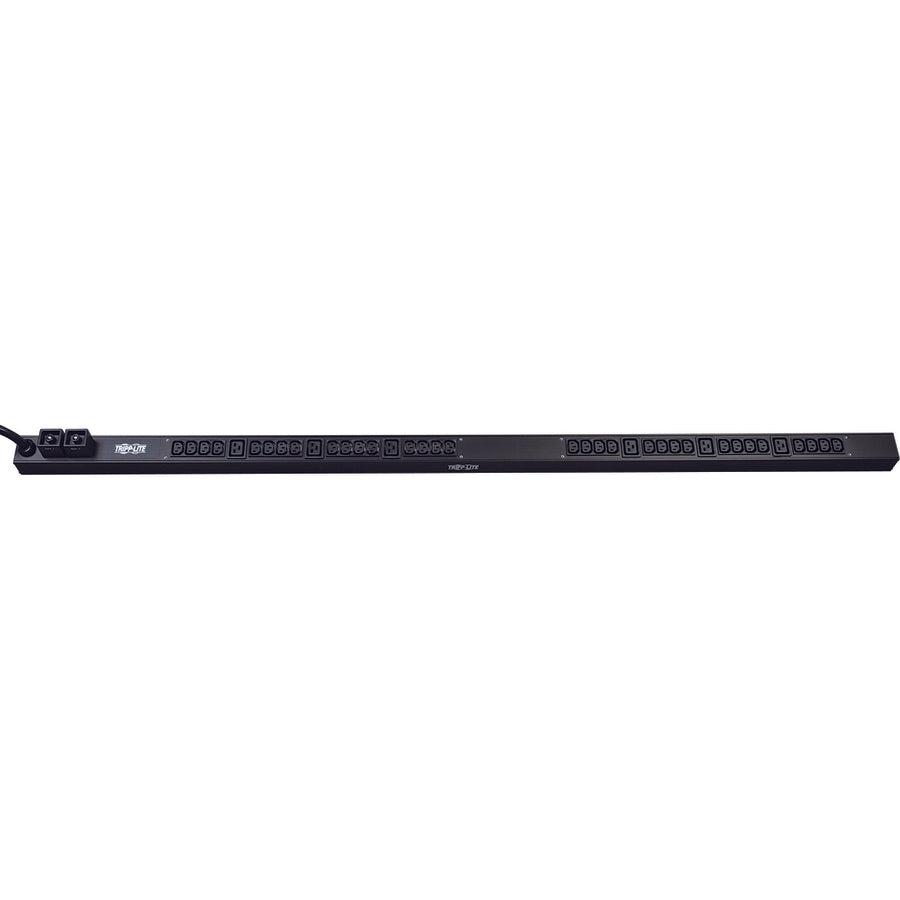

The PDUV30HV 5/5.8kW Single-Phase 208/240V Basic PDU is a versatile no-frills unit for data centers, server rooms and network wiring closets. Perfectly suited for high-density IT environments, the PDUV30HV features 38 total outlets—32 C13 and 6 C19. The NEMA L6-30P input plug with 10-foot (3 m) cord connects to your facility’s compatible AC power source, generator or protected UPS to distribute power to connected equipment.

The switchless design prevents an accidental shutdown, which could lead to costly downtime. The 63.75-inch all-metal housing supports 0U vertical mounting in EIA-standard 19-inch racks using the included hardware or toolless 0U mounting using the included buttons. You can also mount the PDUV30HV under a counter with the included brackets and user-supplied hardware. Included C20 and C14 plug-lock inserts attach to the components’ plugs to keep them connected and continuously powered.
- NEMA L6-30P input with 10 ft. (3 m) power cord
- 38 total outlets—32 C13 and 6 C19
- Switchless design prevents accidental shutdown
- 1.61 m (63.75) in. all-metal housing
- Supports toolless 0U vertical mounting


- PDUV30HV 5/5.8kW Single-Phase 208/240V Basic PDU
- (38) Plug-lock inserts
- Spare installation buttons, 2.9 mm
- Spare installation buttons, 4.6 mm
- Mounting hardware
- Owner’s manual

Reliable Single-Phase 30A 208/240V Power Distribution
- Versatile no-frills PDU for data centers, server rooms and network wiring closets
- 38 total outlets—32 C13 and 6 C19
- NEMA L6-30P input plug with 10 ft. (3.05 m) power cord
- Included C20 and C14 plug-lock inserts keep connected plugs secure and continuously powered
- Dual 15A circuit breakers protect outlets against overloads
- Switchless design prevents accidental shutdowns and costly downtime
Versatile Installation Options
- 1.61 m (63.75 in.) all-metal housing
- Supports toolless 0U vertical mounting in EIA-standard 19 in. racks
- Also supports 0U mounting using included hardware
- Also mounts under a counter or workbench using included brackets and user-supplied hardware
