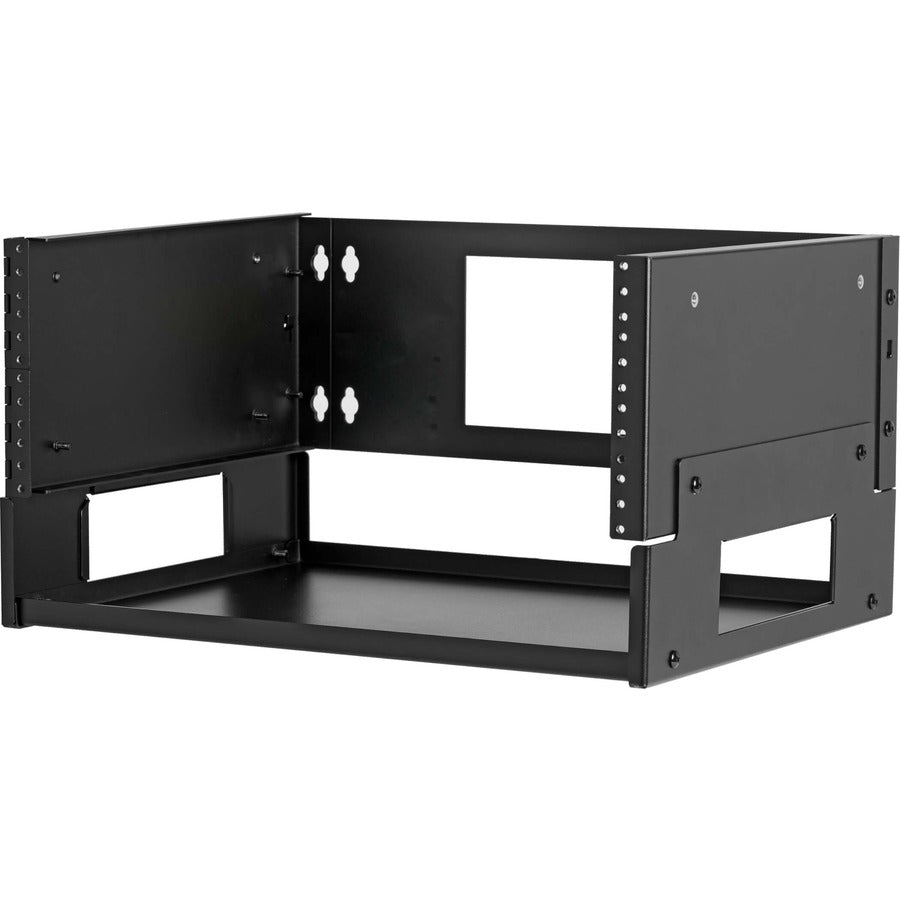

Tripp Lite 4U Wall-Mount Bracket with Shelf for Small Switches and Patch Panels, Hinged
Features | Wall-Mount Bracket Is the Ideal Alternative to a Full-Size Rack Cabinet
If you don't have enough equipment to justify the purchase of a full-size rack or you don't have enough space for one, this SmartRack® bracket is the ideal alternative for your home office or small business. Made from heavy-duty laser-cut 14-gauge cold-rolled steel with a durable black powder-coated finish, this 4U wall-mount bracket attaches to the wall of your back office or closet with the included mounting screws.
Hinged Bracket Supports EIA-Standard 19 in. Rack Equipment

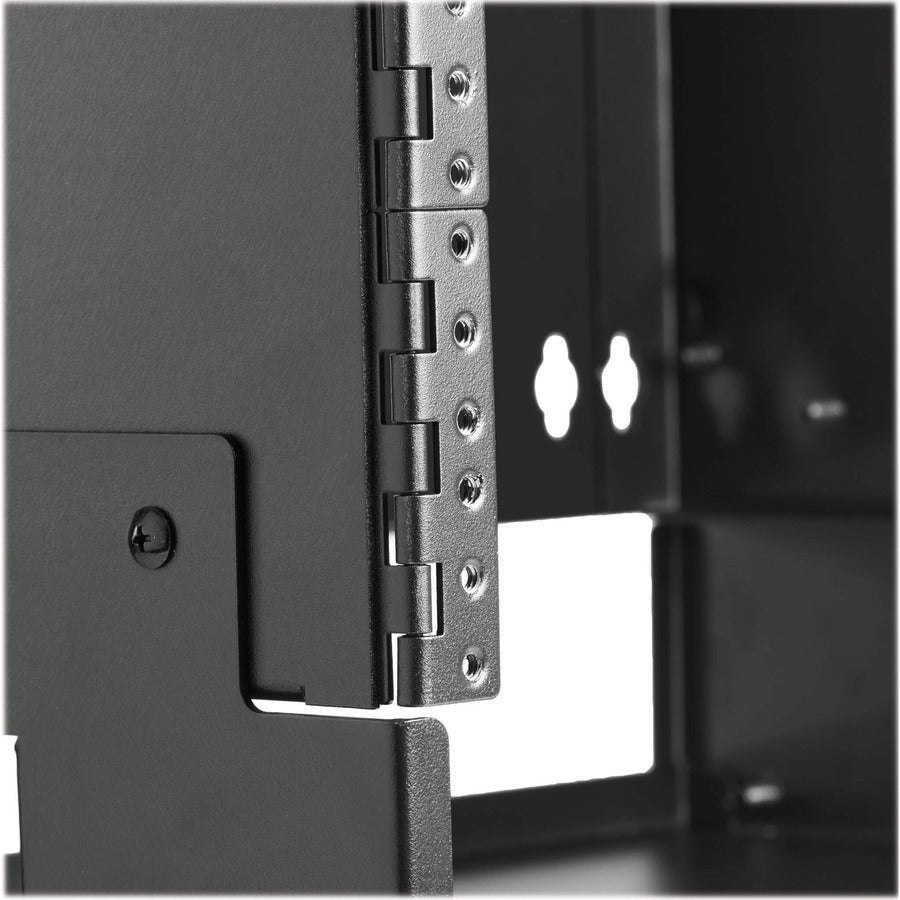

The SRWO4UBRKTSHELF houses 4U of compatible 19-inch rack components, including EIA-compliant switches and patch panels by any manufacturer, up to 14.75 inches deep. The 4U wall-mount bracket is hinged to allow open, unrestricted access to equipment and cabling from either the left or right side. Maximum load capacity is 150 pounds (68 kilograms).
Rear Cutout Eases Cable Installations

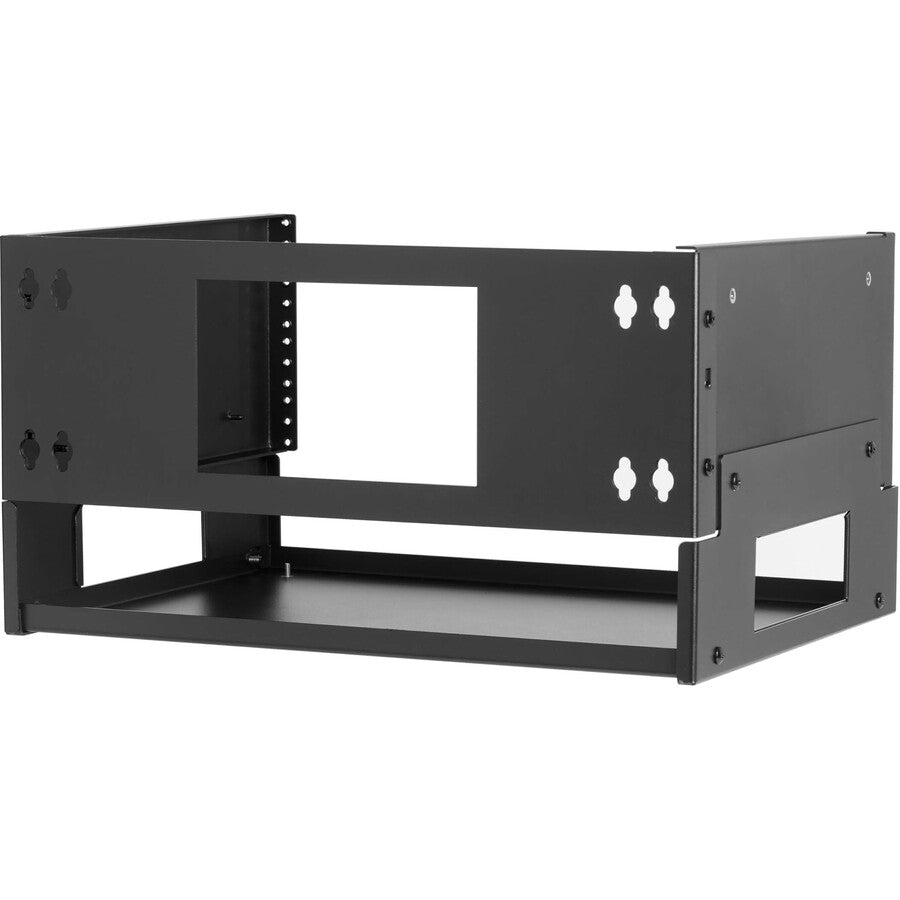

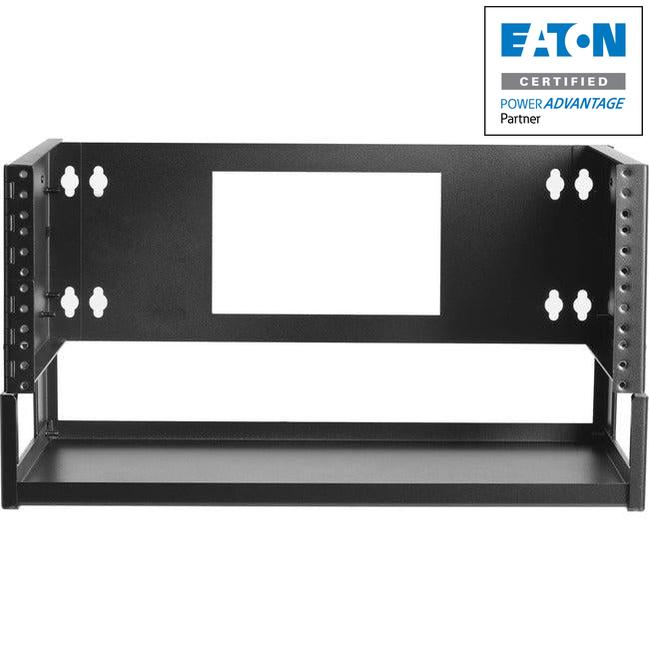

The 4U bracket features an open cutout in the rear that allows for cable feeds through the wall to streamline installations and reduce cable clutter. The laser-cut metal bracket's surfaces and edges are smooth to reduce wear on cable jackets and patch panel equipment.
Space-Saving Shelf Allows Easy Storage of Non-Rack Components

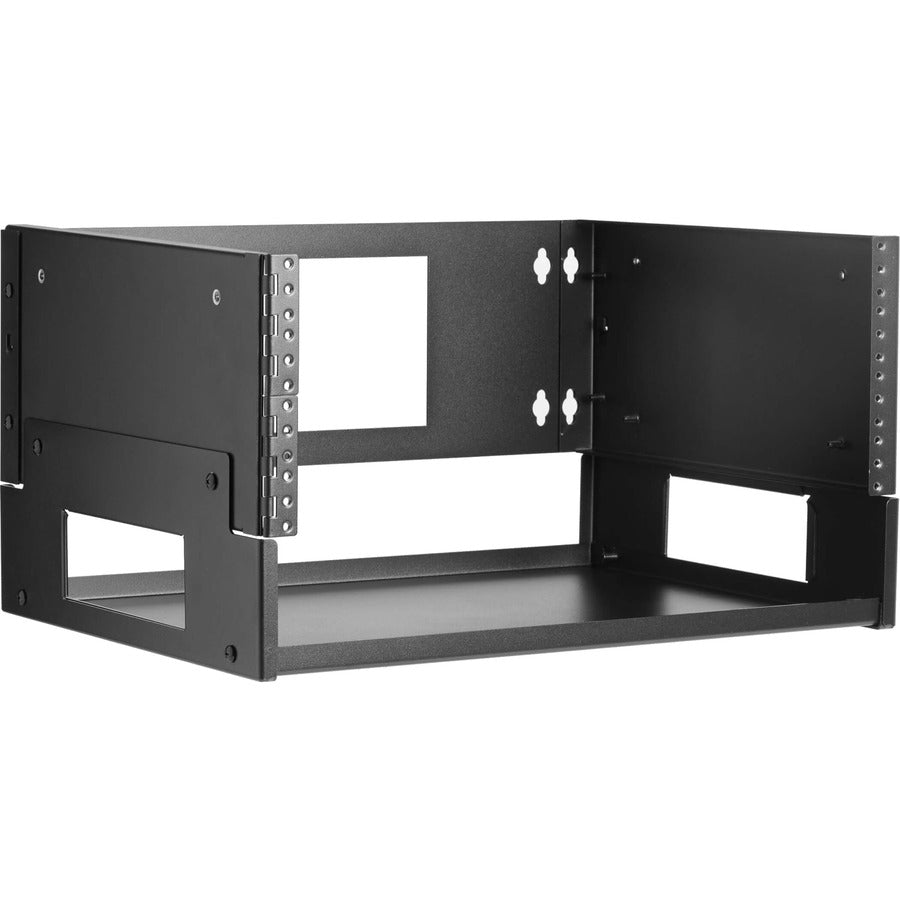

Install the steel shelf at the top or bottom of the bracket to hold equipment that is not rack-mountable, including Ethernet routers, wireless access points, tower UPS systems and mini switches. No separate rack-mount shelf accessory is needed.
Easy Mounting with the Included Hardware

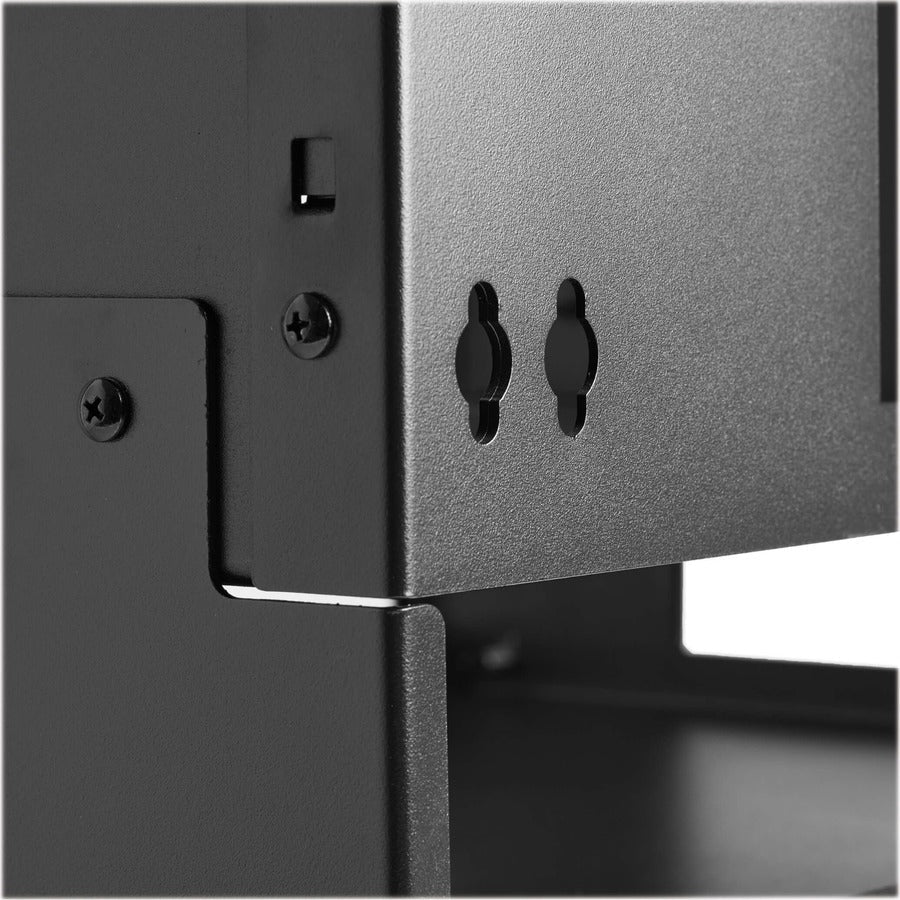

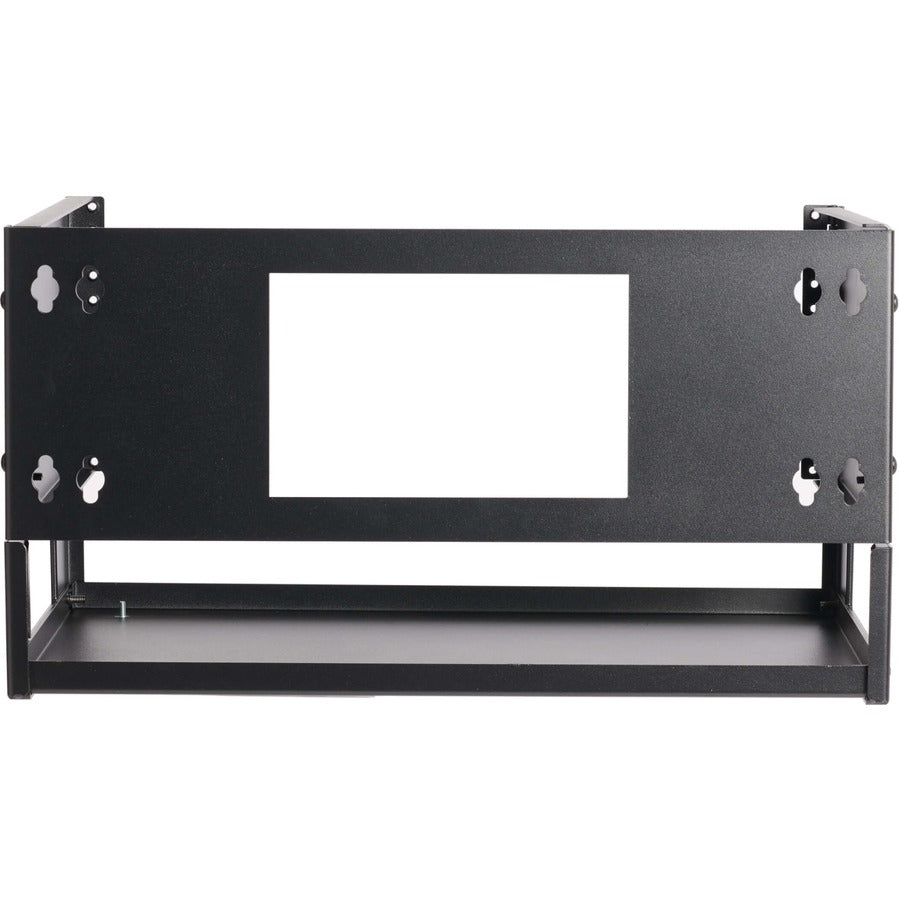

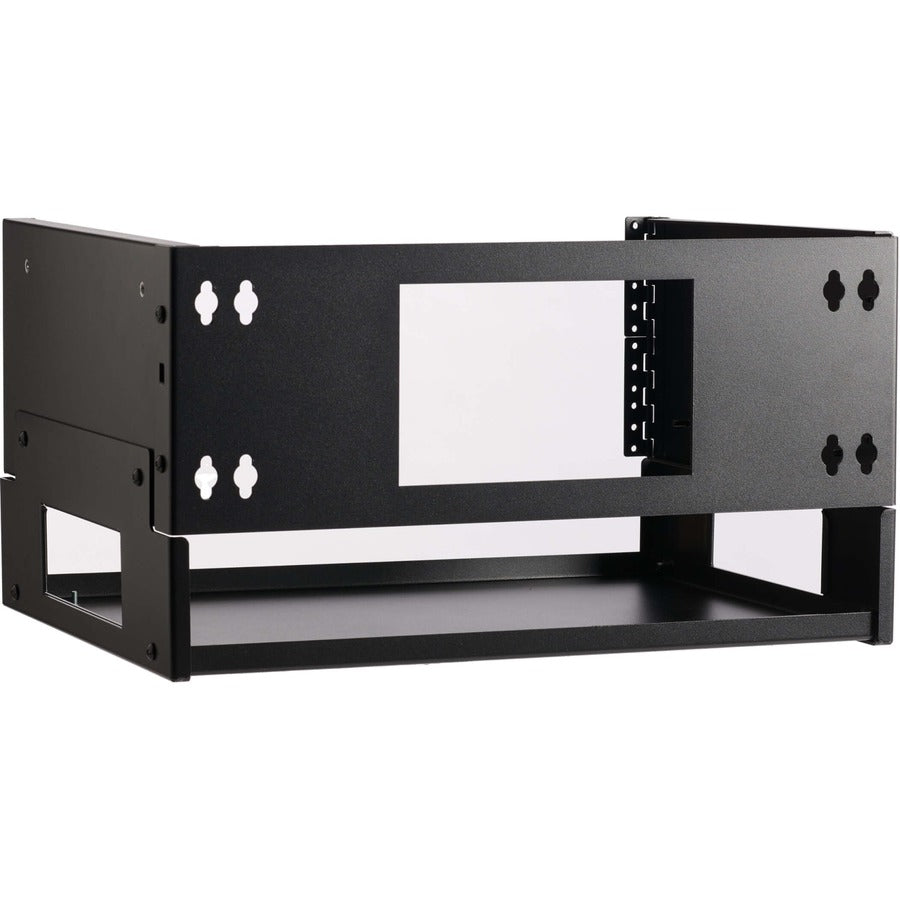

Rear keyhole mounting slots are 16 inches apart to align with standard wall-stud placement. Stamped horizontal reinforcement ribs on the back of the bracket provide extra stability. The 4U wall-mount bracket comes with 12-24 mounting screws for installing the bracket and rack equipment.
Product Type: Rack Shelf
Environmentally Friendly: Yes
Environmental Certification: REACH
Static/Stationary Weight Capacity: 149.91 lb
Product Color: Black
Product Material: Cold Rolled Steel
Rack Width: 19"
Rack Height: 4U
Brand Name: Tripp Lite
Form Factor: Wall Mountable
Manufacturer: Tripp Lite by Eaton
Product Model: SRWO4UBRKTSHELF
Product Name: 4U Wall-Mount Bracket with Shelf for Small Switches and Patch Panels, Hinged
Product Line: SmartRack
Manufacturer Part Number: SRWO4UBRKTSHELF
Manufacturer Website Address: http://www.tripplite.com

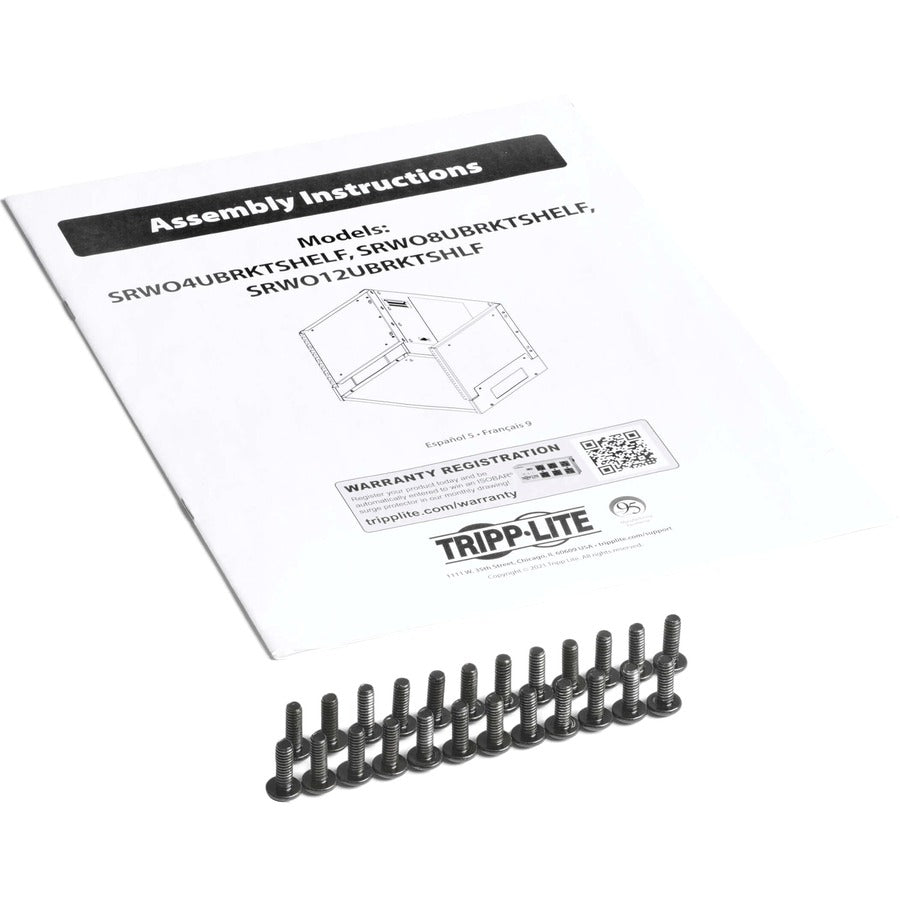

Package Contents:
- 4U Wall-Mount Bracket with Shelf for Small Switches and Patch Panels, Hinged
- 24 x 12-24 Mounting Screws
- Instruction Sheet
Limited Warranty: 5 Year
Weight (Approximate): 19.40 lb
