Description

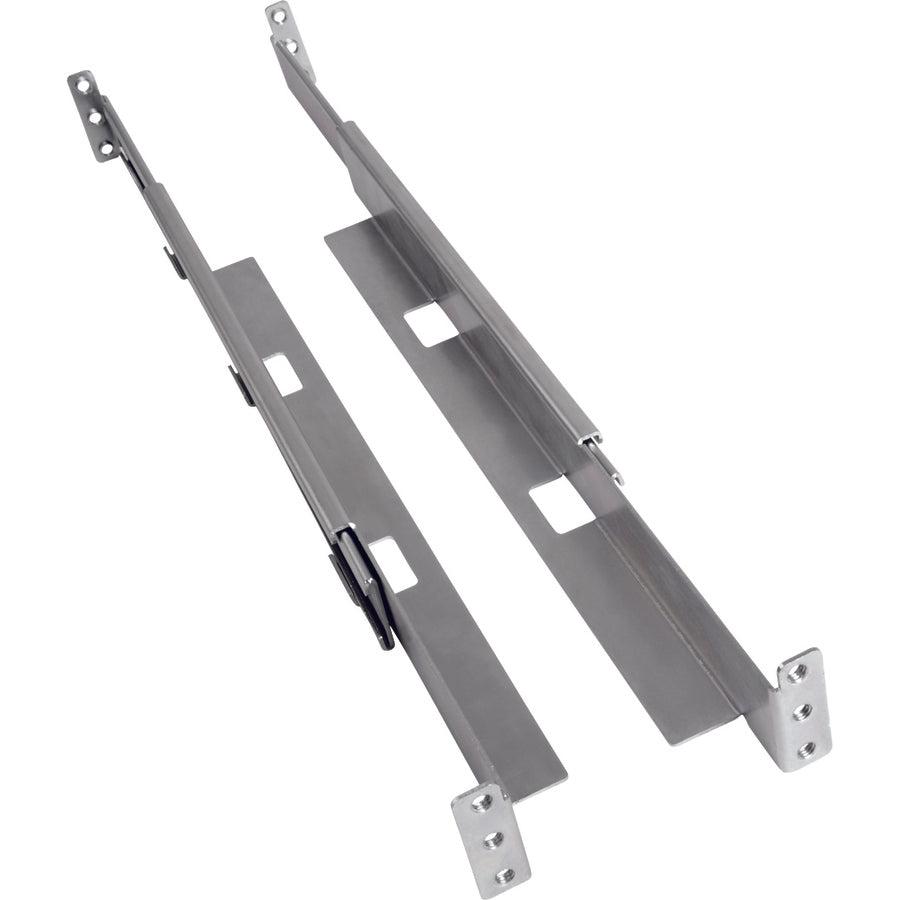

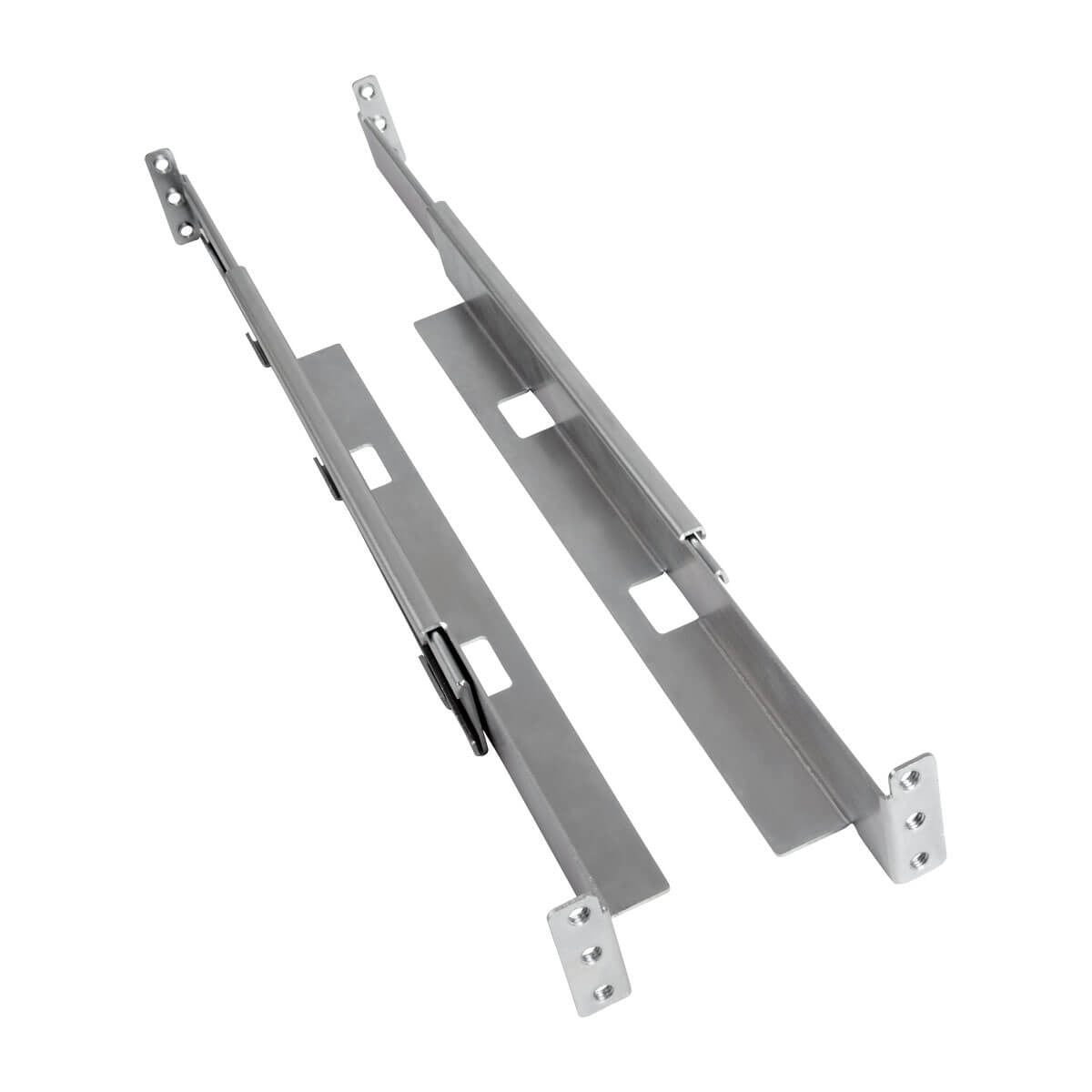

4-Post 1U Universal Adjustable Rack-Mount Shelf Kit for Wall-Mount Racks
Tripp Lite 4POSTRAILKITWM 4-Post 1U Universal Adjustable Rack-Mount Shelf Kit for Wall-Mount Racks. Type: Mounting kit, Product colour: Silver, Housing material: Steel. Width: 37.8 mm, Depth: 381 mm, Depth (max): 59.7 cm. Package width: 54.9 mm, Package depth: 385.1 mm, Package height: 50 mm. Master (outer) case width: 270 mm, Master (outer) case length: 405.1 mm, Master (outer) case height: 130 mm

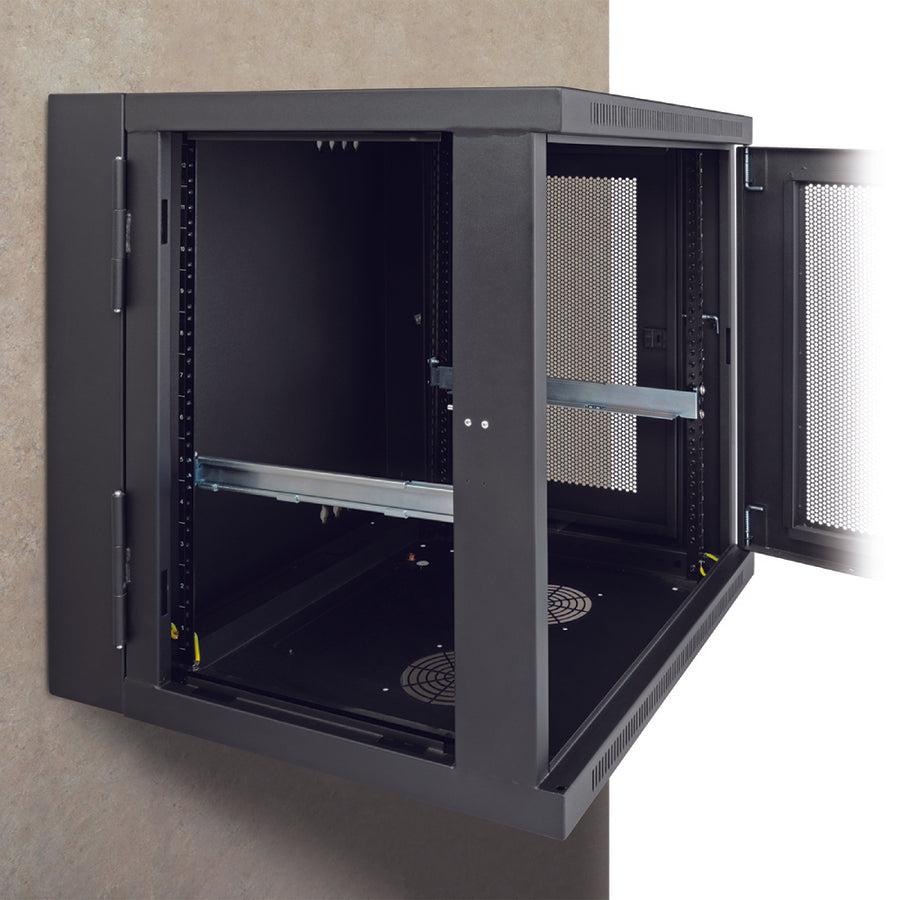

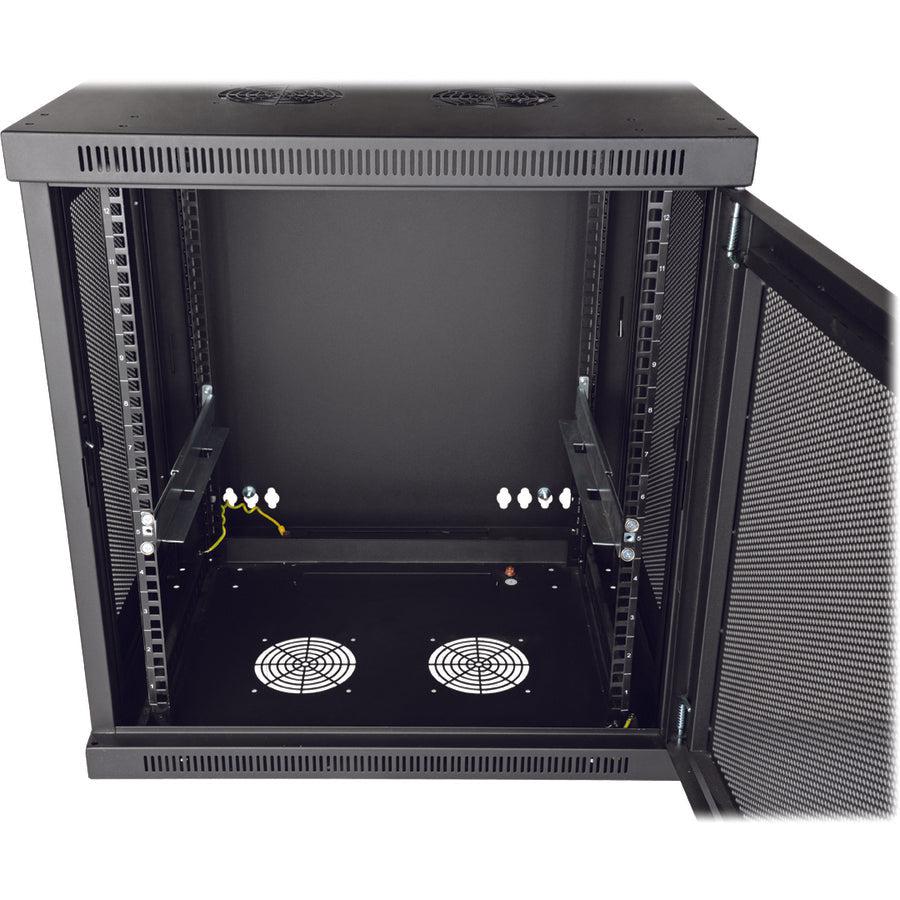

The 4POSTRAILKITWM wall-mount rack shelf kit provides extra support for heavy UPS systems, PDUs or other rack-mount components that weigh 150 lbs (68 kgs) or less. It includes two adjustable mounting rails that attach to the mounting rails of your EIA-standard 19-inch wall-mount enclosure. Constructed using cold-rolled steel with a durable powder-coated finish, this heavy-duty rack rail kit comes with mounting hardware compatible with square-hole racks.
The rails offer front-to-rear support for equipment with 17.5-inch-wide rectangular chassis. They also adjust to any setting between 14.5 and 23.5 inches and leave the rack's front and rear mounting holes free to attach equipment. Setup is hassle-free and saves money and time on installation. Threaded-hole rack installation is also supported with user-supplied mounting hardware.
Additional Rack-Mount Shelf for Your Wall-Mount Rack 1U rack rail kit with maximum load capacity of 150 lbs (68 kgs) Compatible with 19 in. wall-mount open frame racks and enclosures Expandable support rails offer front-to-rear support for equipment with 17.5 in. rectangular chassis Rails adjust to any setting between 14.5 and 23.5 in. Leaves front and rear mounting holes free for equipment
Heavy-Duty Construction with Versatile Mounting Options Cold-rolled steel construction with powder-coated finish designed for long life Mounting hardware included for quick installation in square-hole rack Threaded-hole rack installation supported with user-supplied hardware
General Information
Manufacturer
Tripp Lite by Eaton
Manufacturer Part Number
4POSTRAILKITWM
Manufacturer Website Address
https://tripplite.eaton.com/
Brand Name
Tripp Lite by Eaton
Product Model
4POSTRAILKITWM
Product Name
4-Post 1U Universal Adjustable Rack-Mount Shelf Kit for Wall-Mount Racks
Product Type
Rack Mount
UPC
037332206374
Physical Characteristics
Color Family
Silver
Product Color
Silver
Height
1.7"
Width
1.5"
Depth
23.5"
Weight (Approximate)
2.60 lb
Miscellaneous
Package Contents
Left Rail Piece, Short
Left Rail Piece, Long
Right Rail Piece, Short
Left Rail Piece, Long
12 x M6 Screws
12 x M6 Washers
Owner's Manual
Warranty
Limited Warranty
5 Year
