Tripp Lite 4-Port Vga/Svga Video Splitter With Signal Booster, High Resolution Video, 350Mhz, (Hd15 M/4Xf)

4-Port VGA/SVGA Video Splitter with Signal Booster, High Resolution Video, 350MHz, (HD15 M/4xF)

Tripp Lite 4-Port VGA/SVGA Video Splitter with Signal Booster, High Resolution Video, 350MHz, (HD15 M/4xF). Video port type: VGA, Video out: 4x VGA, Connector(s): HD15 (MALE), HD15 (FEMALE) (X4). Maximum resolution: 2048 x 1536 pixels, Product colour: Black, Housing material: Metal. Package width: 144.8 mm, Package depth: 251.5 mm, Package height: 61 mm. Master (outer) case width: 266.7 mm, Master (outer) case length: 309.9 mm, Master (outer) case height: 320 mm

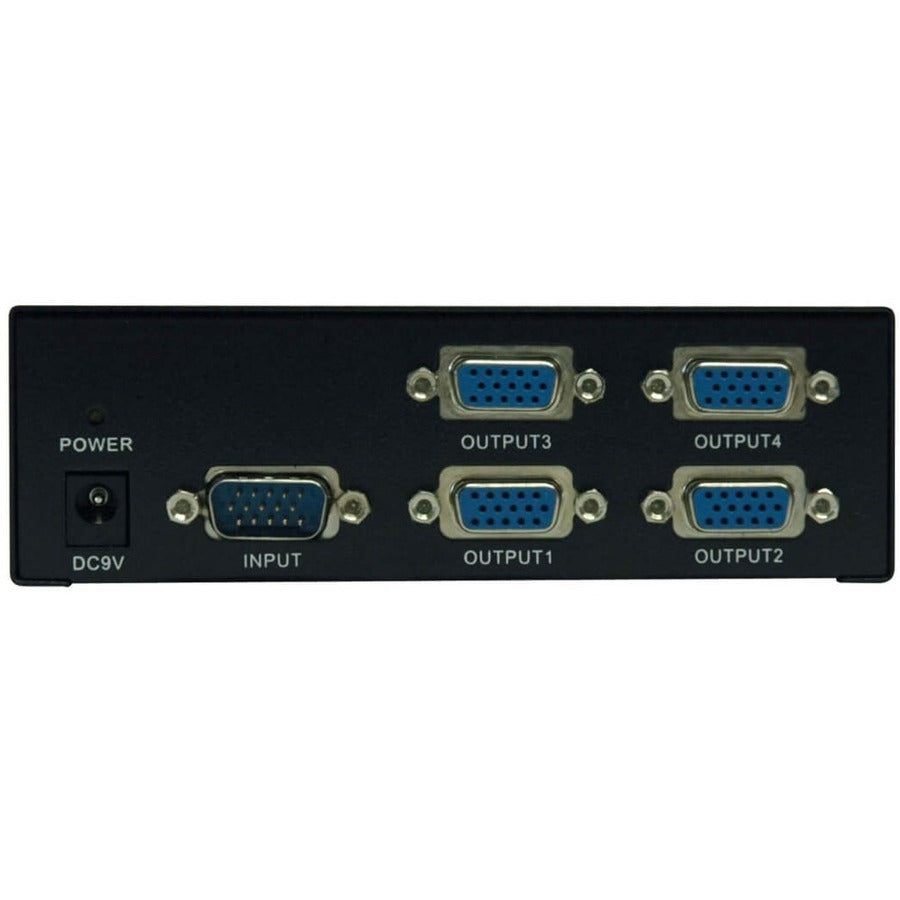

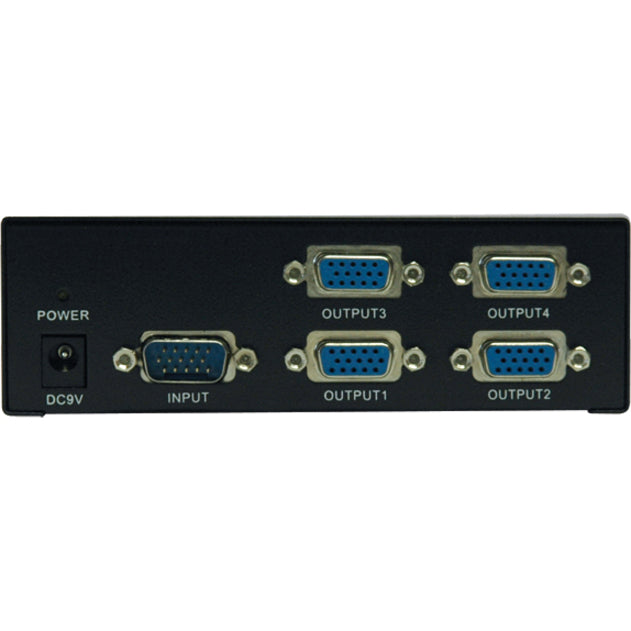

Tripp Lite's 4-Port VGA/SVGA Video Splitter provides bandwidth support at 350MHZ, allowing simultaneous display of video on up to 4 monitors. In addition, a built-in booster allows a video signal (up to 2048 x 1536 @ 60Hz) to be transmitted up to 210 ft. from the source. Four standard HD15 female ports are used to connect the monitors, while a fifth HD15 male port is used to connect the CPU. The splitter can be located up to 25 ft. from the connected computer, and up to 185 ft. from the connected monitors. The number of connected monitors can be expanded by cascading up to 3 levels of B114-004-R splitters together.
- Simultaneously display video on up to 4 VGA/SVGA monitors
- Ideal for video presentations or sharing information with multiple users
- A built-in booster allows a video signal (up to 2048 x 1536 @ 60Hz) to be transmitted up to 210 ft. from the source
- The splitter can be located up to 25 ft. from the connected computer, and up to 185 ft. from the connected monitors
- 350Mhz Bandwidth Support
- Cascade up to 3 levels of B114-004-R splitters together to increase the number of connected monitors
- Rugged, fully shielded metal housing
