| Product Type: Signal Splitter |
| Environmentally Friendly: Yes |
| Environmental Certification: REACH |
| Product Material: Metal |
| Brand Name: Tripp Lite |
| Manufacturer: Tripp Lite by Eaton |
| Product Model: B118-004-UHDINT |
| Product Name: 4-Port HDMI Splitter - UHD 4K, International Plug Adapters |
| Manufacturer Part Number: B118-004-UHDINT |
| Manufacturer Website Address: http://www.tripplite.com |

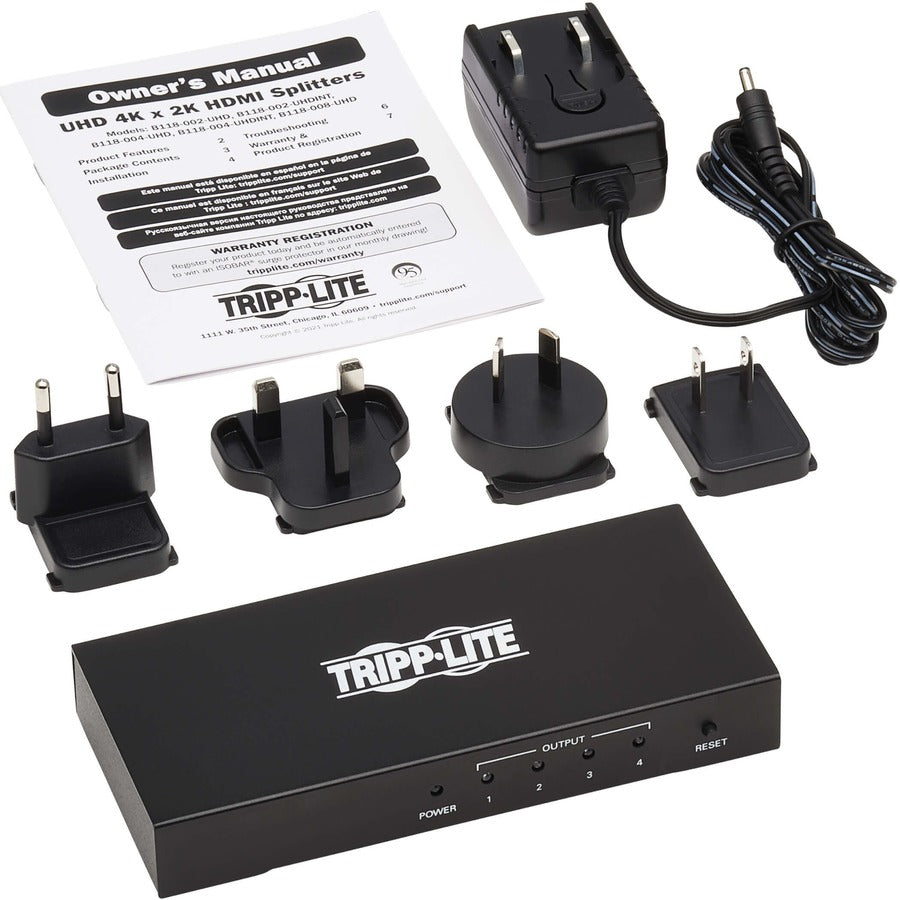

Package Contents:
- 4-Port HDMI Splitter - UHD 4K, International Plug Adapters
- External Power Supply (Input: 100-240V, 50/60 Hz, 0.4A; Output: 5V 2A)
- 4 x International plug adapters (North America, Europe, U.K., Australia)
- Owner's Manual
|
| Limited Warranty: 3 Year |
| Weight (Approximate): 9.60 oz |
| Country Of Origin: Vietnam |
Tripp Lite 4-Port HDMI Splitter - UHD 4K, International Plug Adapters
Features | 1x4 HDMI Splitter Transmits 4K Video + Audio to 4 HDMI Displays at the Same Time
Recommended for home theaters or short-distance digital signage applications in classrooms, offices, restaurants, bars, hotels and trade shows, this Ultra HD splitter is quick and easy to install. It connects to an HDMI source device, such as a laptop, media server or Blu-ray player, and transmits a 4K audio/video signal to four HDMI monitors, projectors or televisions simultaneously. You can also cascade up to three levels of splitters to send the same 4K signal to as many as 64 displays.
Transmits Crystal-Clear 4K Video and Multi-Channel Audio up to 40 ft. (12 m)
The B118-004-UHDINT supports Ultra HD video resolutions up to 3840 x 2160 at 30 Hz with 36-bit Deep Color (12 bits per channel). Place the splitter up to 16.4 feet (5 meters) from an HDMI source and up to 23 feet (7 meters) from as many as four connected monitors for a maximum distance of approximately 40 feet (12 meters) from source to display. The B118-004-UHDINT also supports DTS-HD, Dolby TrueHD, Dolby Digital Plus and LPCM 7.1-channel surround sound.
Also Compatible with DVI Video Sources and Displays
To avoid an expensive upgrade to HDMI equipment, you can connect legacy DVI-D single-link sources and displays to the B118-004-UHDINT by adding an HDMI-to-DVI adapter, such as Tripp Lite's P566-Series (sold separately), to your application. Note: You will be able to transmit video only - no audio. Resolutions will be limited to those supported by the adapter.
Ready to Use Right Out of the Package
The plug-and-play HDMI splitter requires no software to download and install. Connect the HDMI input to the source and the four HDMI outputs to displays with user-supplied HDMI cables, such as Tripp Lite's P568-Series (sold separately). The included external power supply comes with four international plug adapters that allow you to use the B118-004-UHDINT almost anywhere in the world.
System Requirements
- Source device with HDMI output (media server, Blu-ray player, laptop/computer)
- Display devices with HDMI input (HDTV, projector, monitor)
- Will work with DVI-D single-link sources and displays when connected to an HDMI-to-DVI adapter
- Plug-and-play operation with no software required for easy, immediate installation
- Cascade up to 3 levels of splitters to expand the number of connected displays to 64
- Supports DTS-HD, Dolby TrueHD, Dolby Digital Plus and LPCM 7.1-channel surround sound
- Supports UHD resolutions up to 4K @ 30 Hz for crystal-clear video transmission
