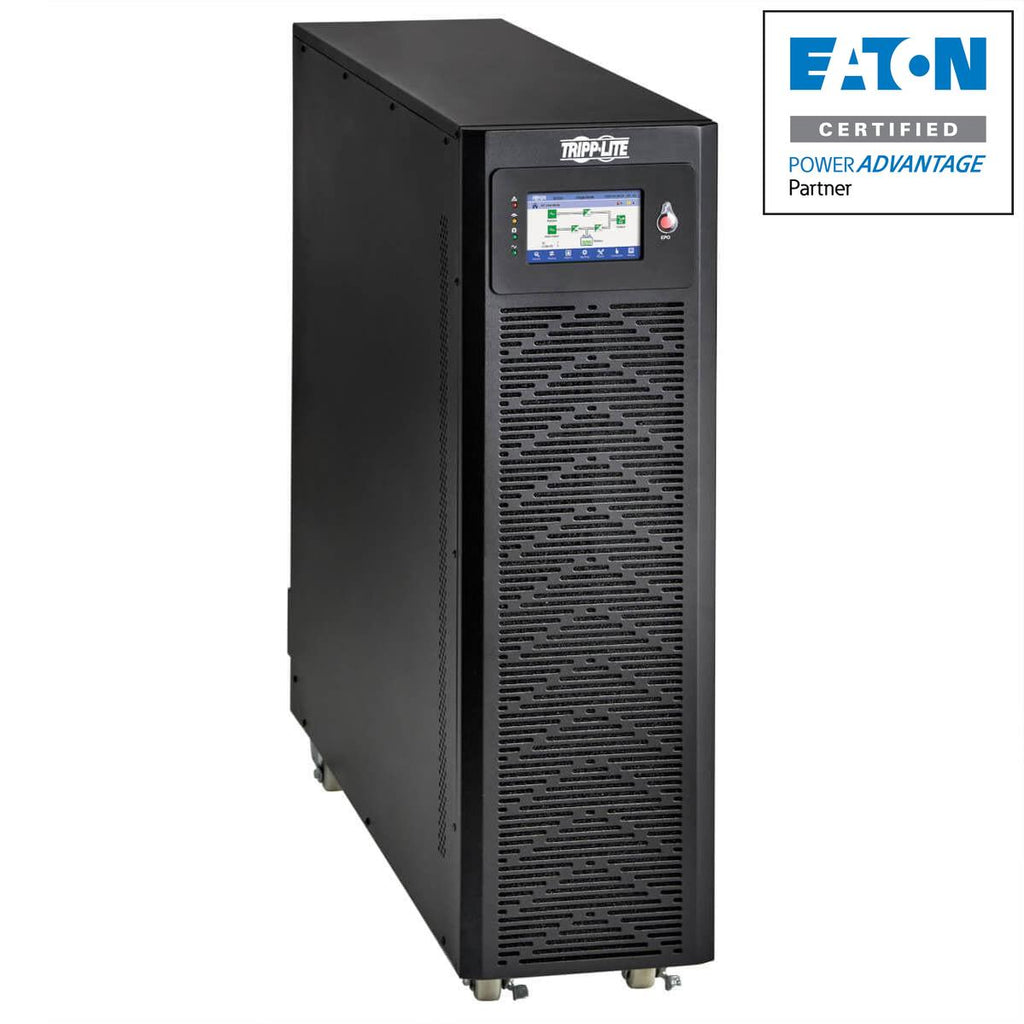

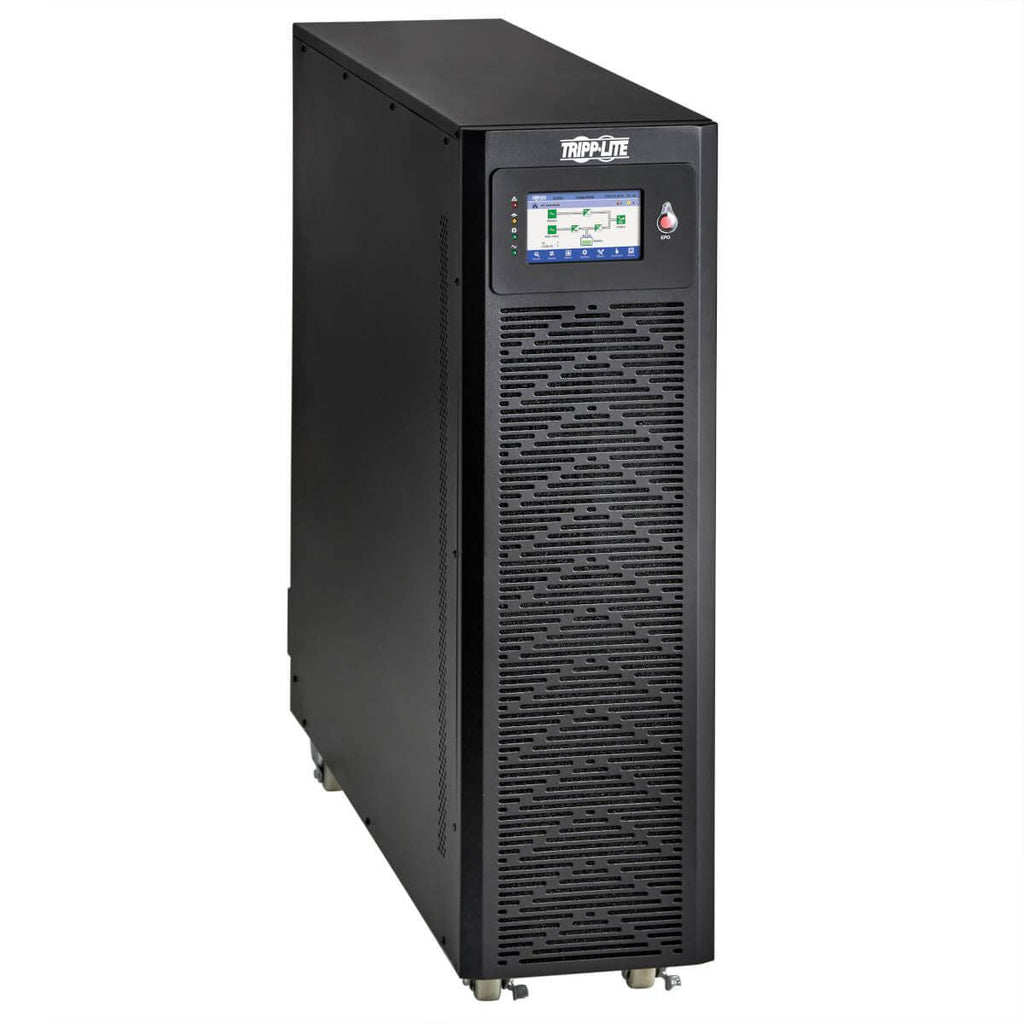

This Tripp Lite 3-Phase 20kVA UPS is perfect for enterprise IT managers and data center professionals who need premium double conversion UPS protection for mission-critical infrastructure. Our SmartOnline solution delivers:
-
Enterprise UPS solutions providing continuous power conditioning for large-scale data centers and critical operations
-
3-Phase power distribution unit capabilities supporting high-capacity installations with flexible voltage configurations
-
Smart UPS enterprise technology delivering Unity Power Factor for maximum efficiency and load optimization
-
Mission critical UPS reliability with customizable battery configurations to meet specific operational requirements
Key Features
-
True double conversion topology ensuring continuous power conditioning and zero transfer time protection
-
Unity Power Factor technology delivering full 20kW output capacity for maximum efficiency and modern IT load support
- Compatible with intelligent power distribution unit configurations for comprehensive power management
- Consistent data center UPS performance maintaining clean, stable power under all operating conditions
-
No internal batteries UPS design allowing customizable external battery solutions tailored to specific runtime requirements
Technical Specifications
| Manufacturer |
Tripp Lite |
| Model Number |
S3M20K-NIB |
| Series |
SmartOnline |
| Type |
3-Phase Double Conversion UPS |
| Capacity (VA) |
20,000 VA (20 kVA) |
| Capacity (Watts) |
20,000 W (20 kW) |
| Power Factor |
Unity Power Factor 1.0 |
| Technology |
True Online Double Conversion |
| Input Voltage |
208V / 220V / 120V / 127V |
| Output Voltage |
208V / 220V / 120V / 127V (configurable) |
| Phase Configuration |
3-Phase Input / 3-Phase Output |
| Input Frequency |
50/60 Hz ± 5 Hz |
| Output Frequency |
50/60 Hz ± 0.1 Hz |
| Transfer Time |
Zero (continuous online operation) |
| Efficiency |
Up to 96% (ECO mode) |
| Battery Configuration |
No Internal Batteries (External Required) |
| Battery Type |
External VRLA or Lithium-ion (optional) |
| Runtime |
Configurable based on external battery capacity |

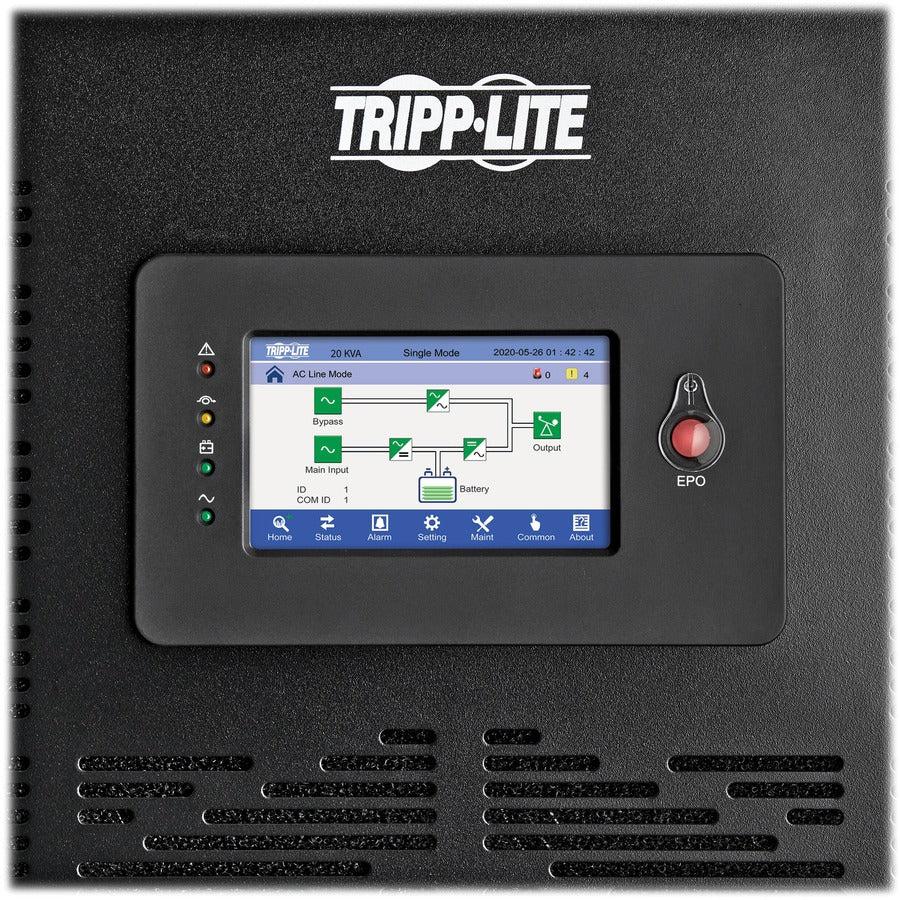

| Display |
LCD display with comprehensive status monitoring |
| Communication Ports |
USB, RS232, SNMP (Ethernet) |
| Network Management |
PowerAlert Network Management System |
| Operating Temperature |
32°F to 104°F (0°C to 40°C) |
| Storage Temperature |
5°F to 122°F (-15°C to 50°C) |
| Humidity |
0-95% non-condensing |
| Altitude |
Up to 3,000m (9,842 ft) |
| Noise Level |
Less than 55 dBA at 1 meter |
| Form Factor |
Floor-standing tower enclosure |
| Dimensions (H x W x D) |
68" x 24" x 32" (1727 x 610 x 813 mm) |
| Weight |
Approximately 450 lbs (204 kg) without batteries |
| Input Protection |
Surge, spike, and EMI/RFI filtering |
| Output Protection |
Overload, short circuit, over-temperature |
| Safety Certifications |
UL Listed, CE Marked, FCC Class A |
| Environmental |
ENERGY STAR qualified, RoHS compliant |
| Load Segments |
Programmable load shedding capabilities |
| Bypass |
Automatic and manual bypass operation |
| Parallel Capability |
Up to 4 units for redundancy or capacity |
| Software |
PowerAlert monitoring and management software |
| Remote Monitoring |
SNMP, HTTP, SSH network protocols |
| Input Circuit Breaker |
Integrated with disconnect capability |
| Output Circuit Protection |
Individual branch circuit breakers |
| Maintenance Bypass |
Internal maintenance bypass switch |
| Warranty |
2-year full system warranty |
Frequently Asked Questions
Q: What are the advantages of double conversion UPS technology?
A: Double conversion UPS technology provides the highest level of power protection by continuously converting AC to DC and back to AC. This Tripp Lite 3-Phase 20kVA UPS ensures complete electrical isolation from input power disturbances, zero transfer time, and consistent power quality for mission-critical equipment in data centers and enterprise environments.
Q: Why does this UPS come with no internal batteries?
A: The no internal batteries UPS design allows maximum flexibility for customizing runtime requirements. Organizations can configure external battery solutions based on specific needs, whether for short bridging periods or extended runtime applications. This enterprise UPS solutions approach optimizes both initial investment and long-term operational costs.
Q: How does Unity Power Factor benefit modern data center equipment?
A: Unity Power Factor technology allows this smart UPS enterprise system to deliver the full 20kW output capacity, supporting modern high-efficiency servers and IT equipment. Unlike traditional UPS systems with lower power factors, this ensures maximum utilization of the data center UPS capacity for today's power factor corrected loads.
Q: What makes this suitable for mission-critical applications?
A: This mission critical UPS features true online double conversion topology, comprehensive monitoring capabilities, and robust 3-phase power handling. The intelligent power distribution unit functionality, combined with network management features and parallel capability, ensures maximum uptime and reliability for enterprise-grade critical infrastructure applications.
Tripp Lite SmartOnline S3M20K-NIB 3-phase 20kVA double conversion UPS with Unity Power Factor and no internal batteries for enterprise data centers.
