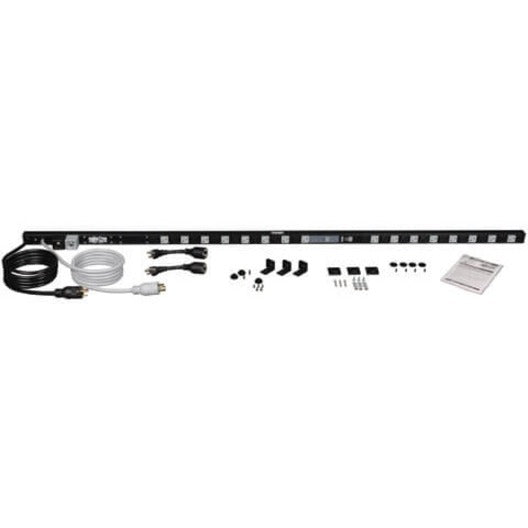

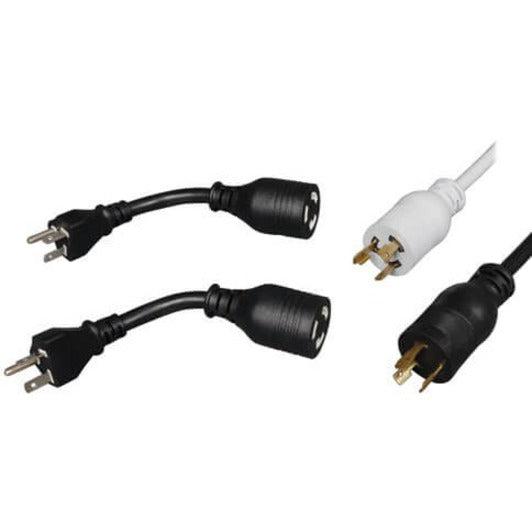

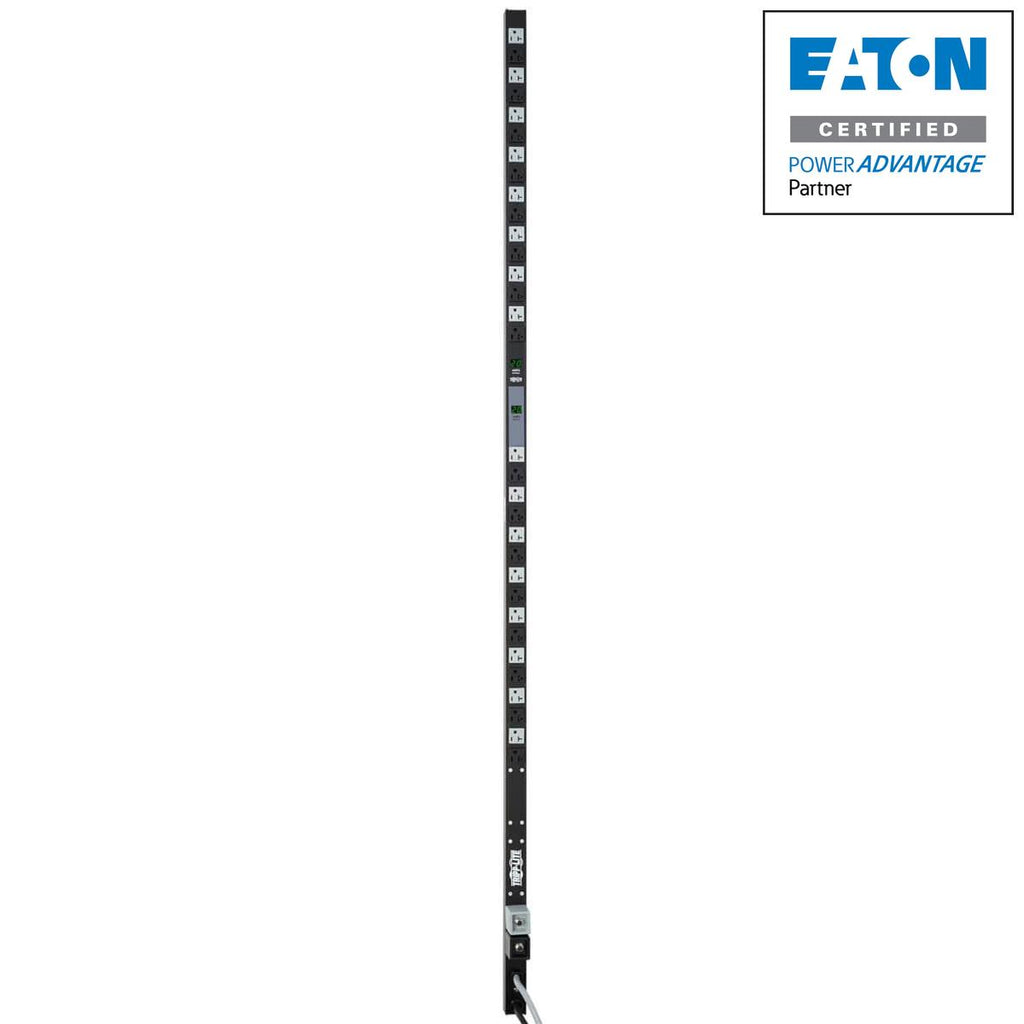

Tripp Lite 3.8kW Single-Phase Metered PDU, Dual Circuit, 120V Outlets (32 5-15/20R), L5-20P/5-20P, 10ft Cord, 0U Vertical. PDU types: Metered, Rack capacity: 0U, Mounting: Vertical. AC outlets quantity: 32 AC outlet(s), AC outlet types: NEMA 5–15R,NEMA 5–20R, Input connection type: NEMA 5-20P, NEMA L5-20P. Cable length: 3.05 m, Certification: UL60950-1 (USA) and CAN/CSA C22.2 No. 60950-1-03 (Canada). Nominal input voltage: 100-127 V, Maximum current: 40 A, AC input frequency: 50 - 60 Hz. Width: 38.1 mm, Depth: 84.8 mm, Dimensions (WxDxH): 1809.8 x 38.1 x 76.2 mm

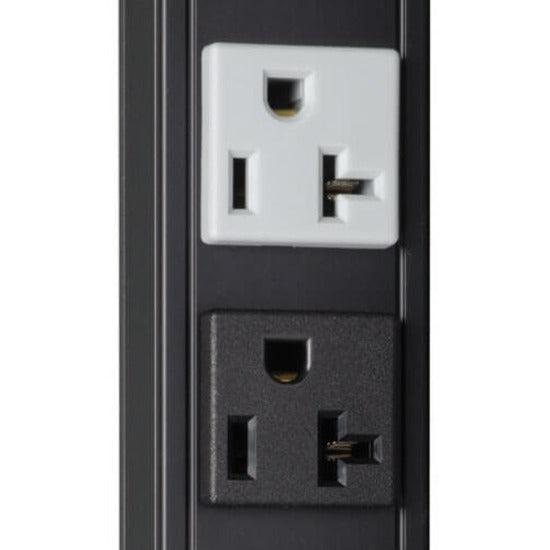

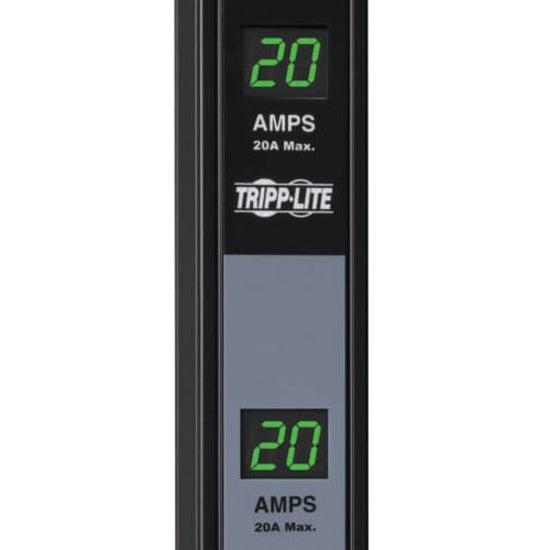

The PDUMV40 provides an efficient and manageable power distribution solution for multiple servers with dual redundant power supplies, or any other application that requires numerous outlets, high capacity, and a compact form factor. Dual input current monitoring display shows AC power consumption for each independent circuit. Switchless design eliminates accidental shutoff of connected equipment. Unfiltered electrical pass-through without a power switch makes the PDUMV40 ideal for distributing alternate waveform UPS or generator power in rack enclosures, network closets, and more. Each of two independent circuits' supports 16 outlets and equipment loads up to 2,400 watts32 outlets and 4,800 watts total capacity without consuming additional rack space. - All-in-one Zero U form factor enables efficient, single-enclosure installations - Dual independent circuit design delivers high capacity across 32 outlets in minimal space - Input plugs, input power cords, breakers and outlets are color-coded to match each independent 20A circuit, allowing simplified cable management for multi-server configurations (each circuit is Agency de-rated to 16A continuous) - Dual digital current monitoring displays (1 for each circuit) - 10 ft. dual input power cords increase mounting flexibility; mounting hardware included - Combines the advantages of two separate high-current PDU's without the extra expense, increased space requirements and added management complexity - Includes two adapters that convert NEMA L5-20P input plugs to NEMA 5-20P. Twist-lock interface ensures secure connection - Switchless design prevents accidental shutdown of connected equipment - Toolless mounting supported in button-mount compatible racks, plus nut-and-bolt mounting brackets for other mounting applications
