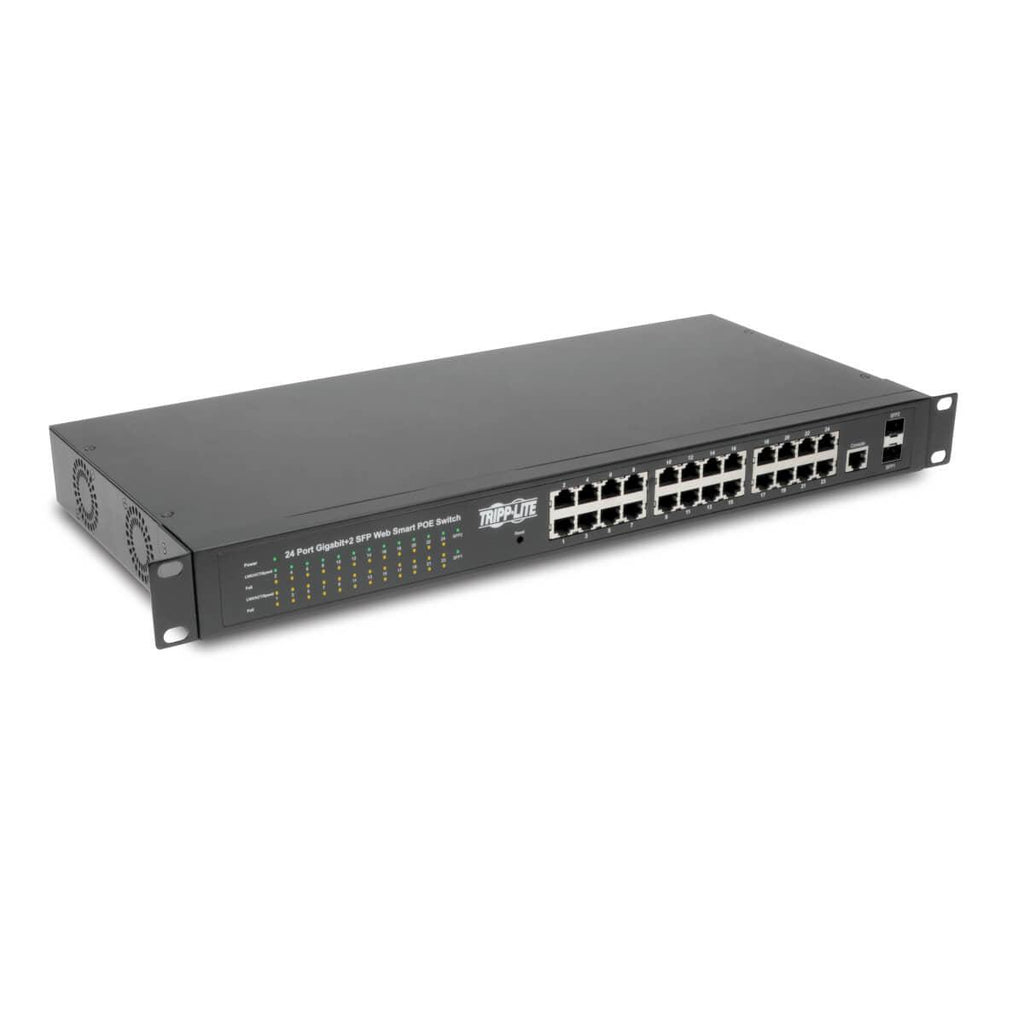

The energy-efficient NGS24C2POE 24-Port Gigabit L2 Web-Smart Managed PoE+ Network Switch features 24 twisted-pair RJ45 Gigabit Ethernet ports that support auto-negotiable 10/100/1000 Mbps and auto MDI/MDIX cross-over detection functions for convenient plug-and-play capability. Each port can be configured to supply up to 30W of PoE+ (Power over Ethernet) via network cable to connected high-wattage devices, such as VoIP phones, wireless access points and security cameras. Two dedicated mini-GBIC SFP ports are also included for uplinking data to other switches via optical fiber or copper.
Easy-to-read LEDs indicate connection and activity status for each port. Built-in web-smart management software gives you remote access to monitor and control each connected device via secure web-based interface. Each port supports up to 2 Gbps with full duplex.
The heavy-duty metal housing mounts into 1U of an EIA-standard 19-inch rack using the included brackets and user-supplied hardware. Or attach the included rubber feet to the bottom of the unit for installation on a flat desktop surface. The five-foot input cord with NEMA 5-15P plug connects to a protected UPS, generator or mains input AC source. Features
Enterprise Managed Network Switch - 24 twisted-pair RJ45 Gigabit Ethernet ports for connecting data-intensive devices - Auto-negotiable 10/100/1000 Mbps - Automatic MDI/MDIX cross-over detection - 52 Gbps switching capacity (2 Gbps per port with full duplex) - Easy-to-read LEDs indicate connection and activity status for each port - Supports 9k jumbo frames - Supports MAC address auto-learning and auto-aging up to 8,000 addresses - Advanced Enterprise-level and L2 management features
300W Total PoE+ Budget - Each RJ45 port can be configured to supply in-line power to connected devices, such as VoIP phones, wireless access points and security cameras - 30W maximum per port
Built-In Web-Smart Management Software - Remote access allows monitoring and control of connected equipment via simple Web interface - VLAN, trunking, VPN, port monitoring and other features improve network efficiency and performance
Dual Dedicated Mini-GBIC SFP Ports - Connect to Mini-GBIC SFP modules for uplinking to other switches via optical fiber or copper - LEDs indicate interface traffic
Compliant with IEEE Standards - Meets IEEE 802.3ab, 802.3i, 802.3u, 802.3x, 802.3, 802.1q, 802.1p, 802.3af and 802.3at standards
Versatile Installation Options - Fanless metal housing mounts in 1U of EIA-standard 19 in. racks - Supports desktop installation using included rubber feet on flat surface - 5 ft. power cord with NEMA 5-15P plug connects to compatible AC power source
Package Includes - NGS24C2POE 24-Port Gigabit L2 Web-Smart Managed PoE+ Network Switch - Detachable AC power cord w/NEMA 5-15P plug, 5 ft. - (2) Rack-mounting brackets - (8) Screws - (4) Rubber feet - Owner’s manual
