Tripp Lite 2-Port Dvi/Usb Kvm Switch W/ Audio And Cables

2-Port DVI/USB KVM Switch w/ Audio and Cables

Tripp Lite 2-Port DVI/USB KVM Switch w/ Audio and Cables. Keyboard port type: USB, Mouse port type: USB, Video port type: DVI-I. Maximum resolution: 2048 x 1536 pixels, Number of users: 1 user(s). Product colour: Silver, Cable length: 1.8 m, Country of origin: China. AC input voltage: 100-240 V, AC input frequency: 50 - 60 Hz, Input current: 0.4 A. Width: 152.4 mm, Depth: 63.5 mm, Height: 25.4 mm

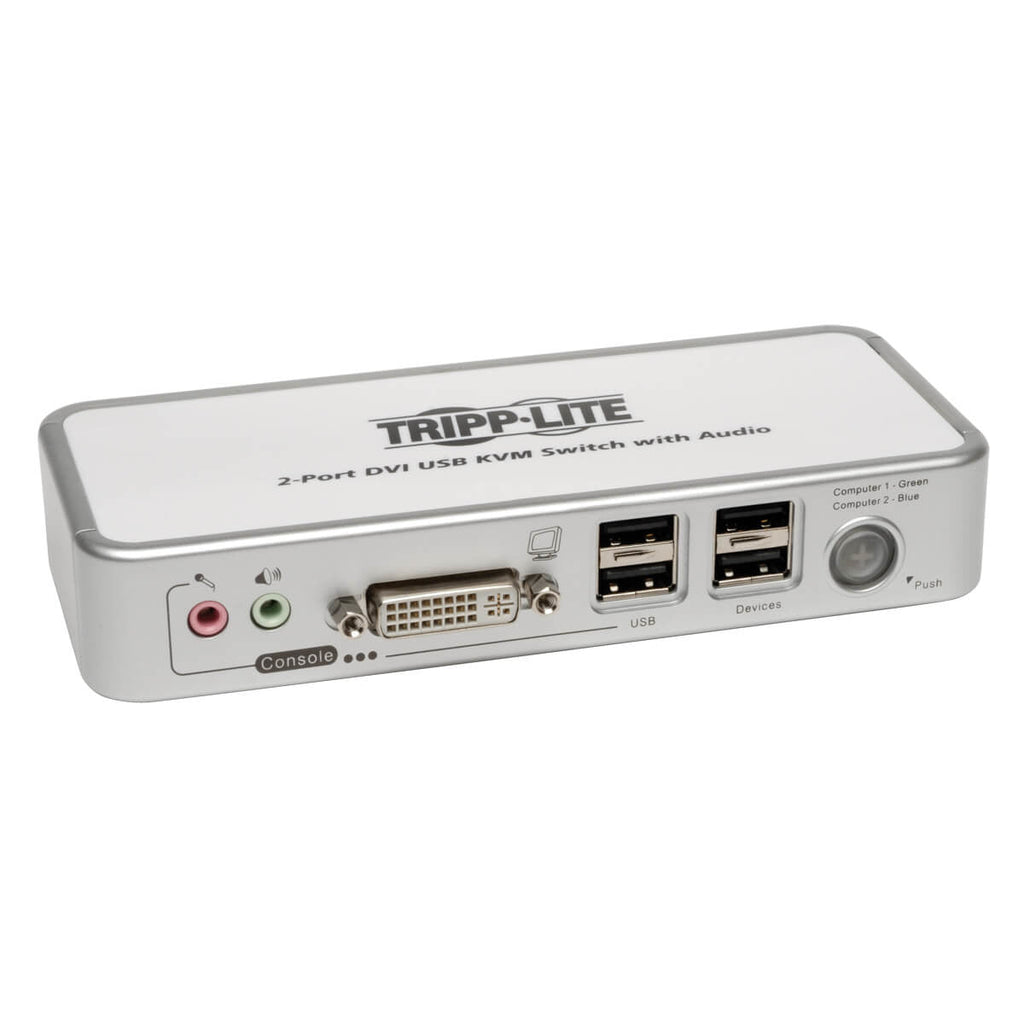

The B004-DUA2-K-R is a 2-Port DVI/USB KVM Switch with audio and USB 2.0 peripheral sharing. It allows you to access, control, boot and reboot two computers from a single USB keyboard, USB mouse, and monitor. Switching between connected computers is quick and simple using keyboard hotkeys or pushbuttons. An independent audio/mic and USB peripheral switching function allows for an uninterrupted experience. A computer can be printing on a printer connected to one of the USB 2.0 peripheral ports, while you listen to audio from and access another computer; all at the same time.

The B004-DUA2-K-R uses DVI-I technology, allowing for the transmission of a digital (up to 1920 x 1200) or analog (up to 2048 x 1536) signal. A DVI to VGA adapter, such as Tripp Lite's P126-000, is required for conversion to an analog monitor. Whichever you use, full time DDC support provides the necessary EDID information required for optimal video performance on Windows 7 and other operating systems. Compatible with all major operating systems.

● Fast, easy switching via keyboard hotkeys or pushbuttons
● Plug-and-play setup - no software required
● Hot-swap capability allows easy addition or removal of computers without powering down the switch or other computers
● Speaker and microphone connections allow for the sharing of audio components between systems
● Independent audio/mic and USB peripheral switching function allows for an uninterrupted experience. A computer can be printing on a printer connected to one of the USB 2.0 peripheral ports, while you listen to audio from and access another computer; all at the same time.
● Supports 2-Channel Stereo Audio
● Features two USB 2.0 ports for the sharing of USB peripherals (e.g. flash drives, printers, etc.) between the connected computers
● Uses DVI-I technology, allowing for the transmission of a digital (up to 1920 x 1200) or analog (up to 2048 x 1536) signal. A DVI to VGA adapter, such as Tripp Lite's P126-000, is required for conversion to an analog monitor.
● To connect to a HDMI monitor, a DVI to HDMI adapter such as Tripp Lite's P132-000 is required (Audio is not supported when converting from DVI to HDMI).
● Full time DDC support provides the necessary EDID information for optimal video performance on Windows 7 and other operating systems
● Supports Microsoft® IntelliMouse® and the scrolling wheel on most mice
● (x2) 1.22 m USB cables and (x2) 1.22 m DVI + Audio KVM cable kits included
● Compatible with all major operating systems


● Control 2 computers with a single DVI monitor, USB keyboard and USB mouse

● Switch ports via keyboard hotkeys or pushbuttons

● Allows for the sharing of audio components between systems; listen to music from one computer while accessing another

● Features two USB 2.0 ports for the sharing of USB peripherals between the connected computers

● (x2) 1.22 m USB cables and (x2) 1.22 m DVI + Audio KVM cable kits included

● Full time DDC support provides the necessary EDID information for optimal video performance on Windows 7 and other operating systems

● Compatible with all major operating systems

System Requirements

● KVM Console: A DVI monitor, USB keyboard, and USB mouse
● Computers: DVI-I port (P118-000 DVI-I to DVI-D Adapter is required for computers with DVI-D ports), and USB Port
● Audio (Optional): A microphone and speakers with 3.5mm Mini-Stereo connectors and a computer with 3.5mm Mini-Stereo ports
● Compatible with all major operating systems

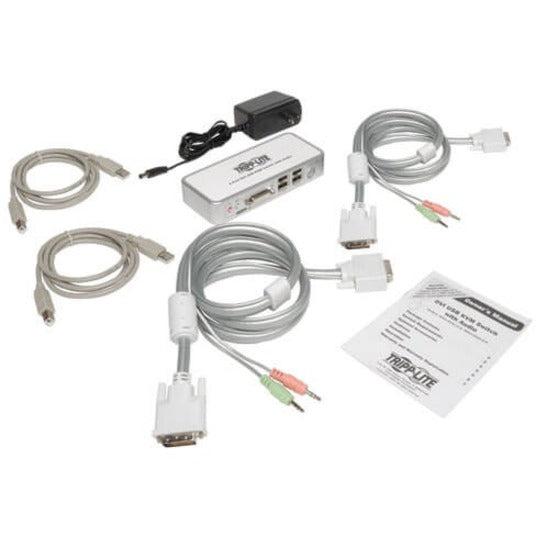

Package Includes


● B004-DUA2-K-R
● (x2) 4 ft. DVI-I + 3.5mm Audio Cable kits
● (x2) 4 ft. USB A-B Device Cables
● Owner's Manual
● External Power Supply with NEMA 1-15P Plug (Input: 100-240V, 50/60Hz, 0.4A Output: 5V, 2A)
