2-Port DVI Splitter with Audio and Signal Booster, Single-Link 1920x1200 at 60Hz/1080p (DVI F/2xF)
Tripp Lite 2-Port DVI Splitter with Audio and Signal Booster, Single-Link 1920x1200 at 60Hz/1080p (DVI F/2xF). Video port type: DVI, Video out: 2x DVI. Maximum resolution: 1920 x 1080 pixels, Product colour: Black, Maximum refresh rate: 60 Hz. AC input voltage: 100-240 V, AC input frequency: 50 - 60 Hz, Input current: 0.5 A. Dimensions (WxDxH): 114 x 64 x 28 mm, Weight: 230 g. Package width: 61 mm, Package depth: 162.6 mm, Package height: 177.8 mm

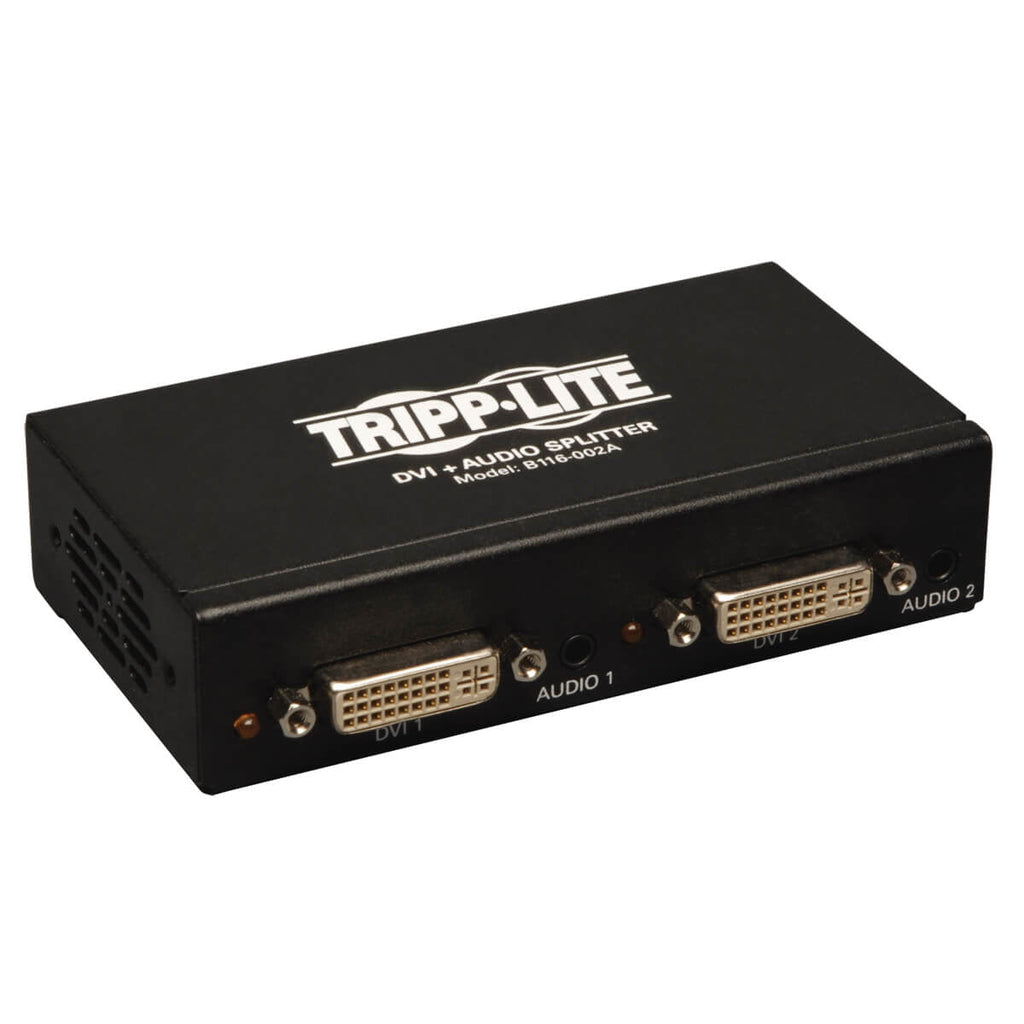

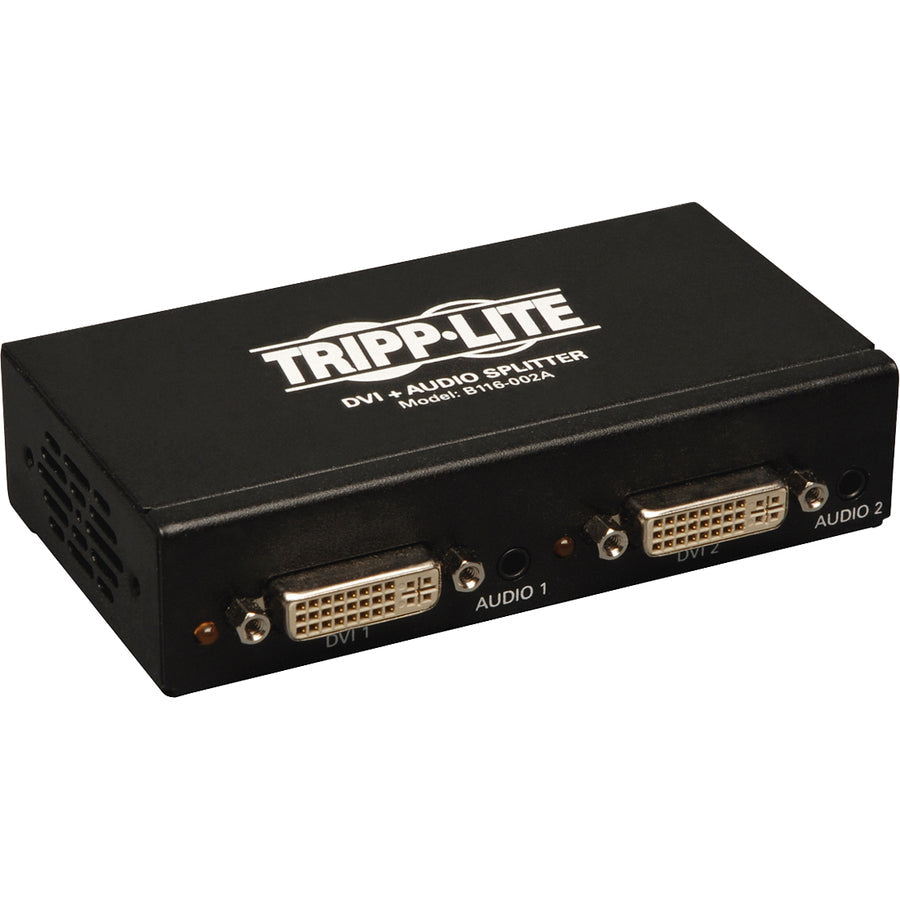

With Tripp Lite's 2-Port DVI + Audio Splitter, you can transmit a DVI-D Single Link video signal and 3.5 mm. audio signal to two sets of monitors and speakers. Supports DVI Single Link computer video resolutions up to 1920 x 1200, and HD resolutions up to 1080p. The unit is HDCP, EDID, and DDC compatible. A built-in signal booster allows you to extend the distance between the splitter and connected monitors past the 5 m distance limitation.
For source video resolutions anywhere from 1600 x 1200 @ 60Hz to 1920 x 1200 @ 60Hz - The distance between the splitter and the connected monitor/speakers must not exceed 15 m. This distance can be extended by using a B120-000-SL DVI extender. The B120-000-SL can be located up to 20 m from the splitter, and 5 m from the connected monitor.
For source video resolutions lower than 1600 x 1200 @ 60Hz - The distance between the splitter and the connected monitor/speakers must not exceed 20 m. This distance can be extended by using a B120-000-SL DVI extender. The B120-000-SL can be located up to 35 m from the splitter, and 16 ft. (5 m.) from the connected monitor.

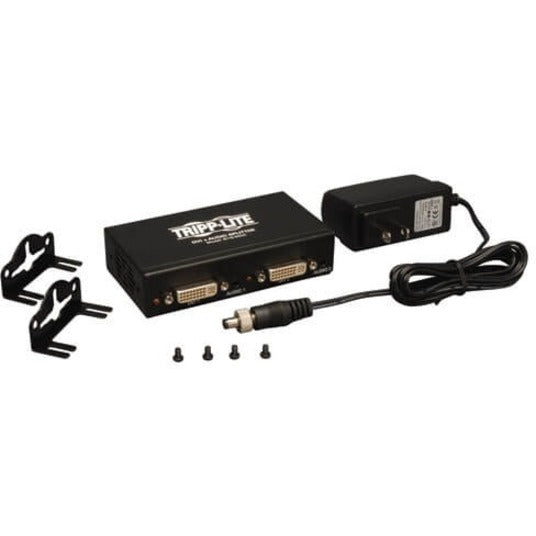

The number of connected monitors/speakers can be expanded by cascading up to three levels of splitters. Plug and Play...no software or drivers required. Mounting hardware is included with the product, and allows it to be rackmounted, wallmounted or pole-mounted.
● Transmit a DVI-D Single Link video signal and 3.5 mm. audio signal to two sets of monitors and speakers ● Supports DVI Single Link computer video resolutions up to 1920 x 1200, and HD resolutions up to 1080p ● HDCP, EDID, and DDC compatible ● Built-in signal booster allows you to extend the distance between the splitter and connected monitors past the (5 m.) distance limitation ● The number of connected monitors/speakers can be expanded by cascading up to three levels of splitters ● Plug and Play...no software or drivers required. Mounting hardware is included with the product, and allows it to be rackmounted, wallmounted or pole-mounted
System Requirements ● Video graphics card with a DVI-D or DVI-I connector ● Monitors with a DVI-D or DVI-I connector ● Speakers and/or monitor with a 3.5 mm. audio connector ● For international use, a power supply with the appropriate plug type must be purchased separately.
