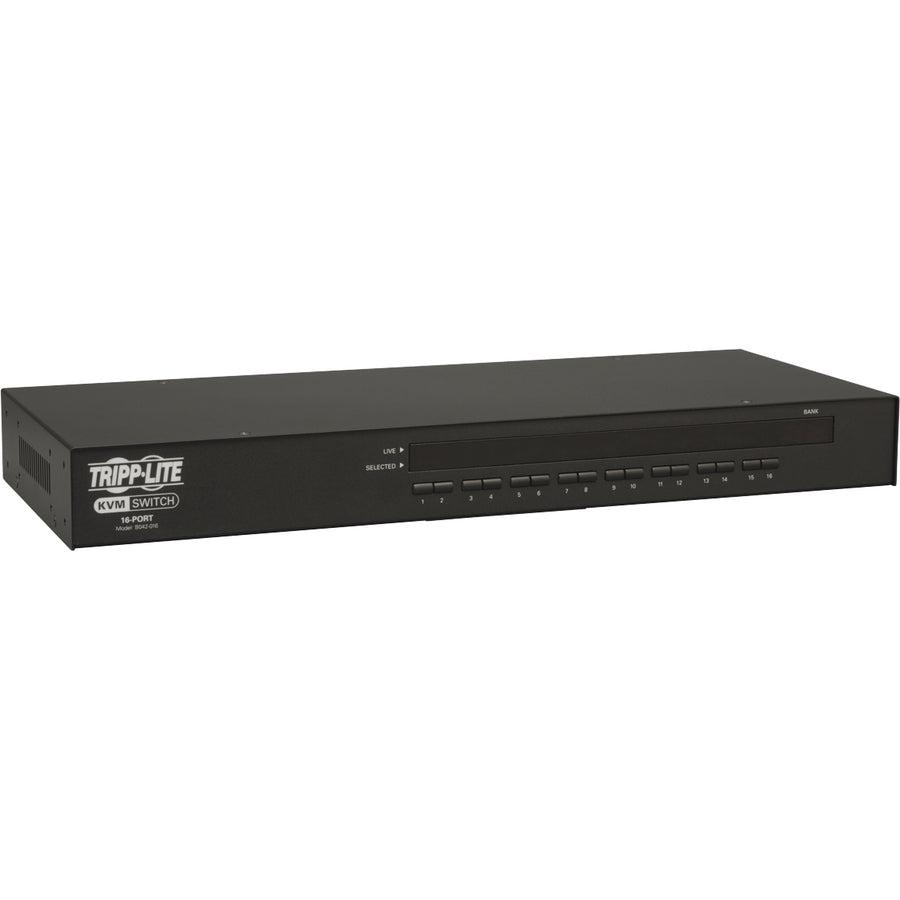

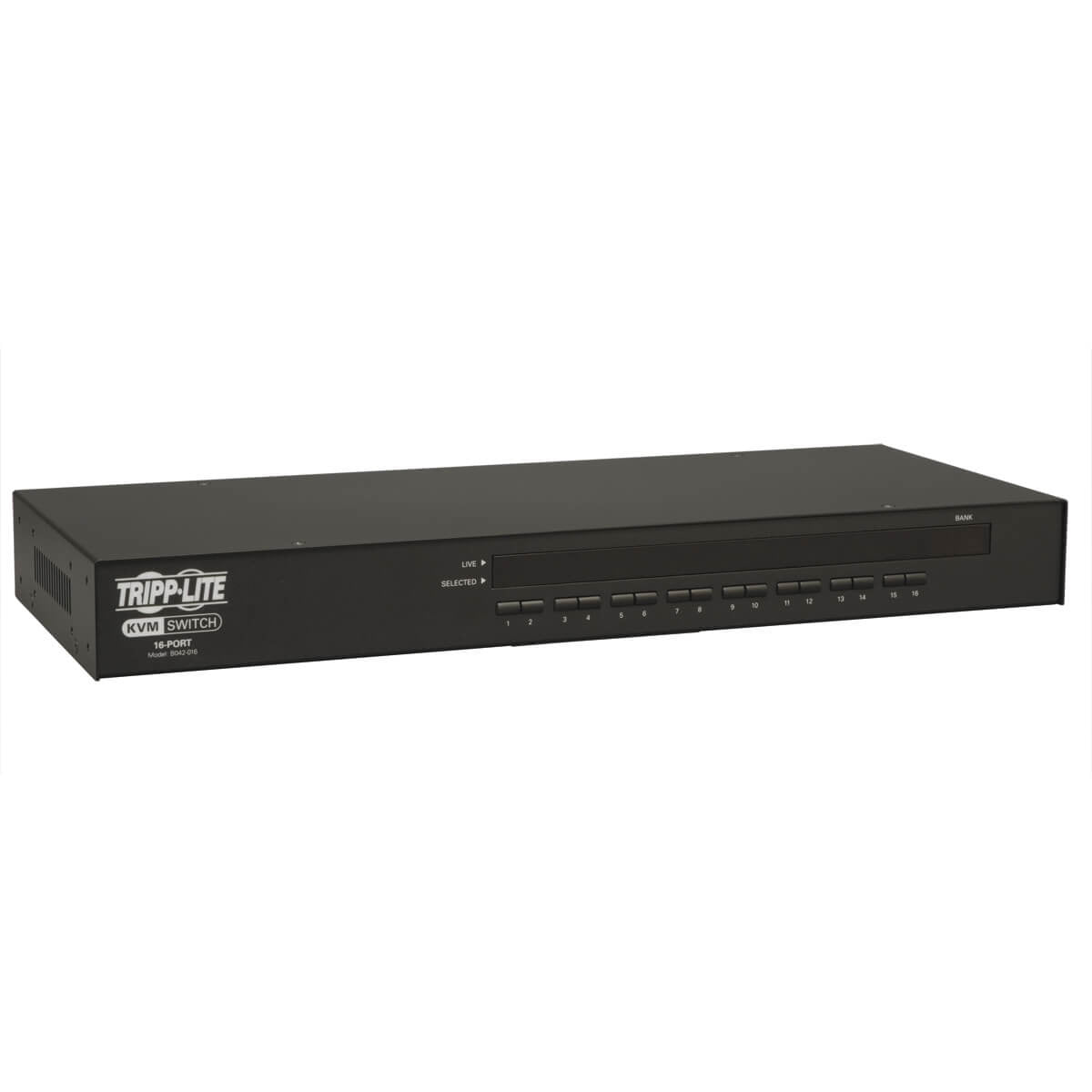

This 16 port KVM switch rackmount solution is perfect for IT managers and data center professionals who need centralized server management across multiple systems. Our 1U rack mount KVM delivers:
-
Server room equipment control for up to 16 computers from single console
-
On-screen display technology for intuitive navigation and server identification
-
USB PS2 compatibility supporting diverse server configurations
-
Daisy-chain capability expanding management up to 256 computers
Key Features
-
16-port configuration for comprehensive multi-server management
-
On-Screen Display (OSD) for easy computer identification and switching
- Dual USB and PS2 compatibility for maximum server compatibility
-
Hot-swappable design allowing connection changes without interruption
-
VGA video support with maximum resolution up to 2048 x 1536
-
Daisy-chain expandability for enterprise-scale deployments
Technical Specifications
| Manufacturer |
Tripp Lite by Eaton |
| Model Number |
B042-016 |
| Type |
16 Port KVM Switch Rackmount |
| Form Factor |
1U Rackmount Design |
| Port Configuration |
16 x KVM Ports (USB/PS2) |
| Video Support |
VGA up to 2048 x 1536 resolution |
| Interface Types |
USB and PS2 Keyboard/Mouse |
| Special Features |
On-Screen Display (OSD) |
| Expansion |
Daisy-chain up to 15 additional units |
| Compatible Systems |
Windows, Mac, Linux, Unix |
Frequently Asked Questions
Q: How many computers can I control with this KVM switch?
A: This 16 port KVM switch rackmount unit controls up to 16 computers directly. With daisy-chaining capability, you can expand server management to control up to 256 computers total.
Q: Is this device hot-swappable for server room operations?
A: Yes, this server room equipment features hot-swappable design, allowing you to connect and disconnect servers without interrupting operations or requiring system shutdowns.
Q: What is the maximum video resolution supported?
A: The 1U rack mount KVM supports VGA video output up to 2048 x 1536 resolution, ensuring clear display quality for detailed server management tasks.
Q: Does the on-screen display make server identification easier?
A: Absolutely. The integrated On-Screen Display (OSD) provides intuitive navigation menus, making it easy to identify and switch between connected servers in busy data center environments.
Tripp Lite 16 port KVM switch rackmount 1U for server management. USB/PS2 compatibility with on-screen display and daisy-chain expansion.
