This 3-phase PDU is perfect for data center administrators, IT professionals, and facility managers who need advanced power distribution unit data center solutions with granular monitoring capabilities. Our solution delivers:
-
Monitored per-outlet functionality providing individual outlet control and monitoring
-
Real-time monitoring with comprehensive power analytics and alerts
-
Network management capabilities for remote administration and SNMP integration
-
Breakered load banks protection ensuring reliable power distribution
Key Features
-
Monitored per-outlet technology with individual outlet metering and switching
-
3-phase PDU design supporting 14.4kW total power capacity at 208V
- Advanced real-time monitoring with current, voltage, and power factor measurements

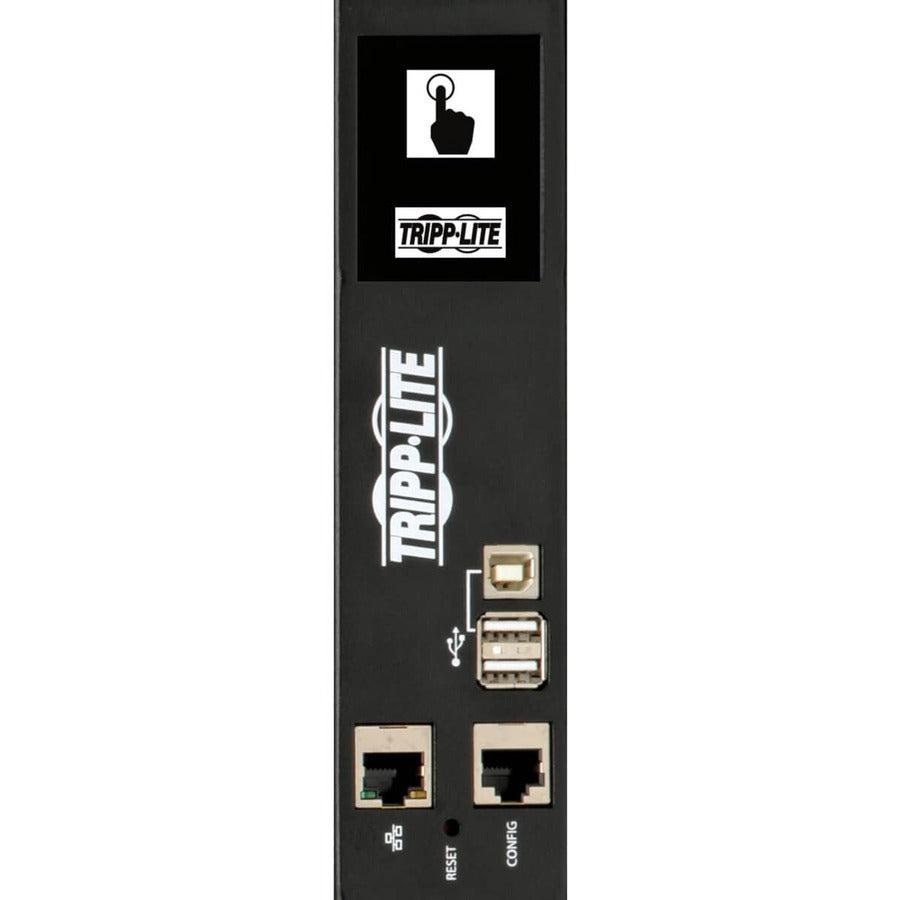

- Comprehensive network management via web interface and SNMP protocols
-
Managed power distribution unit with customizable outlet grouping and scheduling
-

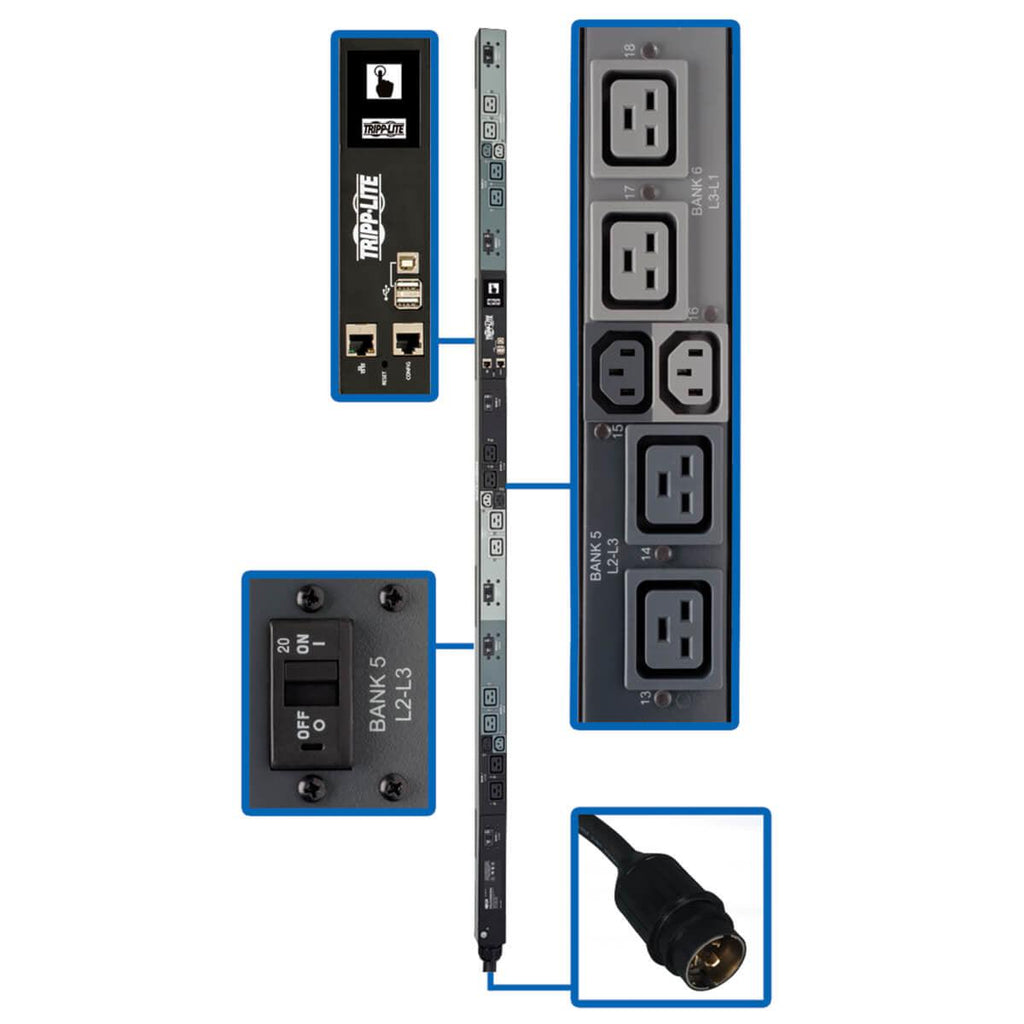

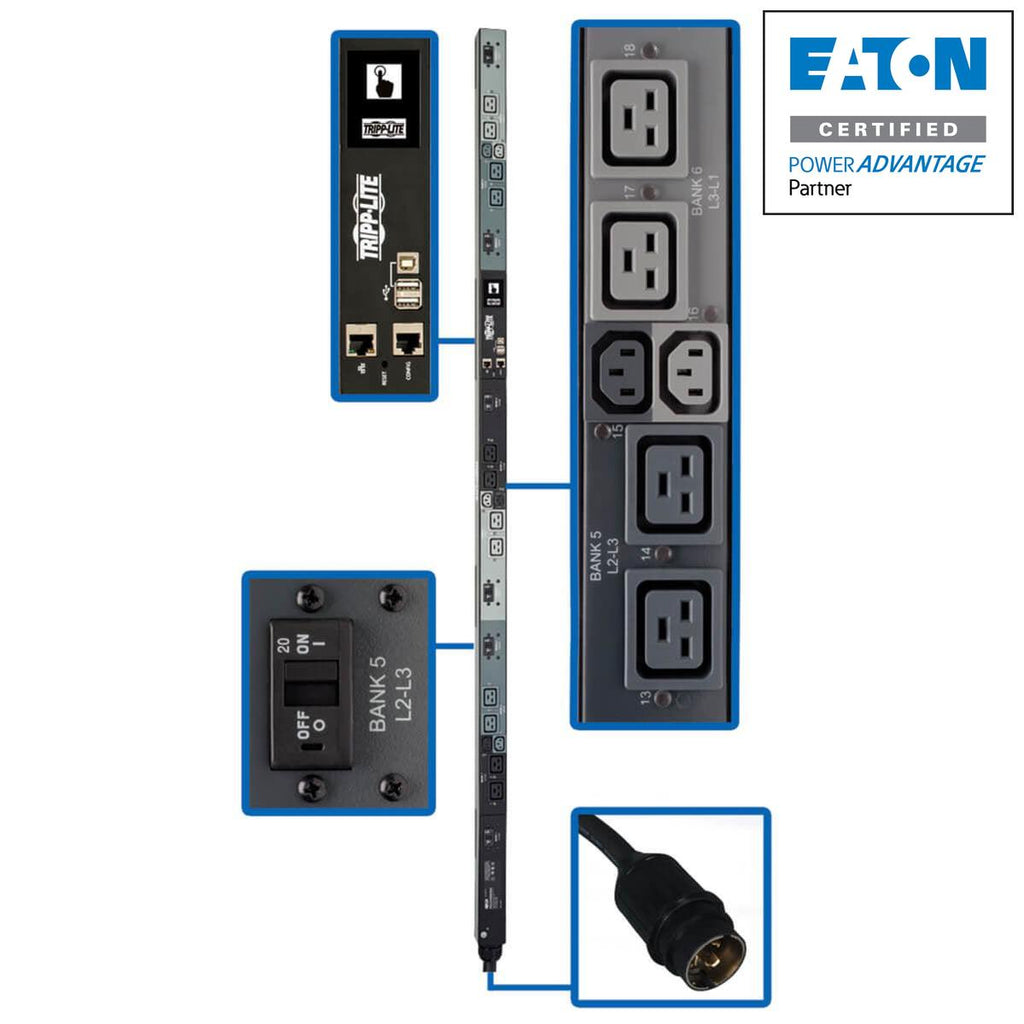

Rack mount power distribution units pdu compatible with standard 19-inch racks

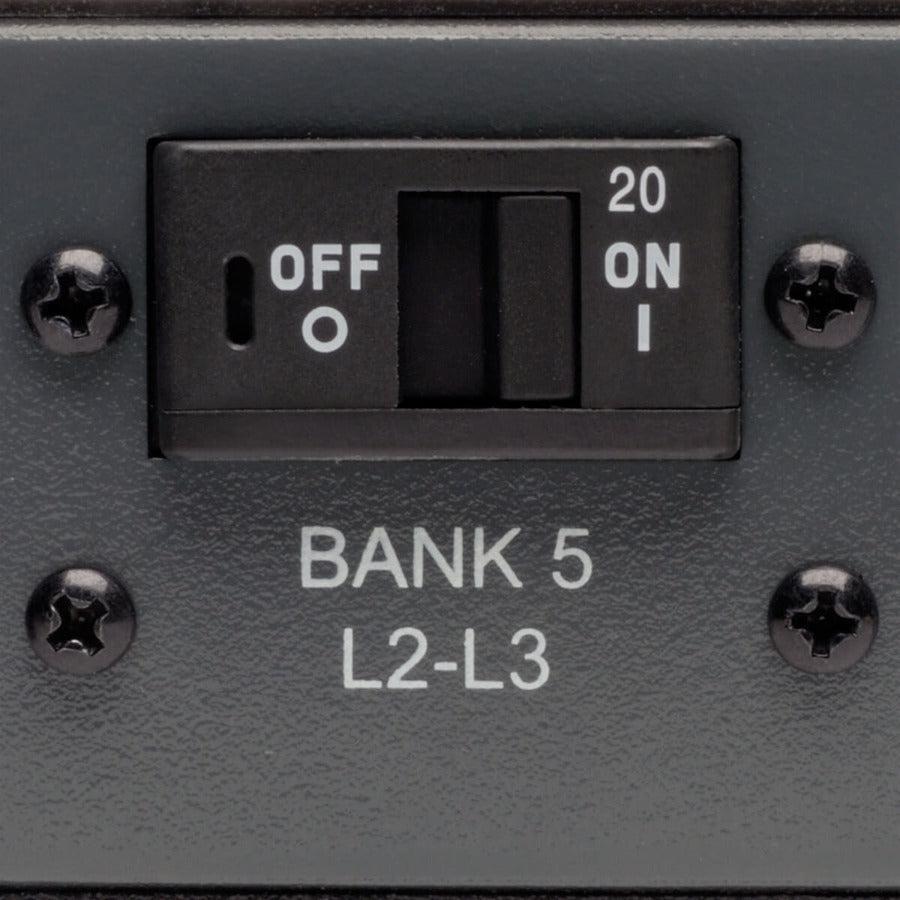

- Integrated breakered load banks for overcurrent protection
- Environmental monitoring with temperature and humidity sensors
Technical Specifications
| Manufacturer |
Tripp Lite by Eaton |
| Model Number |
PDU3EVNR6H50A |
| Type |
3-Phase PDU Monitored Per-Outlet |
| Power Capacity |
14.4kW |
| Input Voltage |
208V 3-Phase |
| Input Current |
50A |

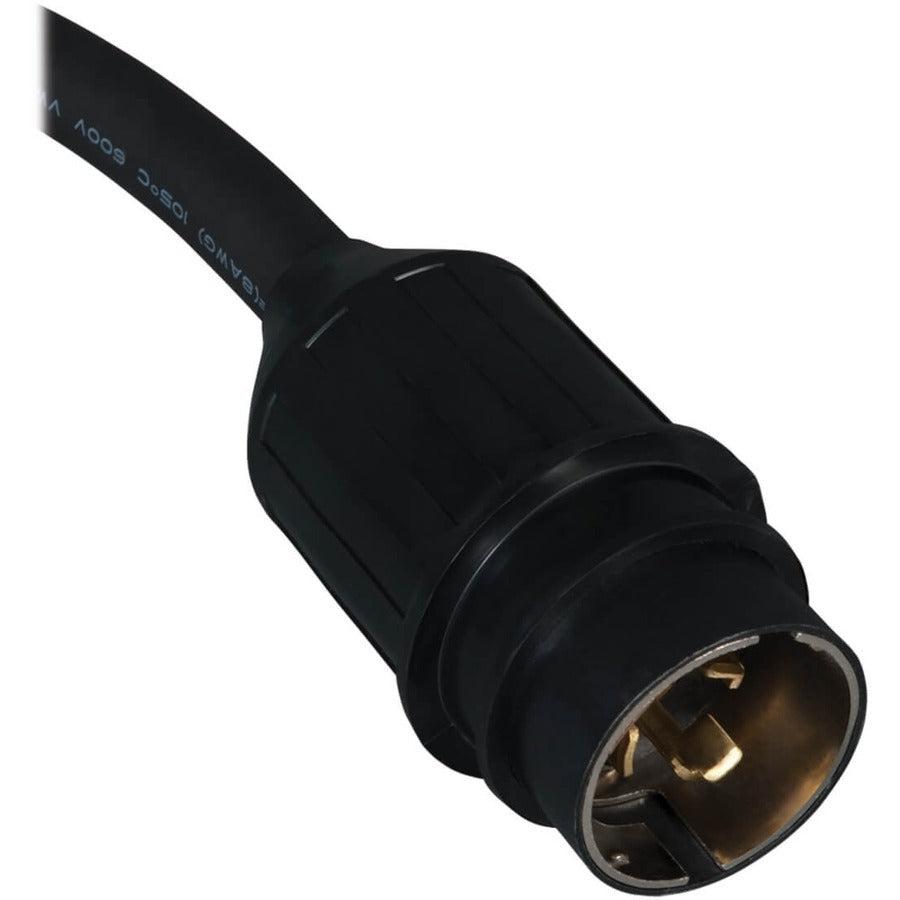

| Input Connector |
NEMA L21-50P |

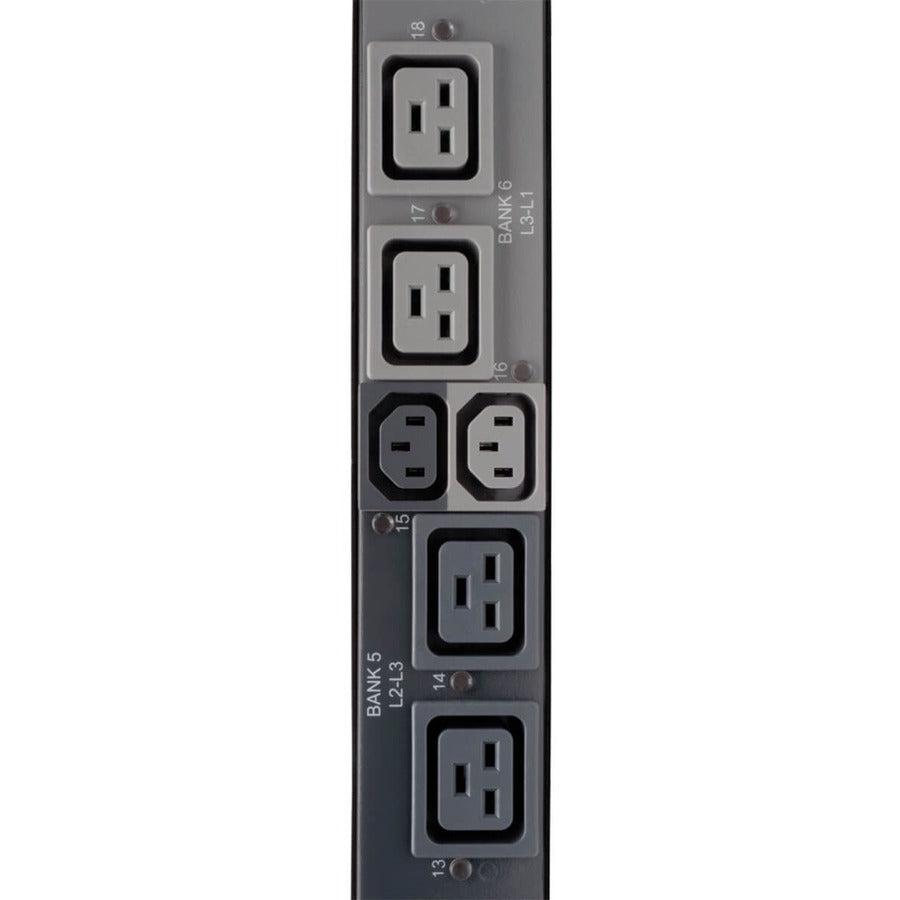

| Outlet Configuration |
42 outlets total (mix of C13/C19 IEC outlets) |
| Monitoring Type |
Per-Outlet Monitoring and Switching |
| Network Interface |
Ethernet 10/100 Mbps with SNMP |
| Form Factor |
Vertical rack mount (0U) |
| Protection |
Circuit breakers on all output branches |
| Environmental |
Temperature/humidity sensors included |
| Compatible Systems |
Data centers, server rooms, enterprise IT infrastructure |
Frequently Asked Questions
Q: What is monitored per-outlet functionality in a PDU?
A: Monitored per-outlet capability allows you to measure power consumption, voltage, and current at each individual outlet, providing granular visibility into equipment power usage for capacity planning and energy management.
Q: How does the real-time monitoring system work?
A: The real-time monitoring system provides continuous measurement of electrical parameters with web-based dashboards, SNMP integration, and customizable alerts for proactive power distribution unit data center management.
Q: What network management features are included?
A: This managed power distribution unit includes Ethernet connectivity, SNMP v1/v2c/v3 support, web interface access, and integration with popular network management platforms for centralized monitoring and control.
Q: Can this PDU handle breakered load banks testing?
A: Yes, the integrated circuit breakers and robust 3-phase PDU design make it suitable for breakered load banks applications, providing reliable protection during load testing scenarios.
Q: What makes this suitable for enterprise data centers?
A: This server power distribution unit combines high-density power distribution, granular monitoring, remote management capabilities, and enterprise-grade reliability - essential features for modern data center infrastructure.
