Tripp Lite 1 X 2 Hdmi Over Cat5 / Cat6 Extender Kit, Box-Style Transmitter And Receiver, 1080P @ 60 Hz, Up To 60.96 M (200-Ft.)

1 x 2 HDMI over Cat5 / Cat6 Extender Kit, Box-Style Transmitter and Receiver, 1080p @ 60 Hz, Up to 60.96 m (200-ft.)

Tripp Lite 1 x 2 HDMI over Cat5 / Cat6 Extender Kit, Box-Style Transmitter and Receiver, 1080p @ 60 Hz, Up to 60.96 m (200-ft.). Type: AV transmitter & receiver, Maximum resolution: 1920 x 1080 pixels, Cable types supported: Cat5,Cat5e,Cat6. AC input voltage: 100-240 V, AC input frequency: 50 - 60 Hz, Operating voltage: 5 V. Package width: 260.1 mm, Package depth: 164.1 mm, Package height: 55.1 mm. Master (outer) case width: 573 mm, Master (outer) case length: 273 mm, Master (outer) case height: 175 mm

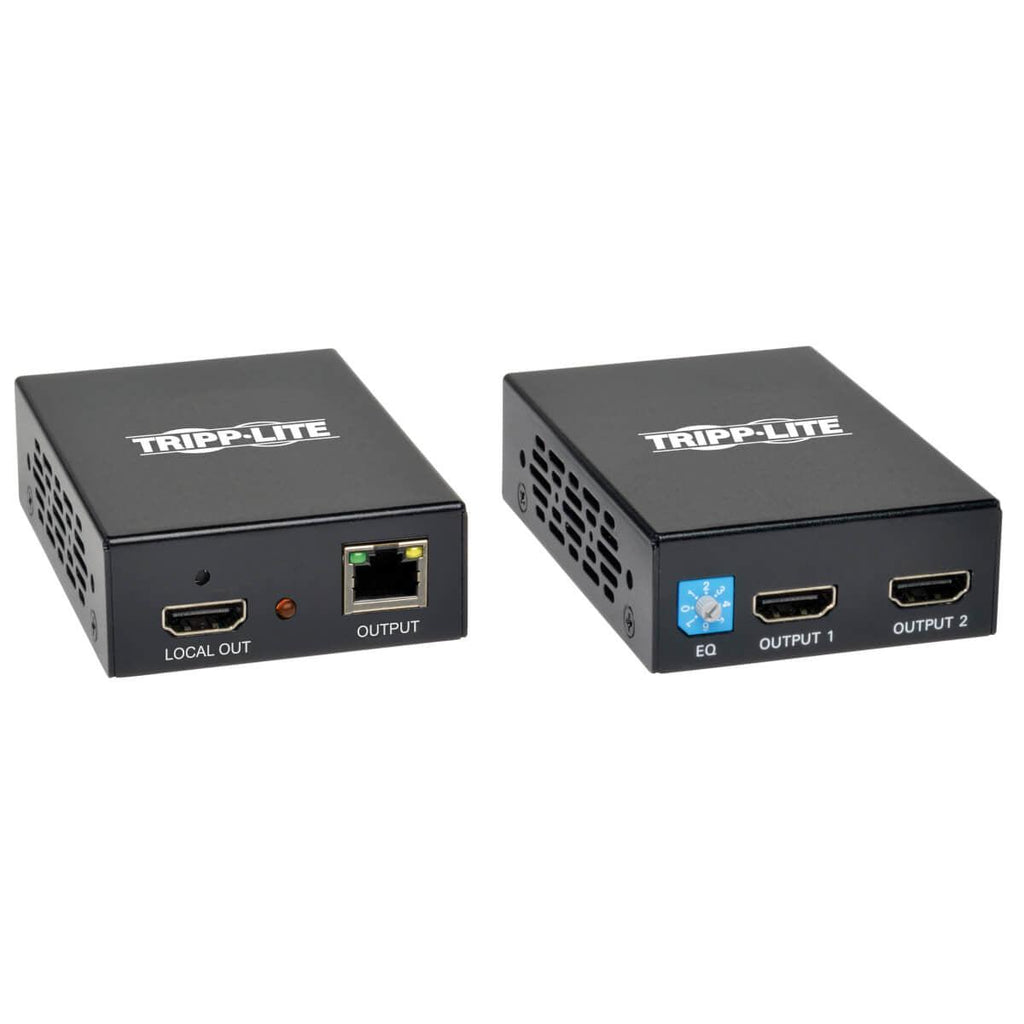

The B126-2A1 HDMI over Cat5/Cat6 Extender Kit includes a transmitter unit and a receiver unit that work in tandem to extend an HDMI signal to two projectors, monitors or televisions. The kit is ideal for digital signs, trade shows, presentations, classrooms, churches, retail settings and other applications where the video source is located farther than conventional cables allow or that require multiple displays connected to one source. HDMI cable (see Tripp Lite’s P568-Series) connects the local monitor and the audio/video source to the transmitter’s HDMI ports and two monitors to the receiver. Cat5e/6 cable (for best results, use 24 AWG solid-wire Cat5e/6 cable, such as Tripp Lite’s N202-Series) connects the two units. The B126-2A1 can extend a 1080i (60 Hz) signal up to 60.96 m (200-ft.), a 1080p (60 Hz) signal up to 45.72 m (150-ft.) and a 3D signal up to 38.1 m (125-ft.). You can connect up to three B126-110 remote repeaters in the chain for a maximum of six HDMI displays and full signal extension of 213.36 m (700-ft.) (1080i), 152.4 m (500-ft.) (1080p) or 121.9 m (400-ft.) (3D).In addition to crystal-clear video, the B126-2A1 delivers full, rich stereo and 7.1-channel surround sound (multi-channel or PCM) audio. Built-in equalization control lets you fine-tune the image quality at each remote display. Supports 24-bit True Color (8 bits per channel) and HDCP compatibility. Easy to set up with no software or drivers to install. Mounts to a wall, rack or pole using the included hardware.

- Supports high-definition video resolutions up to 1080p (60 Hz)
- Supports stereo and 7.1-channel surround sound audio
- Works with all operating systems and HDMI video sources
- Plug and play—no software or drivers to install
- Built-in equalization control lets you adjust monitor image

- Extends a 1080i (60 Hz) signal up to 60.96 m (200-ft.), a 1080p (60 Hz) signal up to 45.72 m (150 ft.) and a 3D signal up to 38.1 m (125 ft.)
- Connect up to 3 B126-110 remote repeaters to the chain for maximum signal range of 213.36 m (700-ft.) (1080i), 152.4 m - (500 feet) (1080p) and 121.9 m (400 feet) (3D)
- Transmitter and receiver connect with one Cat5e/6 cable (for best results, use 24 AWG solid-wire Cat5e/6 cable, such as Tripp Lite’s N202-Series)
- Works with all operating systems and HDMI video sources
- Supports HD resolutions up to 1080p (60 Hz)
- Supports stereo and 7.1-channel surround sound (multi-channel or PCM) audio
- Supports 24-bit True Color (8 bits per channel) and HDCP
- Built-in equalization control lets you adjust the image on the local monitor
- Plug-and-play engineering—no software or drivers to download and install
- Units connect quickly to monitors with HDMI cable, such as Tripp Lite’s P568-Series
- LEDs indicate at a glance when the unit is receiving power and a signal from the previous link in the chain

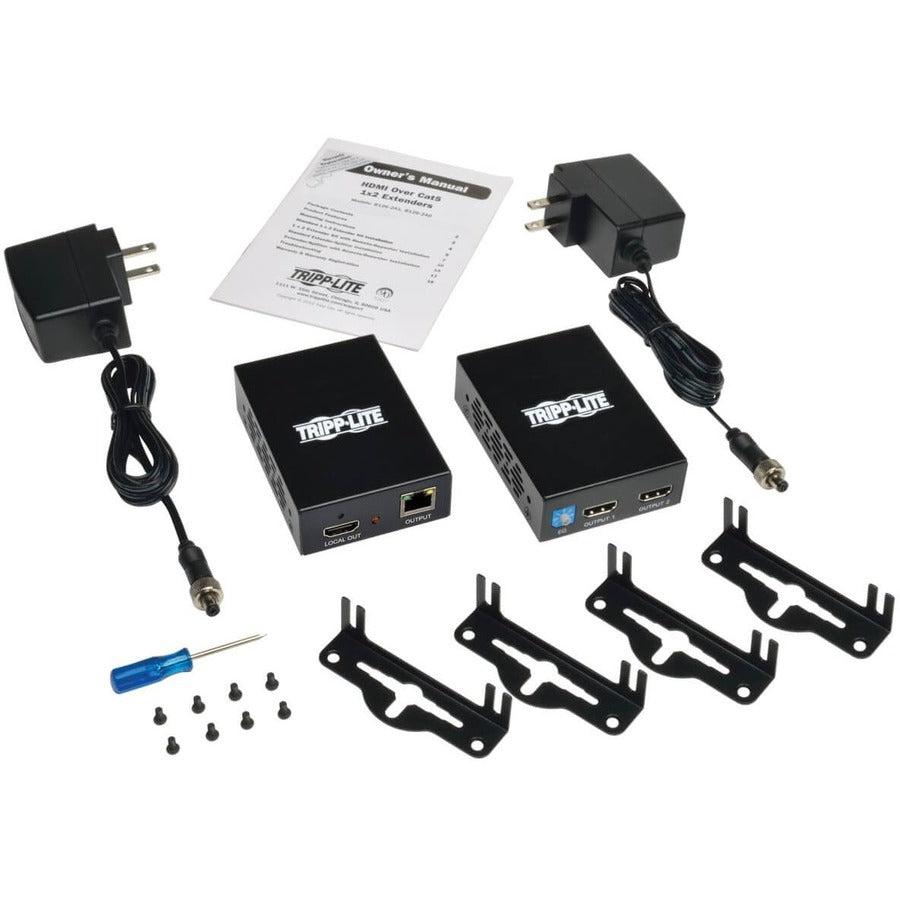

- Included mounting hardware lets you install the units on a wall, rack or pole
- International AC Adapter B110-INT required for use with UK, European, and Australian power connections
