This metered power distribution unit is perfect for data center administrators and IT professionals who need power monitoring capabilities for server racks. Our solution delivers:
-
Local metered PDU technology that provides real-time power consumption monitoring
-
Vertical mount power distribution optimized for 0U space-saving installation
-
Server power distribution unit capabilities with 28 high-density outlets
-
Data center power management with built-in power monitoring display
Key Features
-

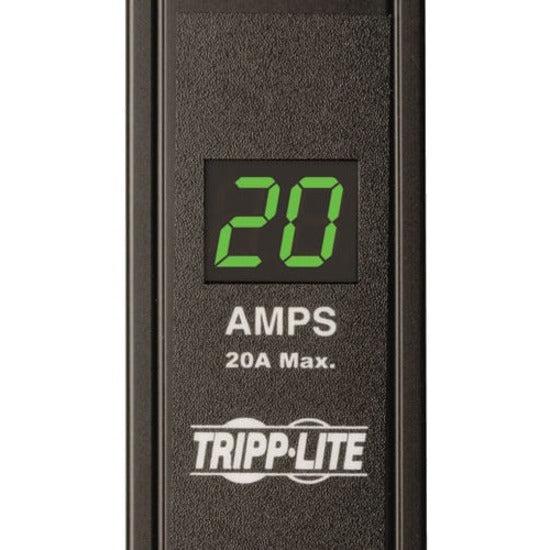

Local metered power monitoring with digital display showing real-time usage
-
0U vertical mount design for maximum rack space efficiency
- Optimized for 120V power distribution in enterprise environments
- Consistent 16A power capacity for reliable server operations
-
28 mixed 5-15/20R outlets providing versatile connectivity options
-

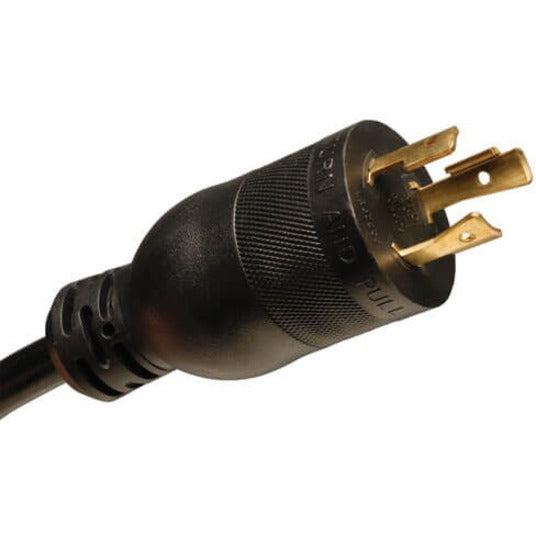

15-foot input cord with L5-20P plug for flexible installation
-
Single-phase metered monitoring for accurate power consumption tracking
Technical Specifications
| Manufacturer |
Tripp Lite by Eaton |
| Model Number |
PDUMV20 |
| Type |
Metered Power Distribution Unit |
| Power Capacity |
1.9kW Single-Phase |
| Input Voltage |
120V Single-Phase |
| Current Rating |
16A |
| Outlets |
28 NEMA 5-15/20R outlets |
| Input Connector |
NEMA L5-20P with 15ft cord |
| Form Factor |
0U Vertical Mount |
| Monitoring |
Local digital meter display |
| Compatible Systems |
Standard 19-inch server racks |
| Installation |

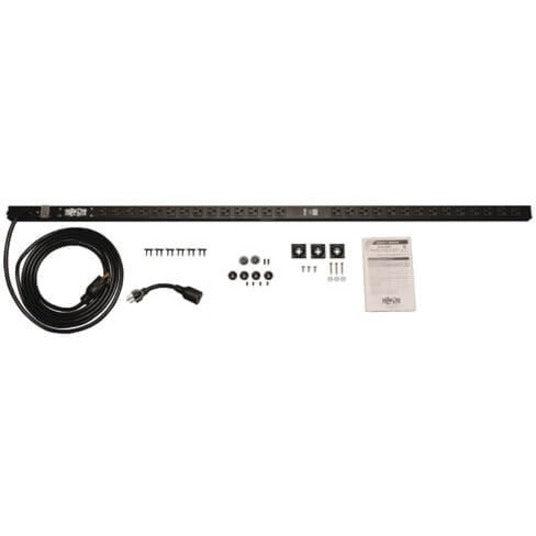

Vertical mounting brackets included |
Frequently Asked Questions
Q: What is a metered power distribution unit used for in data centers?
A: A metered power distribution unit provides both power distribution and real-time monitoring of electrical consumption, enabling IT administrators to track power usage and optimize energy efficiency.
Q: How does the 0U vertical mount design benefit server installations?
A: Yes, it's engineered for vertical rack mounting which saves valuable rack space by mounting on the side rails rather than consuming rack units, maximizing server density.
Q: Can this server power distribution unit monitor individual outlet consumption?
A: This model provides total power consumption monitoring via the built-in digital display, showing aggregate power usage across all 28 outlets — perfect for data center power management.
Q: Is this power monitoring PDU suitable for high-density server environments?
A: Yes. Features 28 outlets with 1.9kW capacity and local power monitoring, meeting requirements for modern high-density server deployments and power efficiency compliance.
Metered Power Distribution Unit for data centers. 120V vertical rack PDU with power monitoring and 28 outlets.
