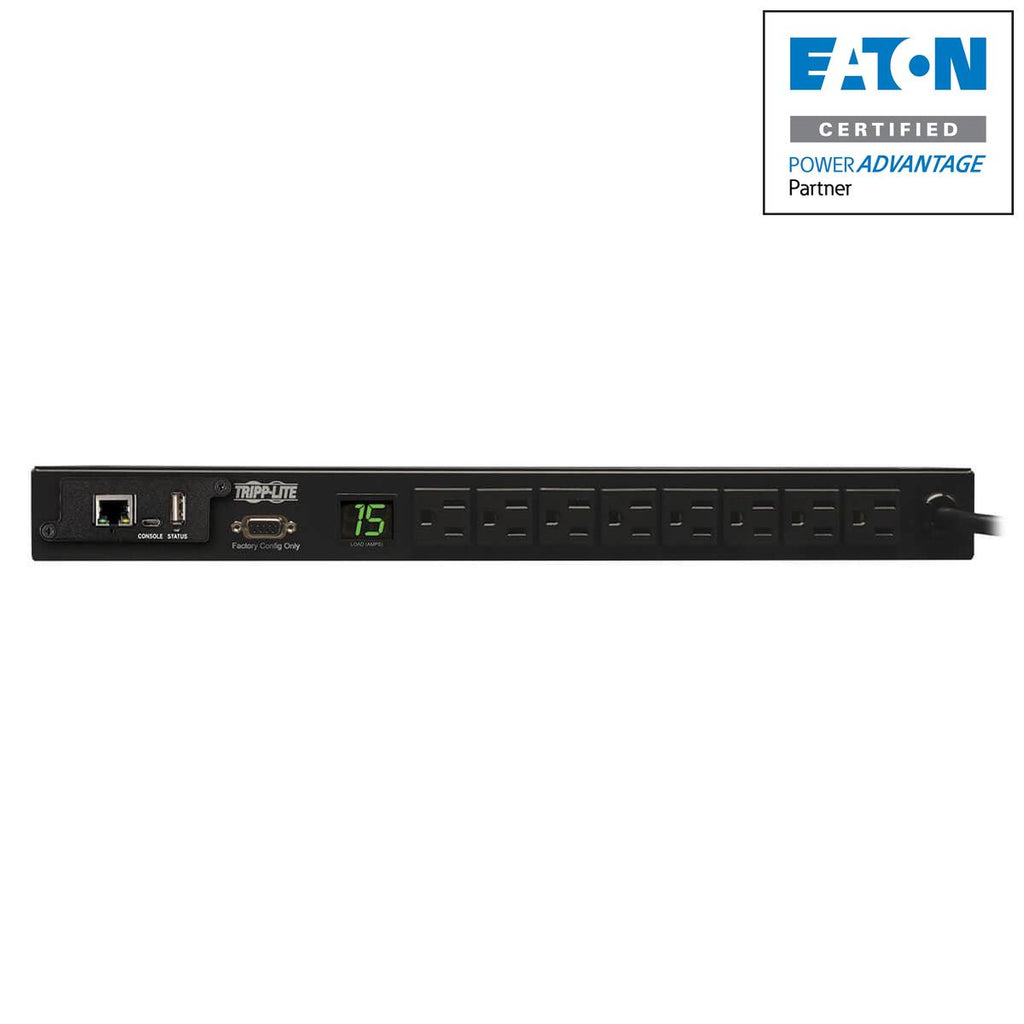

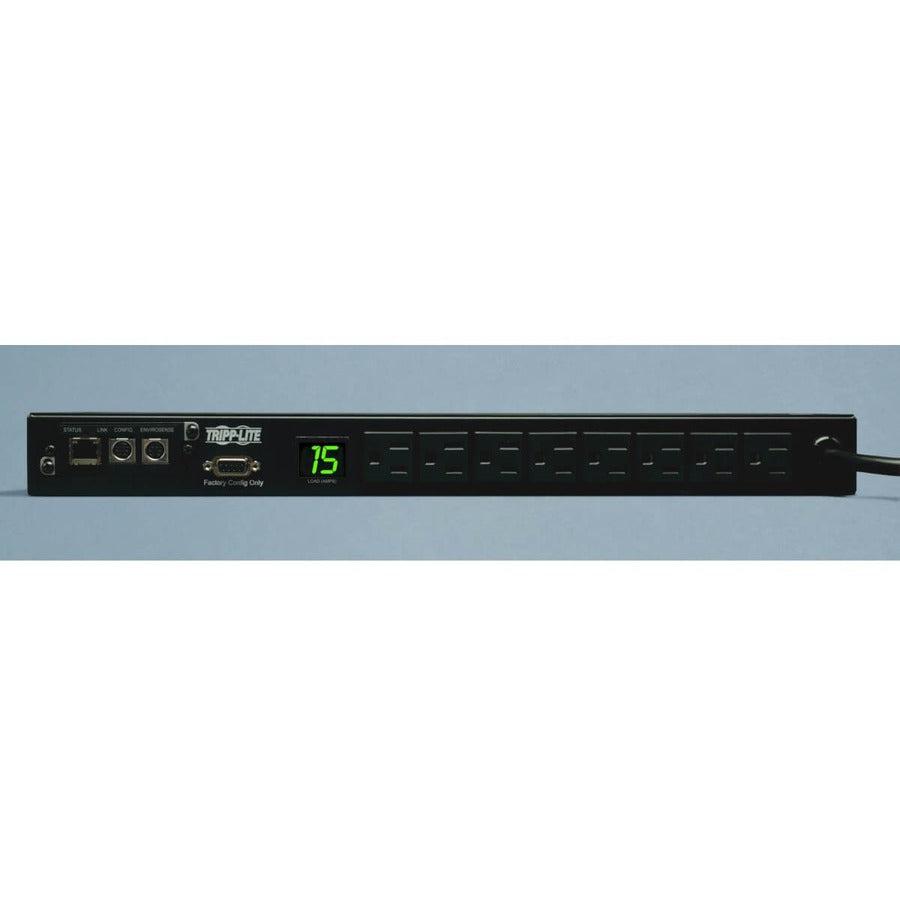

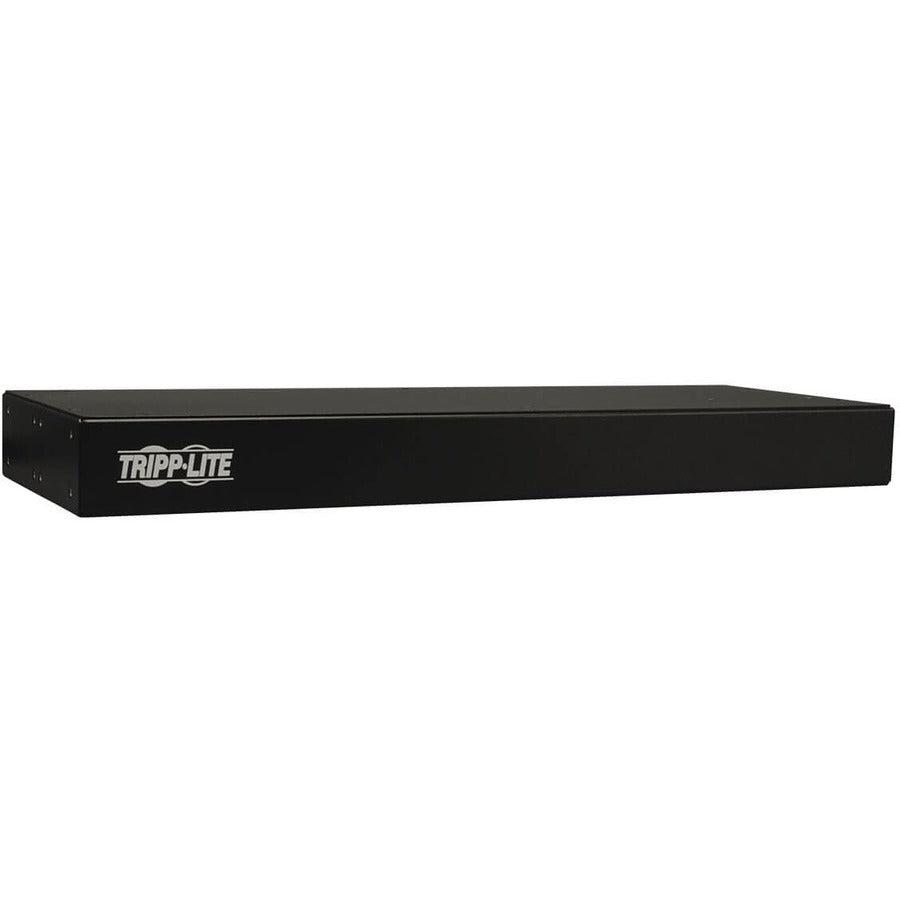

Tripp Lite 1.4kW Single-Phase Monitored PDU, 120V Outlets (8 5-15R), 5-15P, 12ft Cord, 1U Rack-Mount. PDU types: Monitored, Rack capacity: 1U, Mounting: Horizontal. AC outlets quantity: 8 AC outlet(s), AC outlet types: NEMA 5–15R, Power plug: NEMA 5–15P. Cable length: 3.6 m, Certification: UL 60950 (USA, Canada), Class A (Emissions), NOM (Mexico). Nominal input voltage: 100-127 V, Maximum current: 15 A, AC input frequency: 50 - 60 Hz. Width: 439.4 mm, Depth: 157.5 mm, Dimensions (WxDxH): 439 x 157 x 43 mm
Tripp Lite single phase Monitored PDU / Power Distribution Unit offers real-time remote monitoring of voltage, frequency and load levels via built-in network connection. PowerAlert interface supports custom notification of user-specified remote conditions via email, secure web, SNMP, Telnet or SSH interface. PDU lighted digital display enables visual monitoring of PDU output current to prevent circuit overloads as additional equipment is added. Offers reliable rackmount multi-outlet power distribution from any protected UPS, generator or mains input power source. High quality design includes rugged all-metal housing and secure rackmount installation with included mounting accessories. - 15A single phase 120V Monitored Power Distribution Unit / PDU (agency derated to 12A continuous) - Attached NEMA 5-15P input plug with 12ft / 3.6m line cord - 1U horizontal rackmount installation format supports installation in 2 or 4 post equipment racks - 8 NEMA 5-15R outlets - Lighted display reports output power consumption in amps - Built-in SNMP/ethernet interface reports voltage, frequency and PDU loading via network or secure web browser interface with options for user specified alarm and notification thresholds - Supports in-rack environmental reporting with optional ENVIROSENSE temperature / humidity sensor and rack access notification with up to 4 optional SRSWITCH door sensors - DHCP/Manual configuration support - 10/100 Mbps auto-sensing allows optimal communication with 10/100 Base-T networks - Real-time clock backup maintains the time of day and date even if the PDU is unpowered - Tiered access privileges allow an administrator and a guest to login via web browser for monitoring - Alert notifications via email or SNMP traps offer immediate event notification - Firmware upgrade ability supports future product enhancements. - Supports HTTP, HTTPS, PowerAlert Network Management System, SMTP, SNMPv1, SNMPv2, SNMPv3, Telnet, SSH, FTP, DHCP, BOOTP, NTP protocols - Fully compatible with FREE PowerAlert Network Management System / NMS Software - Mounting flanges support installation in 2 and 4 post racks, with additional support for wall-mount and under-counter installation formats - Mounting ears are reversible for front or rear facing rackmount installation - Included cord retention brackets keep vital network equipment plugged in and continuously powered - TAA Compliant Version Available - Order Tripp Lite PDUMNH15TAA
