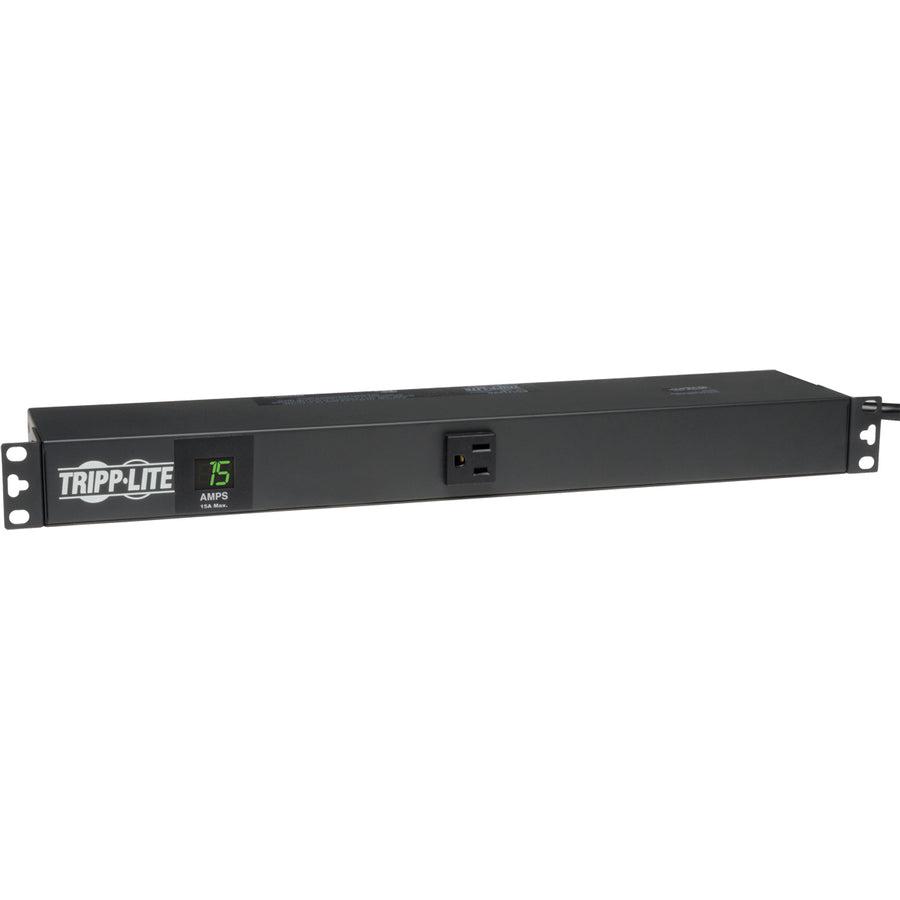

Tripp Lite 1.4kW Single-Phase Metered PDU, 120V Outlets (13 5-15R), 5-15P, 100-127V Input, 15ft Cord, 1U Rack-Mount. PDU types: Metered, Rack capacity: 1U, Mounting: Horizontal. AC outlets quantity: 13 AC outlet(s), AC outlet types: NEMA 5–15R, Power plug: NEMA 5–15P. Cable length: 4.57 m, Certification: UL60950-1/CAN/CSA C22.2 No. 60950-1-03. Nominal input voltage: 100-127 V, Maximum current: 15 A, AC input frequency: 50 - 60 Hz. Width: 508 mm, Depth: 114.3 mm, Dimensions (WxDxH): 444.5 x 114.3 x 44.5 mm
Tripp Lite Metered PDU / Power Distribution Units offer real-time local reporting of load level in amps via built-in digital meter. Enables visual current monitoring of PDU output current to prevent circuit overloads as additional equipment is added. Offers reliable rackmount multi-outlet power distribution from any protected UPS, generator or mains input power source. High quality design includes rugged all-metal housing and secure rackmount installation with included mounting accessories. - 15A single phase 120V Metered Power Distribution Unit / PDU (Agency de-rated to 12A continuous) - Built-in 2 digit visual meter continuously reports PDU load level in amps - Attached NEMA 5-15P 15A 120V input plug with 15 ft. / 4.5m line cord - 1U horizontal rackmount format installs in one rack space - 13 NEMA 5-15R outlets (1 front facing / 12 rear) - Mounting flanges support installation in 2 and 4 post racks, with additional support for wall-mount and under-counter installation formats - Optional PDUSIDEBRKT enables 0U vertical rackmount in compatible racks - Back panel grounding lug
