Trendnet Ti-S24048 V1.0R Network Switch Component Power Supply

Output: 240W, 48V, 5A, Input: 100-240V AC, 50/60Hz, 1.8A 125-370V DC, MTBF 1.693.000h, 1.03kg

Trendnet TI-S24048 v1.0R. Product type: Power supply, Product colour: Metallic, Power protection features: Over voltage, Overload, Short circuit. Total power: 240 W, AC input voltage: 100 - 240 V, AC input frequency: 50 - 60 Hz. Width: 40 mm, Depth: 125 mm, Height: 114 mm

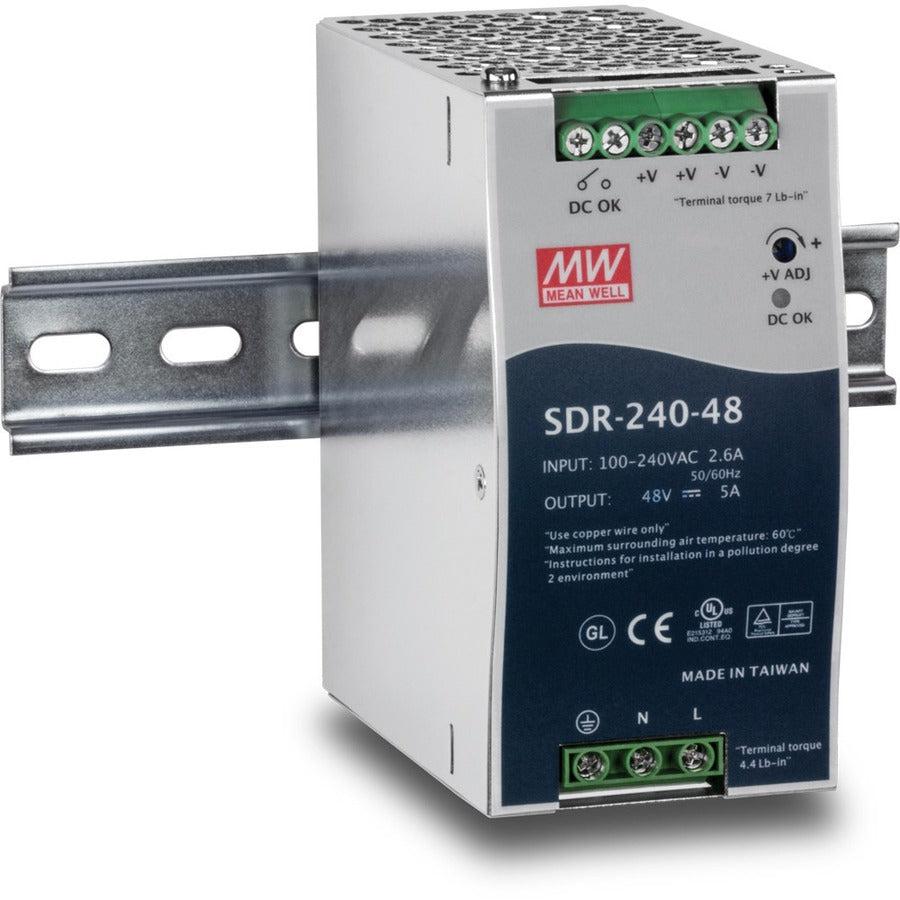

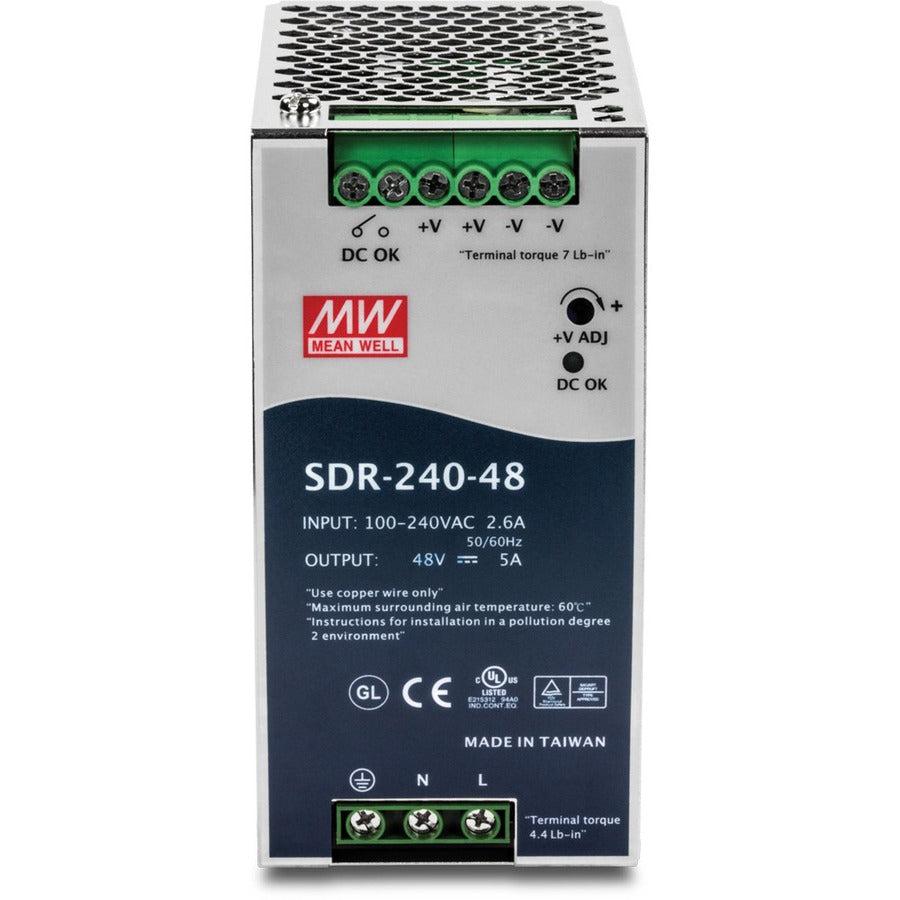

TRENDnet’s high efficiency 240 W Single Output Industrial DIN-Rail Power Supply, model TI-S24048 (Mean Well SDR-240-48), supplies up to 240 Watts (48 V, 5 A) of power to industrial PoE equipment such as switches, network cameras, and WiFi access points. This power supply comes with active PFC, an integrated DIN-rail mount, and overload current protection.

240 Watt Power

Provides up to 240 Watts (48 V, 5 A) of power for PoE devices such as switches, network cameras, and access points

Active PFC

The built-in active Power Factor Controller (PFC, PF > 0.93) helps eliminate unusable reactive power

Overload Protection

Overload/short circuit/over voltage/over temperature protection

Full Load Test

This power supply undergoes a 100 % full load burn-in test

Passive Cooling

Cooling by free air convection

DIN-Rail Mount

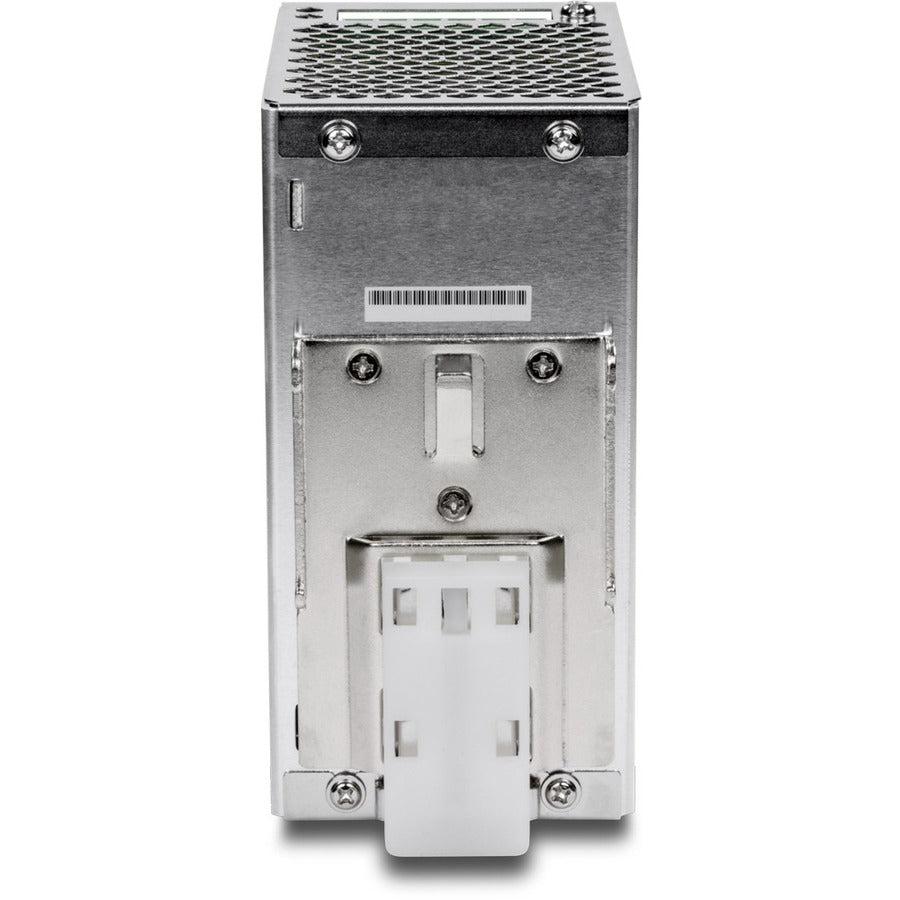

Metal enclosure with integrated DIN-rail mount

Extreme Temperatures

Rated for an operating temperature range of -25 to 70 °C (-13 to 158 °F)

Safety Certifications

Certified for UL 508 and TUV EN60950-1

Electro Magnetic Emission/Immunity

Compliance to EN55011, EN55022 (CISPR22), EN61204-3 Class B, EN61000-3-2/3, EN61000-4-2, 3, 4, 5, 6, 8, 11, EN55024, EN61000-6-2, EN61204-3, heavy industry level, criteria A, SEMI F47, and GL approved

Vibration Resistant

Rated for vibration

LED Indicator

LED indicator confirms power to the unit
