5-Port Industrial Gigabit PoE+ Wall-Mounted Front Access Switch
Trendnet TI-PG50F. Switch type: Managed. MAC address table: 2 entries, Switching capacity: 10 Gbit/s. Networking standards: IEEE 802.3,IEEE 802.3ab,IEEE 802.3af,IEEE 802.3at,IEEE 802.3u,IEEE 802.3x. Power over Ethernet (PoE). Rack mounting
TRENDnet’s Industrial Gigabit PoE+ Wall-Mounted Front Access Switch Series are well suited for IP surveillance, IoT, and automation networks for homes and businesses. These hardened industrial gigabit flat switches provide front access to ports and power interfaces for easier installation. The flat and compact size make them ideal for cabinet installations where space is limited. Each hardened industrial front access switch features gigabit PoE+ ports for connecting devices such as wireless access points, IP cameras, and IoT appliances. These hardened front access switches come equipped with an IP30 rated metal enclosure, designed to withstand a high degree of vibration and shock, while operating within a wide temperature range of -40° – 75° C (-40° – 167° F) for industrial environments.

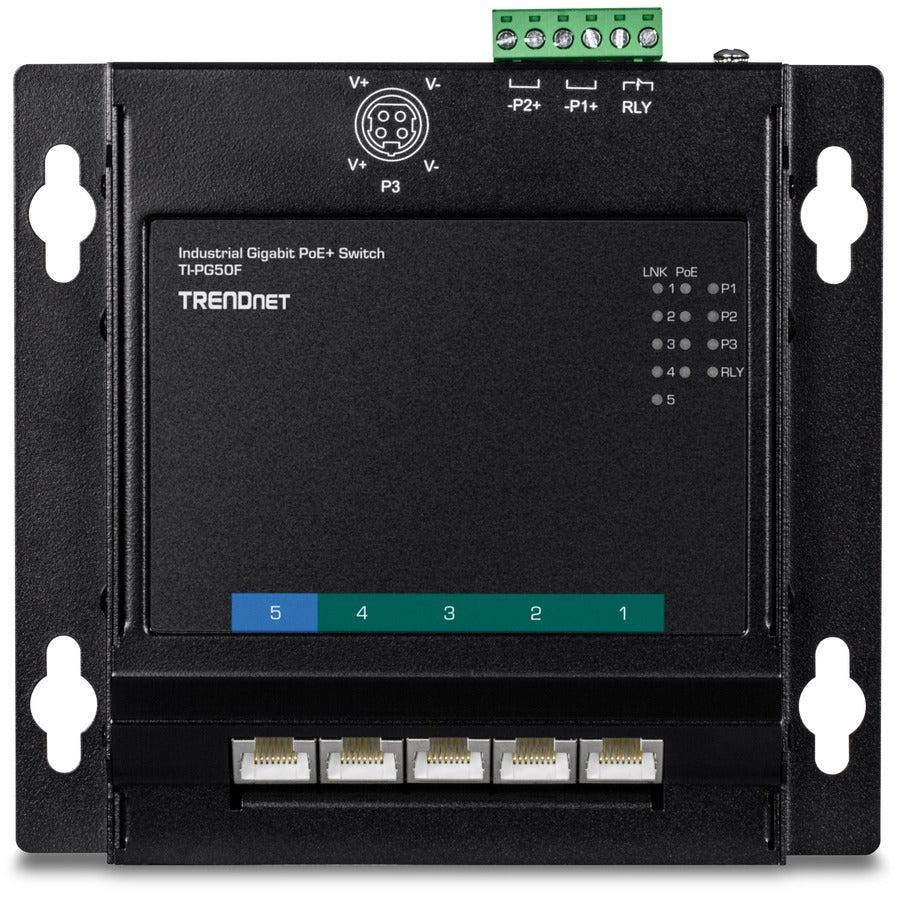

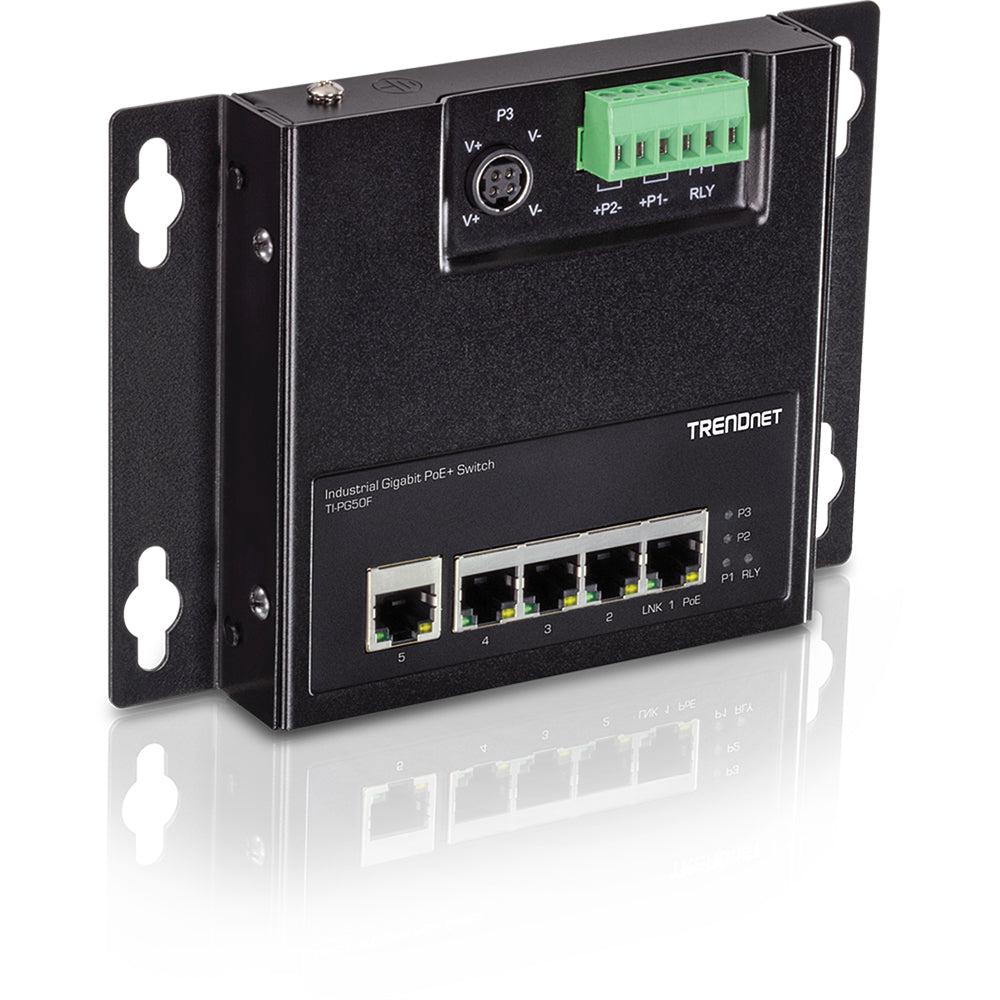

Wall-Mounted Front Access Switch The wall mountable flat switch provides front access to ports and power interfaces for easier installation. It’s flat and compact size make it ideal for cabinet installations where space is limited.
PoE+ Power A 120W PoE power budget supplies PoE power from the hardened industrial front access switch to up to five Power over Ethernet devices.
Hardened Industrial Design Equipped with an IP30 rated metal enclosure, this front access switch is designed to withstand a high degree of vibration and shock, while operating within a wide temperature range of -40° – 75° C (-40° – 167° F) for industrial environments.

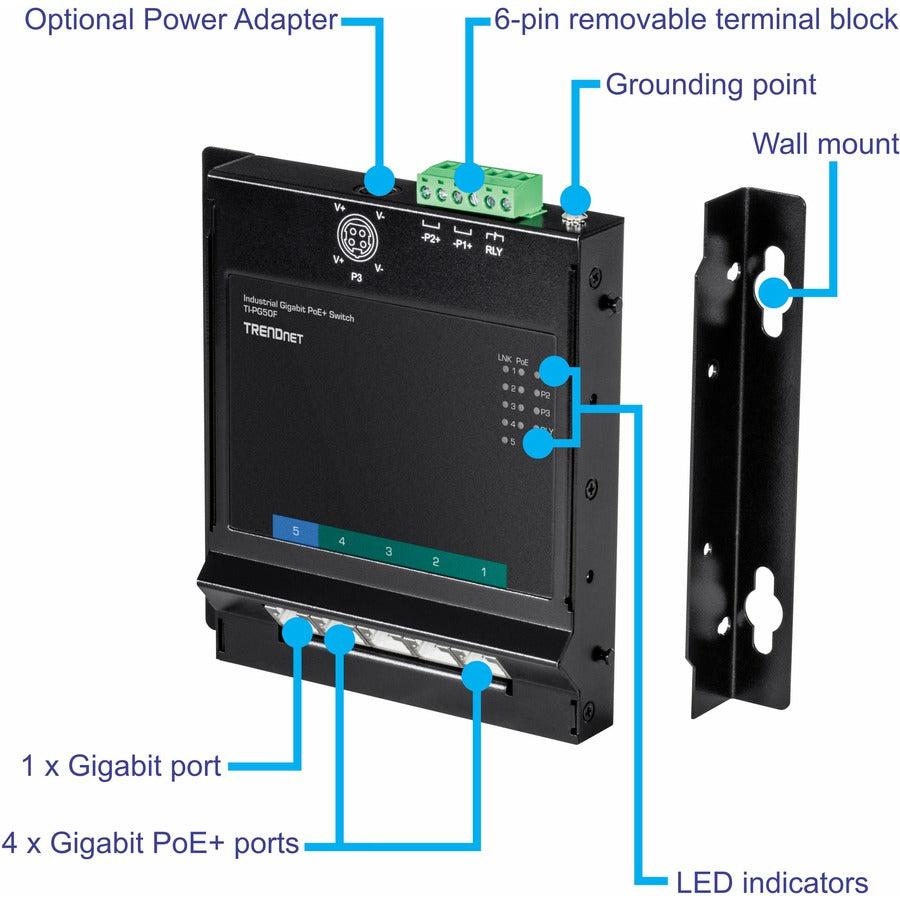

Network Ports 4 x Gigabit PoE+ ports and 1 x Gigabit port
PoE Power Supplies up to 30W of PoE+ power per port with a 120W power budget

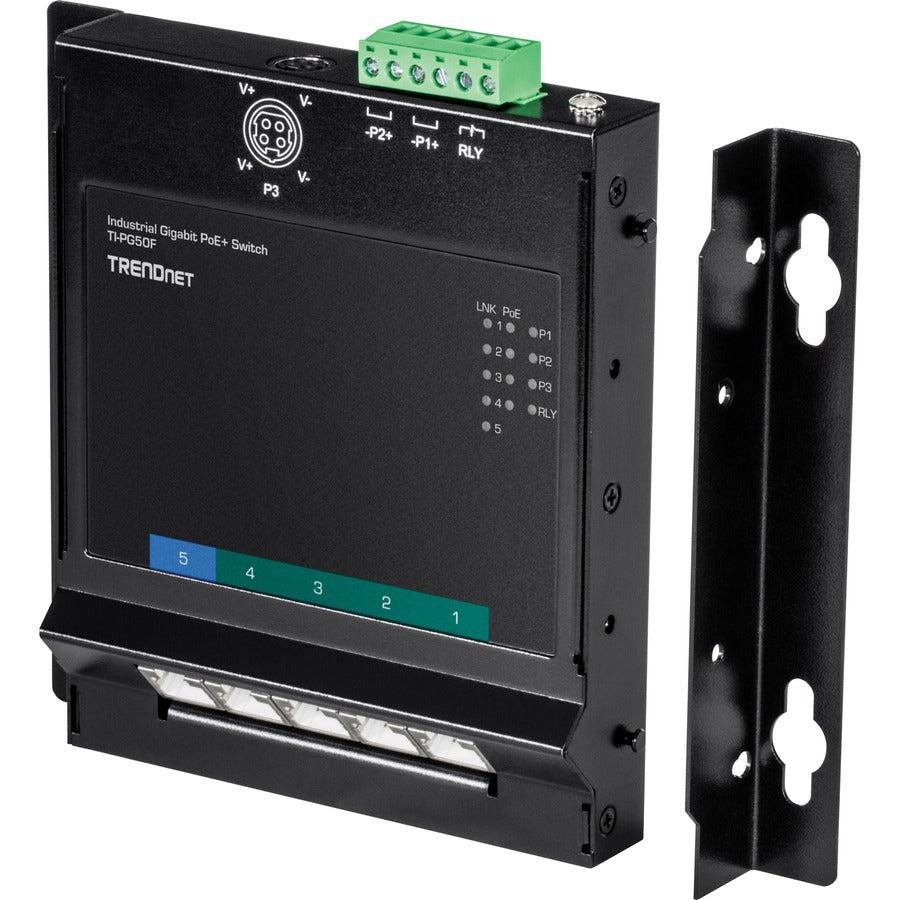

Hardware Design Wall mountable hardware design provides front access to ports and power interfaces for easier installation

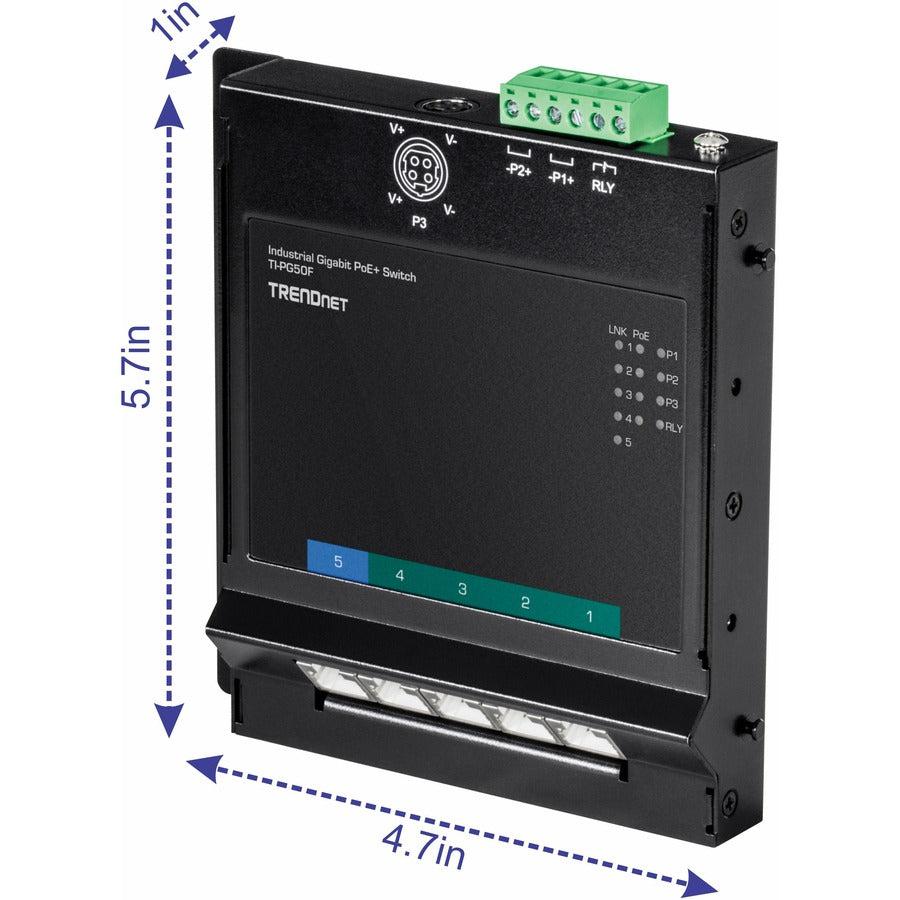

Compact The flat and compact size makes the front access switch ideal for cabinet installations where space is limited

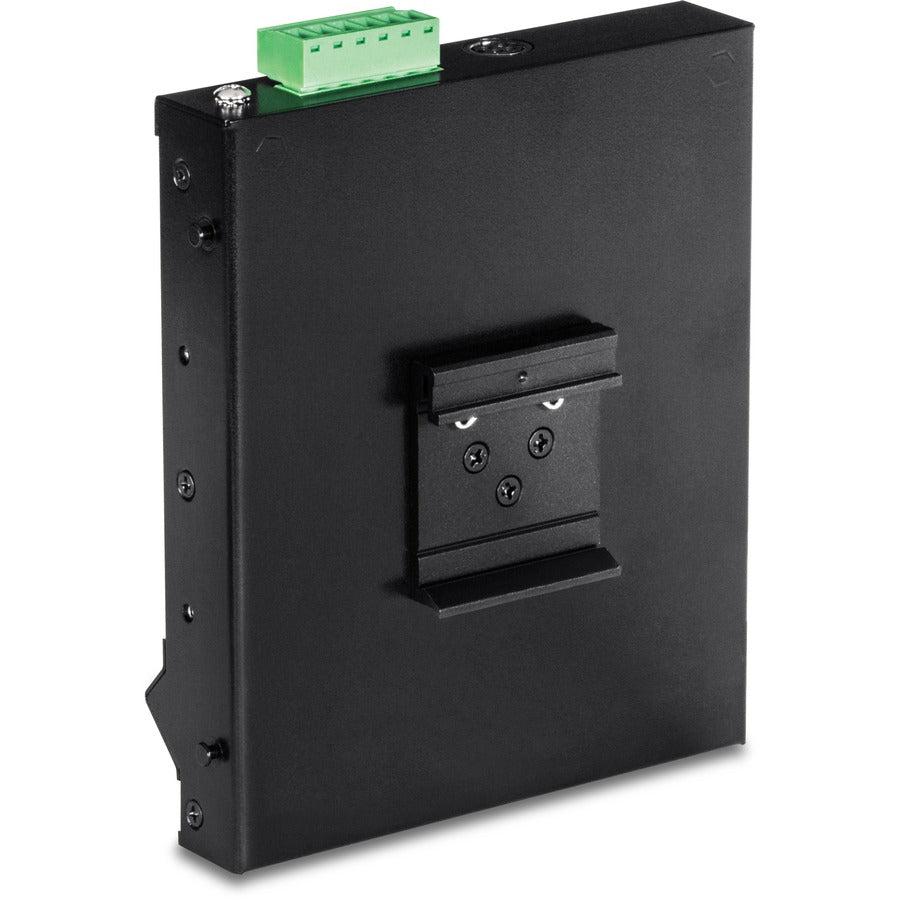

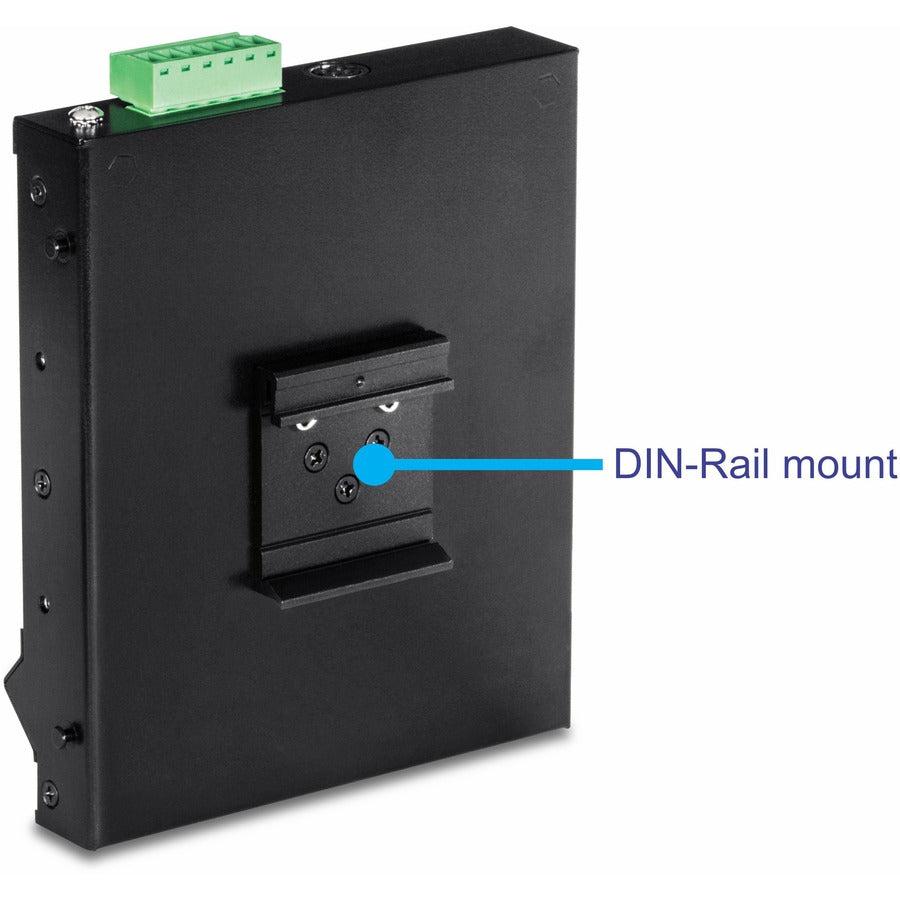

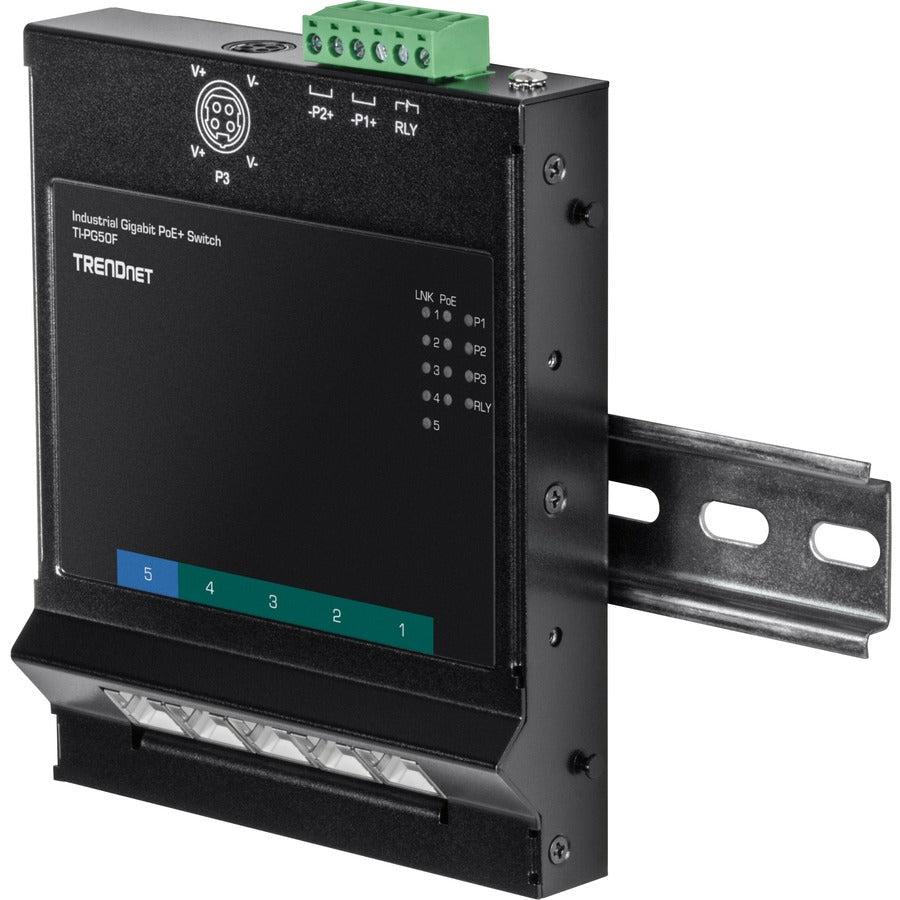

DIN-Rail Mount Includes DIN-Rail mounting bracket
Switching Capacity 16Gbps switching capacity
Redundant Power Dual redundant power inputs with overload current protection (power supply sold separately: TI-S12048, TI-S24048, and 48VDC3000)
Alarm Relay Alarm relay output triggered by power failure of primary or secondary power inputs
Jumbo Frames Sends larger packets, or jumbo frames (up to 9KB), for increased performance
Wide Temperature Range Hardened industrial housing offers a wide operating temperature range of -40° – 75° C (-40° – 167° F), allowing for installations in extreme hot and cold environments
Shock and Vibration Resistant Hardened design rated for shock (EN 60068-2-27), freefall (EN 60068-2-32), and vibration (EN 60068-2-6) for industrial settings
Grounding Point Grounding point protects equipment from external electrical surges
LED Indicators Front access switch with LED indicators that convey power and port status
