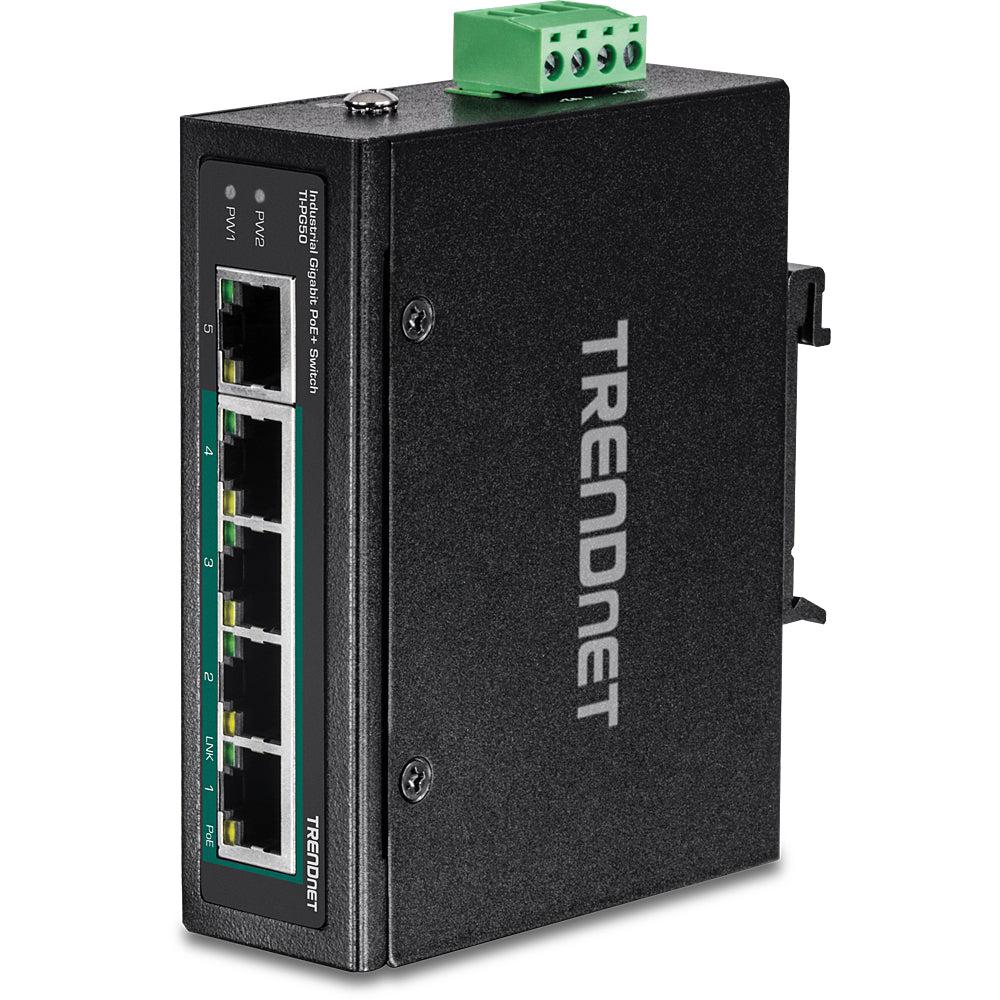

This TRENDnet TI-PG50 Industrial Gigabit Switch is perfect for automation engineers and industrial facilities that need ruggedized PoE+ networking for harsh environments. Our solution delivers:
-
5-port gigabit connectivity that provides high-speed industrial networking
-
PoE+ power delivery for connected devices in remote locations
-
Industrial networking equipment optimization ensuring reliable operation
-

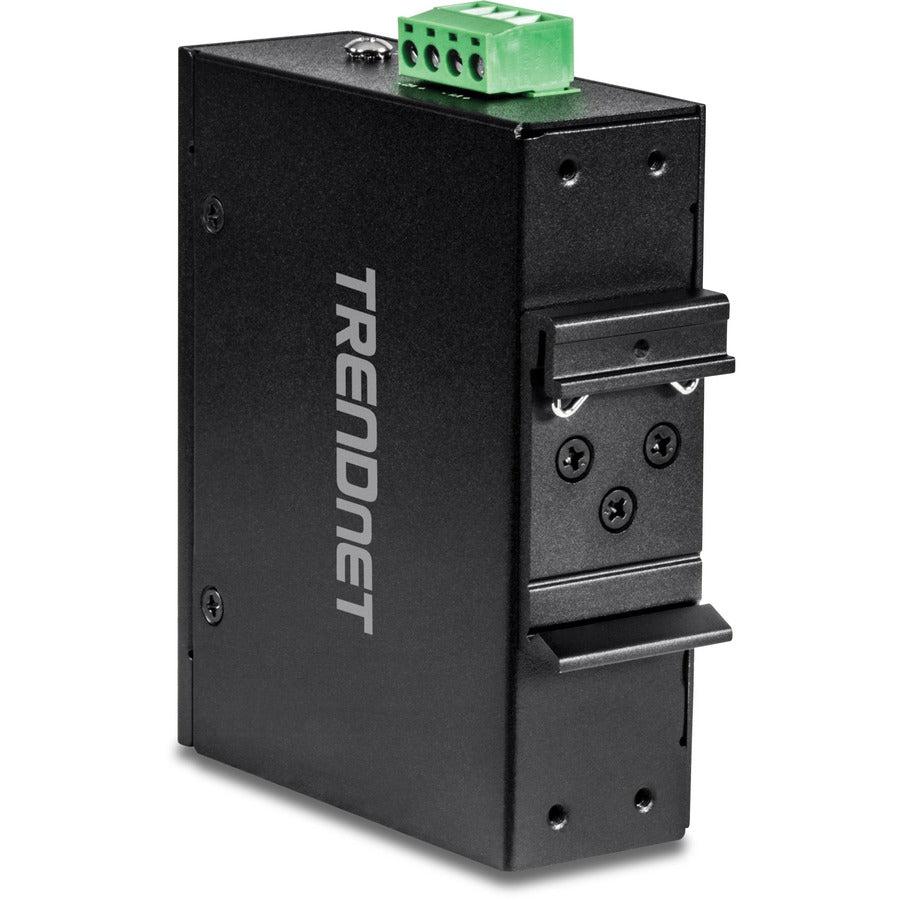

DIN-Rail mounting for easy installation in control cabinets
Key Features
-

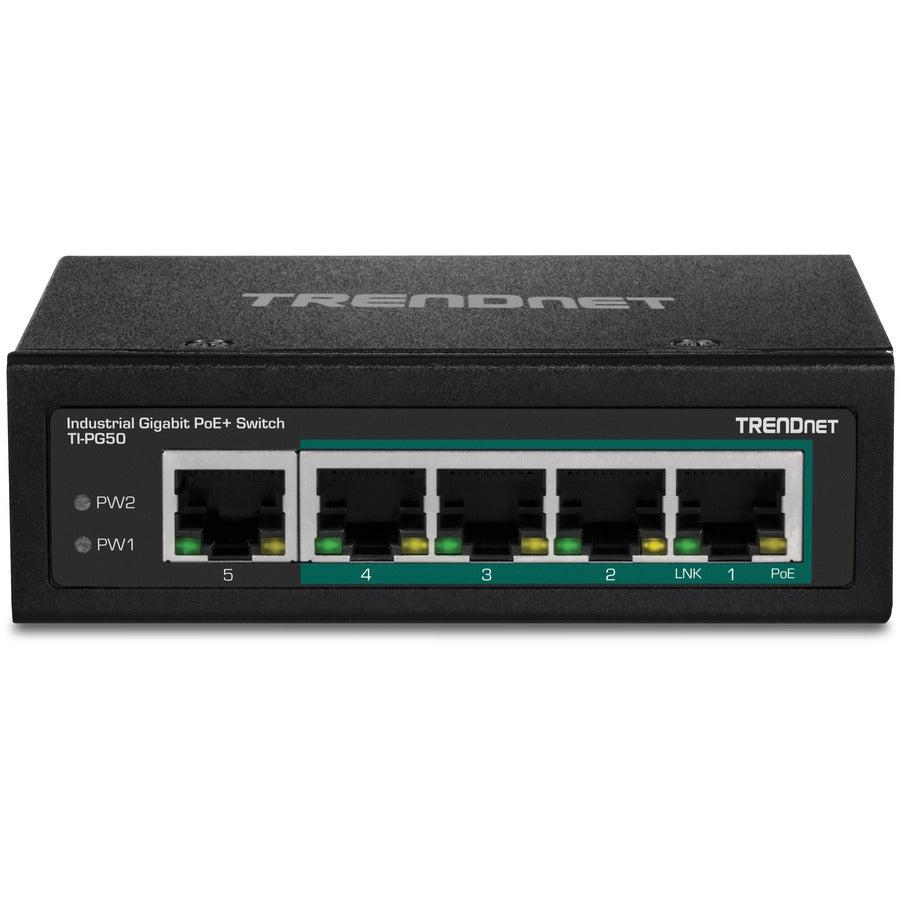

5 x Gigabit Ethernet ports to connect industrial devices and equipment
-
4 x PoE+ ports delivering up to 30W per port
-
IP50 protection rating for dust and debris resistance
-
Extended temperature range from -40°C to 75°C operation
-

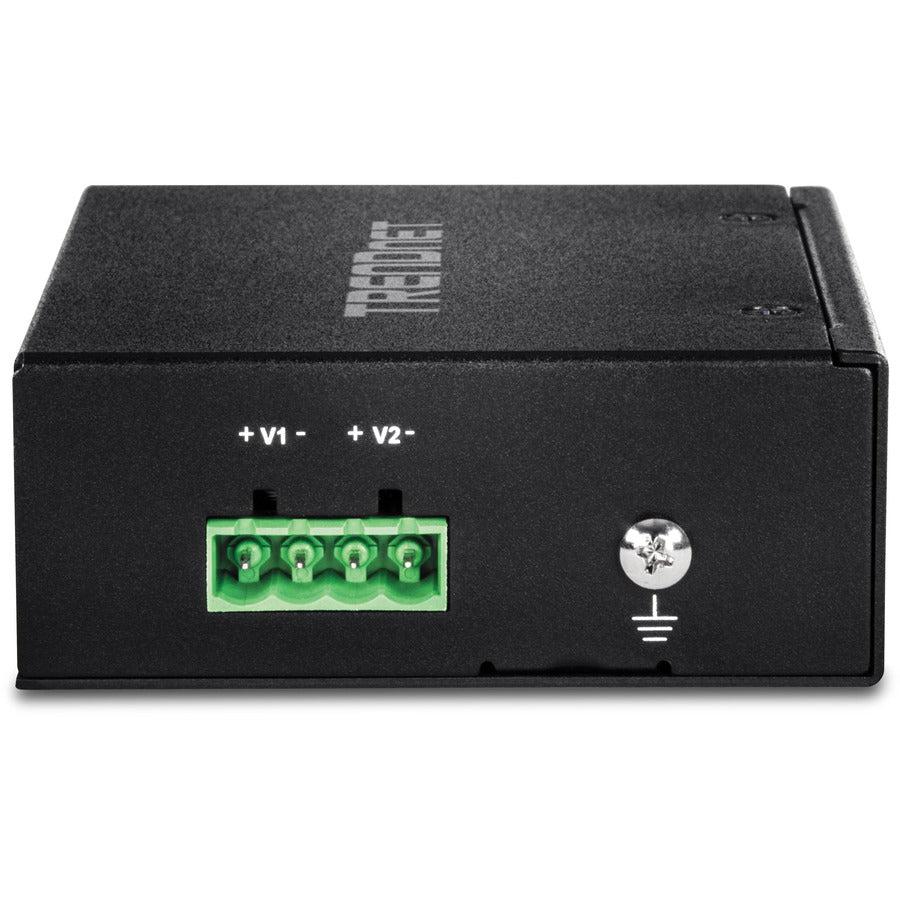

Redundant power inputs ensuring continuous operation
-

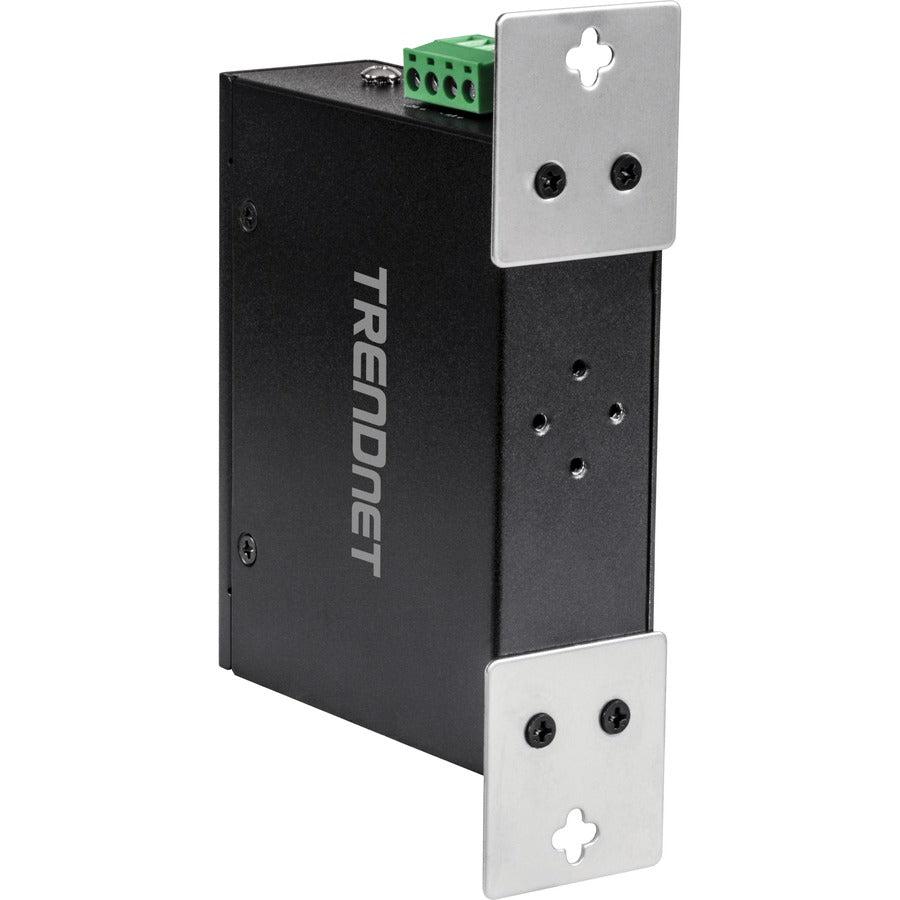

DIN-Rail mounting design for industrial panel installation
-
Non-blocking switching fabric for full wire-speed performance
-
Auto-negotiation and MDI/MDIX for simplified connectivity
Technical Specifications
| Manufacturer |
TRENDnet |
| Model Number |
TI-PG50 |
| Type |
5-Port Industrial Gigabit PoE+ Switch |
| Port Configuration |
5 x 10/100/1000 Mbps (4 PoE+ capable) |
| PoE+ Power Budget |
120W total power budget |
| PoE+ per Port |
30W maximum per port |
| Switching Capacity |
10 Gbps |
| Packet Forwarding Rate |
7.44 Mpps |
| MAC Address Table |
8,000 entries |
| Operating Temperature |
-40°C to 75°C (-40°F to 167°F) |
| Storage Temperature |
-40°C to 85°C (-40°F to 185°F) |
| Humidity |
5% to 95% non-condensing |
| Protection Rating |
IP50 (dust protection) |
| Power Input |
Redundant 24-56VDC power inputs |
| Power Consumption |
150W maximum (with full PoE load) |
| Mounting |
DIN-Rail (35mm standard rail) |
| Dimensions |
105 x 123 x 85 mm |
| Compatible Systems |
Industrial automation, manufacturing systems, outdoor installations |
Frequently Asked Questions
Q: What makes this switch suitable for extreme temperature environments?
A: The TRENDnet TI-PG50 extreme temperature switch operates reliably from -40°C to 75°C, making it perfect for outdoor installations, manufacturing floors, and harsh industrial environments where standard networking equipment would fail.
Q: How does the IP50 rating benefit industrial applications?
A: The IP50 rated protection provides dust ingress protection, ensuring reliable operation in dusty industrial environments, manufacturing facilities, and automation applications where particulate matter could damage standard networking equipment.
Q: What advantages do the redundant power inputs provide?
A: The redundant power design with dual 24-56VDC inputs ensures continuous network operation even if one power source fails, providing critical uptime for industrial automation systems and mission-critical applications.
Q: Which devices can benefit from the PoE+ capability?
A: The 4 PoE+ ports delivering 30W each can power industrial cameras, wireless access points, VoIP phones, and other PoE-enabled devices, eliminating the need for separate power supplies in remote industrial locations.
Q: How does DIN-Rail mounting benefit industrial installations?
A: The DIN-Rail mounting system allows easy installation in standard industrial control cabinets and electrical panels, providing secure mounting and easy maintenance access for industrial automation and control systems.
Q: Is this switch suitable for outdoor industrial applications?
A: Yes, with its extended temperature range, IP50 protection, and ruggedized design, this industrial networking switch excels in outdoor installations, mining operations, oil and gas facilities, and other challenging industrial environments.
TRENDnet TI-PG50 5-port industrial gigabit PoE+ DIN-Rail switch with IP50 rating, extreme temperature operation, and redundant power for harsh environments.
