Trendnet TI-PG102I. Switch type: Managed, Switch layer: L2. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 8. Full duplex. MAC address table: 8000 entries, Switching capacity: 20 Gbit/s. Networking standards: IEEE 802.1AX,IEEE 802.1D,IEEE 802.1Q,IEEE 802.1ab,IEEE 802.1p,IEEE 802.1w,IEEE 802.1x,IEEE.... DC input voltage: 24 - 57 V. Power over Ethernet (PoE)

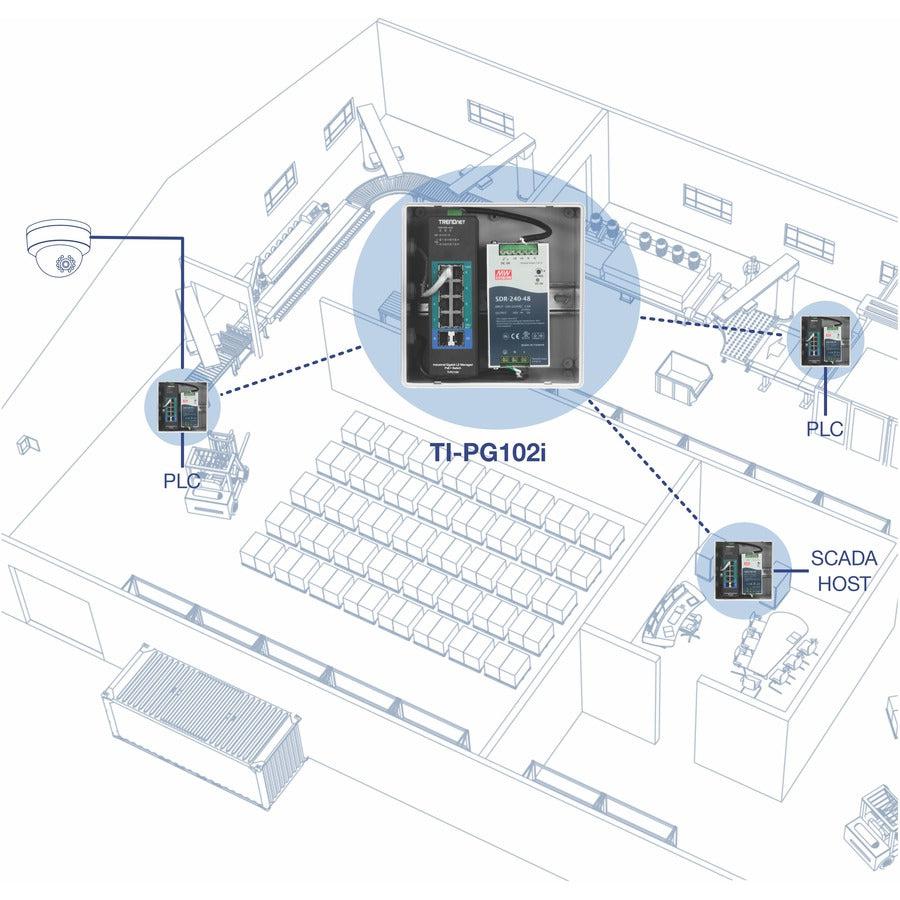

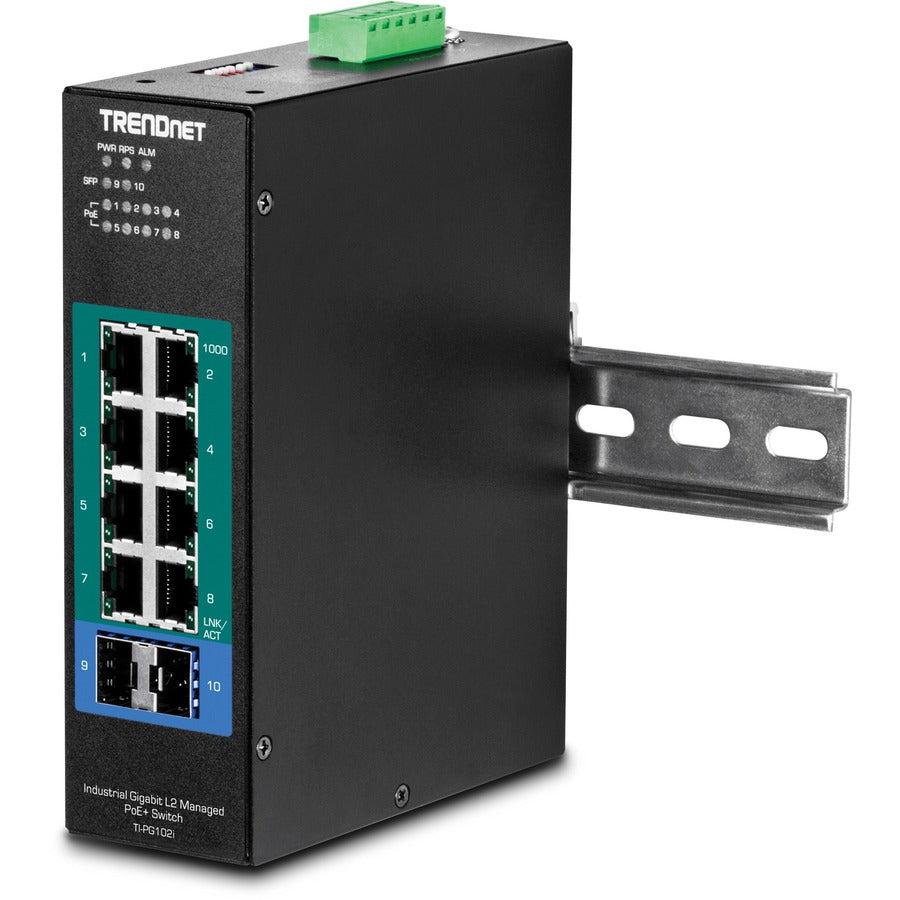

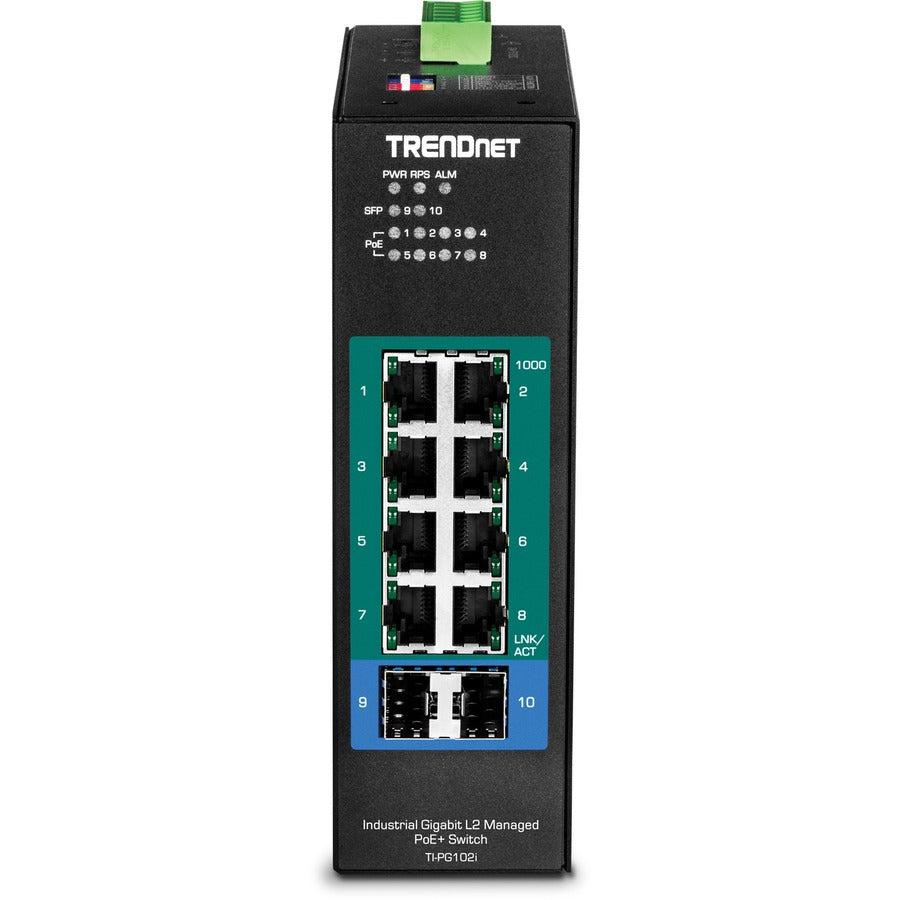

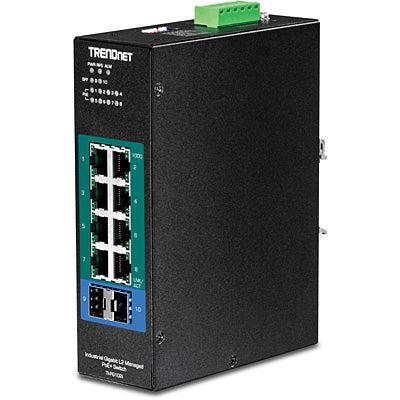

TRENDnet’s 10-Port Industrial Gigabit L2 Managed PoE+ DIN-Rail Switch, model TI-PG102i, features eight Gigabit PoE+ ports with a 240W PoE budget, and includes two SFP slots that support both 100Base-FX and 1000Base-FX modules for long distance fiber applications. The hardened switch is equipped with an IP30 rated metal enclosure, designed to withstand a high degree of vibration and shock, while operating within a wide temperature range of -40° – 75° C (-40° – 167° F) for industrial environments. Advanced traffic management controls, troubleshooting, and SNMP monitoring support make this a powerful solution for SMB networks.
PoE Power A 240W PoE power budget supplies up to eight Power over Ethernet devices, and includes advanced PoE port controls such as enabling / disabling PoE, power priority, PD alive check, and power scheduling.
Integration Flexibility Managed features include access control lists, VLAN, IGMP snooping, QoS, RMON, SNMP trap, and syslog for monitoring and flexible network integration.
Industrial Design Equipped with an IP30 rated metal enclosure, designed to withstand a high degree of vibration and shock, while operating within a wide temperature range of -40° – 75° C (-40° – 167° F) for industrial environments.
Network Ports 8 x Gigabit PoE+ ports, 2 x Gigabit SFP Slots
PoE Power Supplies up to 30W of PoE+ power per port with a 240W power budget
Full PoE Control Per Port Available PoE port controls include enabling / disabling PoE, power priority, PD alive check, and power scheduling
Traffic Management Managed features include 802.1Q, MAC & Port Isolation VLAN, IGMP Snooping, per port bandwidth control / 802.1p / DSCP / Queue Scheduling (SPQ / WRR), STP / RSTP spanning tree, and link aggregation for flexible network integration
Access Control Managed access control features include ACLs, IP-MAC-Port binding, ARP inspection, 802.1X RADIUS, MAC address learning, DHCP snooping and IP Source Guard provides layered network access controls
System Monitoring Monitoring features include SNMP v1 / v2c / v3, MIB support, SNMP trap, RMON Groups (1, 2, 3, 9), SMTP alert, syslog, port mirroring, and SFP DDMI

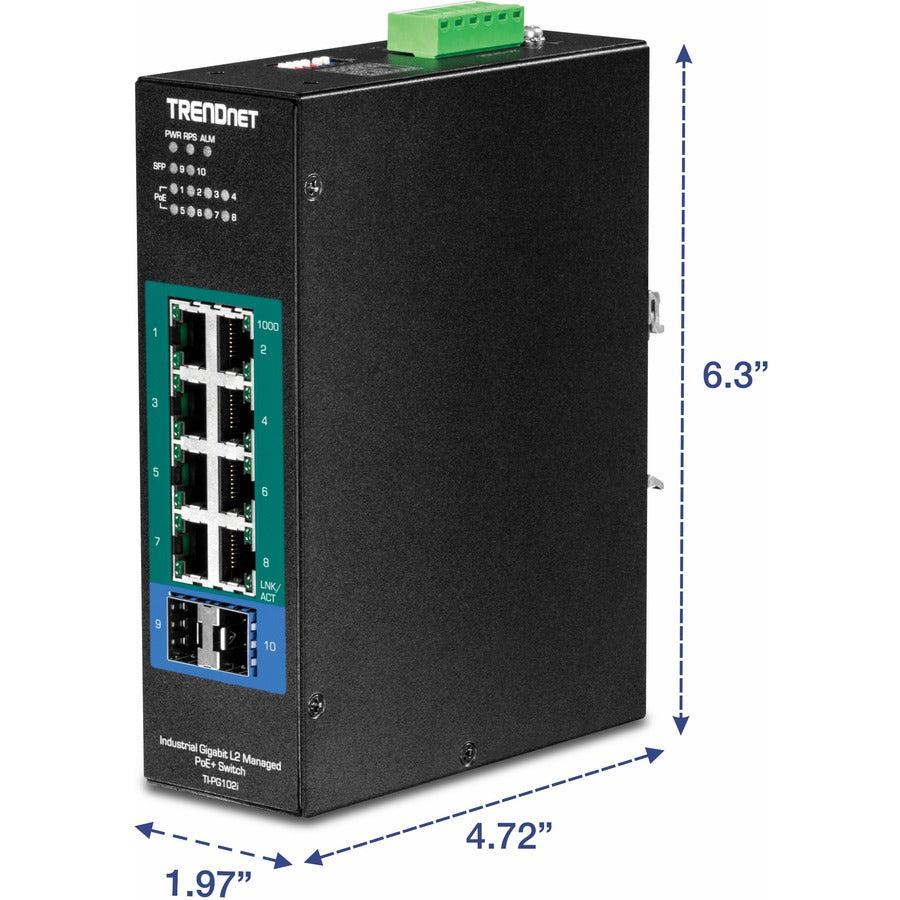

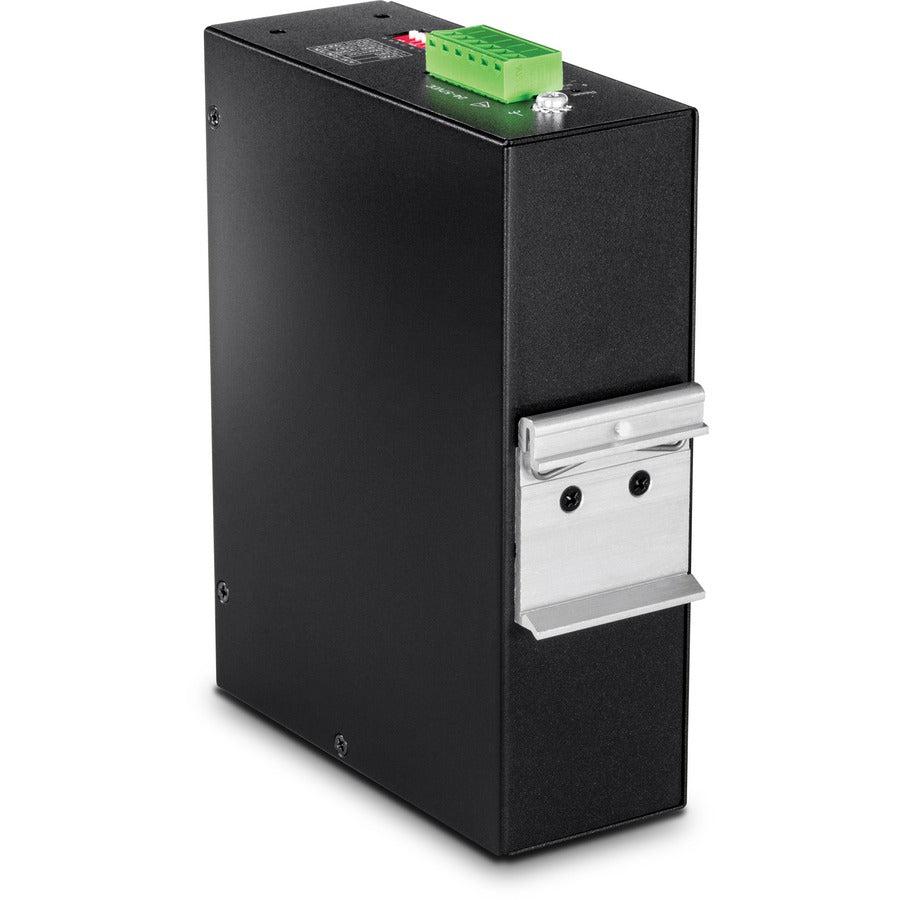

DIN-Rail Mount IP30 rated metal enclosure includes DIN-rail mounting bracket
Switching Capacity 20Gbps switching capacity
Redundant Power Dual redundant power inputs with overload current protection (power supply sold separately: TI-S24048, TI-S48048, TI-S12024)
Alarm Relay Alarm relay output triggered by power failure of primary and / or redundant power
Jumbo Frame Sends larger packets, or Jumbo Frames (up to 10KB), for increased performance
Wide Temperature Range A wide operating temperature range of -40° – 75° C (-40° – 167° F) allows for installations in extreme hot or cold environments
Shock and Vibration Resistant Rated for shock (EN 60068-2-27), freefall (EN 60068-2-32), and vibration (EN 60068-2-6)
Grounding Point Grounding point protects equipment from external electrical surges
