Trendnet TEG-10GBS10. SFP transceiver type: Fiber optic, Maximum data transfer rate: 10000 Mbit/s, Interface type: SFP+. Certification: CE, FCC. Power consumption (typical): 0.522 W. Width: 14.8 mm, Depth: 56.5 mm, Height: 11.8 mm

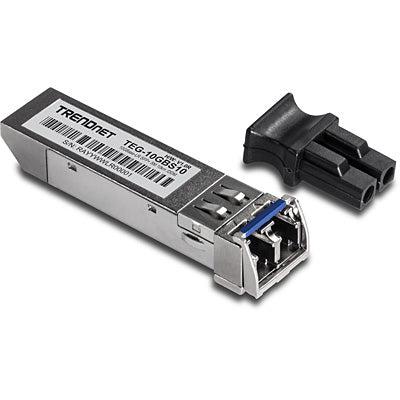

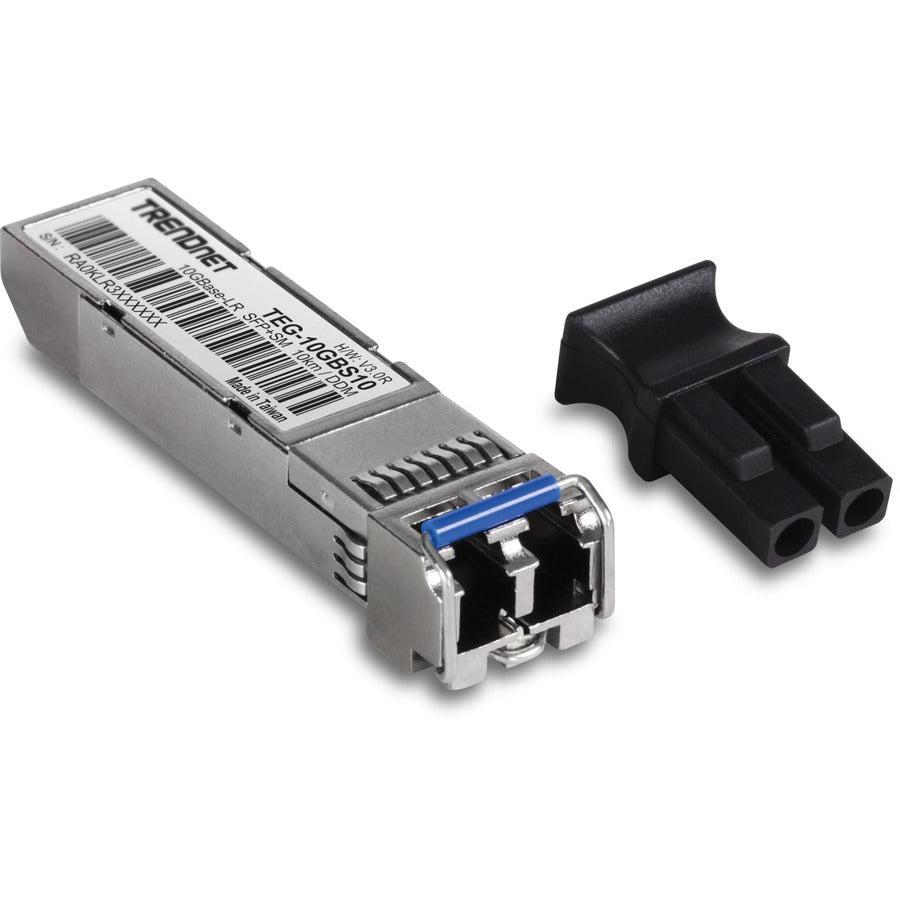

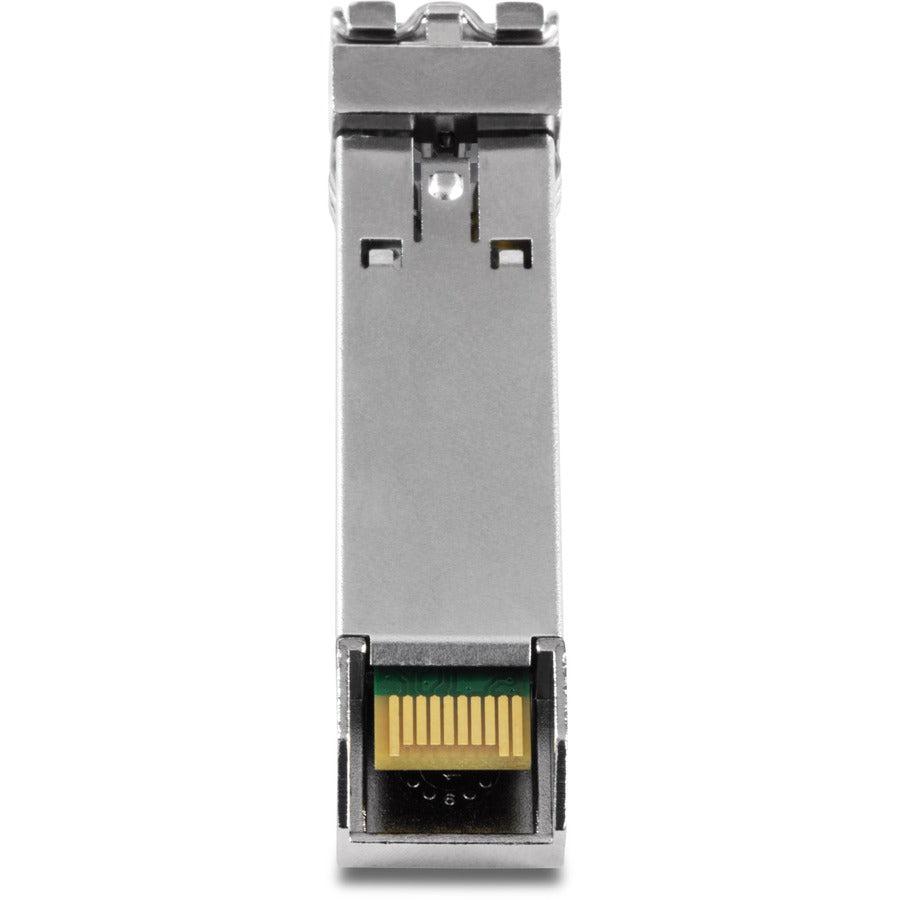

TRENDnet’s hot-pluggable TEG-10GBS10, 10GBASE-LR SFP+ Single Mode LC Module, works with a MSA compliant SFP+ slot. This Single Mode transceiver spans distances up to 10 km (6.2 miles), comes with a LC duplex connector, and supports up to 10.5 Gbps networking throughput speeds. Digital Diagnostics Monitoring (DDM) captures critical device parameters such as transmit/receive power, temperature, and voltage.
Hot-Pluggable SFP+ Hot-pluggable SFP+ transceiver works with a MSA compliant SFP+ slot
Fiber Wavelength Compatible with Single Mode 1310 nm transmissions
Fiber Distance Supports networking for distances up to 10 km (6.2 miles)
Fiber Port LC-type duplex connector
DDM Support Digital Diagnostics Monitoring (DDM) captures critical device parameters such as transmit/receive power, temperature, and voltage
Power Supply Single 3.3 volt power supply
Operating Temperature Rated for an operating temperature range of 0 to 70 °C (32 to 158 °F)
Standards Compliant with SFF-8431, SFF-8432, SFF-8472, 10G FC Rev 4.0, FC-PI-4 Rev 7.0, and IEEE802.3ae 10GBASE-LR/LW
