TREND Networks Copper and Fiber Network Transmission Tester
If you install, maintain or troubleshoot data cabling and Ethernet networks, SignalTEK NT allows you to prove the performance up to Gigabit Ethernet transmission rates.
By simulating actual network traffic users are able to test and document network and data cable performance to Gigabit Ethernet standards.
Where system warranties are not required the SignalTEK NT is a cost effective way of proving your copper and fiber networks provide error-free performance.
Transmission testing proves real performance
There is no industry standard defining the testing requirements of cable qualifiers, consequently passing a qualification test does not prove that the installed structured cabling will provide flawless data transmission.
Uniquely, SignalTEK NT utilizes a test method known in wide area networks as transmission testing to prove the performance of a network by sending real Ethernet data frames through the cabling and/or network devices to compare the error rate against the IEEE802.3ab Gigabit Ethernet standard. This provides a clear standards based Pass/Fail of the link being tested.

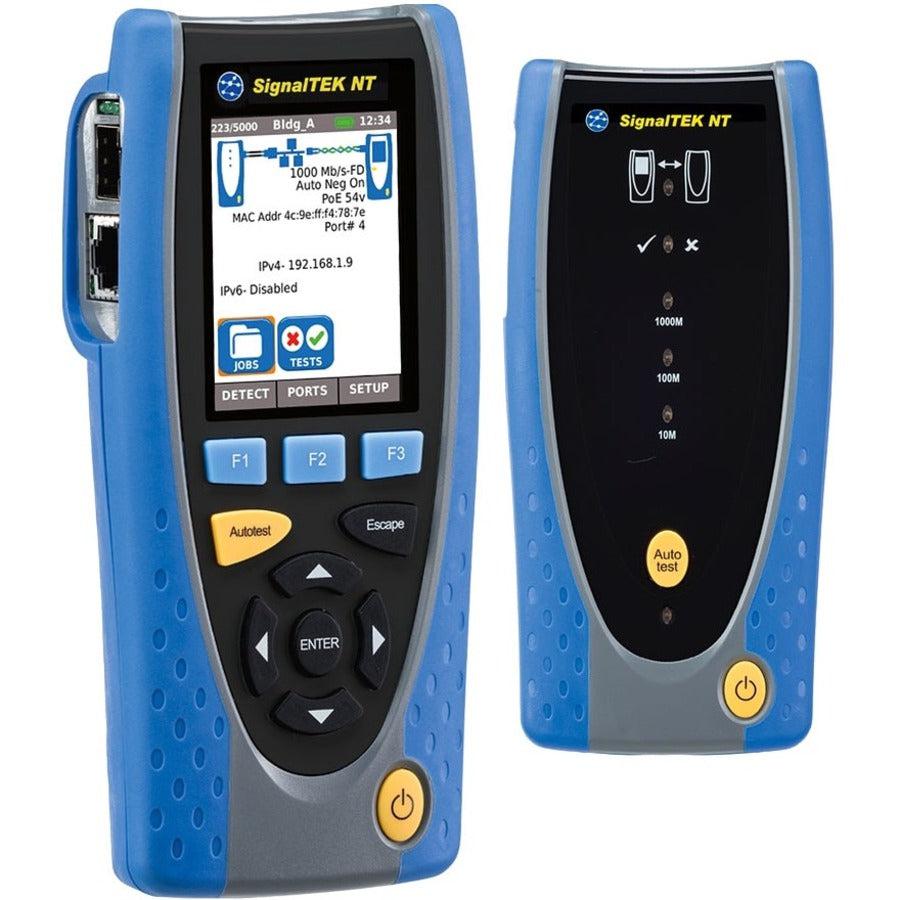

SignalTEK NT requires no configuration from the user as the two handsets automatically pair ready for testing; just select a usage scenario to simulate the appropriate service, from VoIP to CCTV, Video and web traffic.
Installation testing | Cabling:
- Network traffic performance test on copper and fiber to IEEE802.3ab standard
- Wiremap test for open, shorts, miswires and split pairs to TIA-568 standard
- Gigabit link verification for copper and fiber cabling
- Use a list of wiremap templates for common Ethernet cable types including CAT 6A/7A/8, and non-Ethernet cable, such as Profinet and ISDN.
Active network:
- Network load testing through switches simulating CCTV/IPTV/VoIP/Web traffic
- PoE/PoE+ verification that displays available voltage at device location
- Check Ethernet connectivity at device location to 10/100/1000 Mb/s
- Verify network configuration (device IP/gateway address/subnet mask)
- Switch port identification via LLDP/CDP protocols
Troubleshooting/diagnostics | Cabling:
- Distance to fault using TDR technology (copper only)
- Ability to identify and trace cables with a compatible amplifier probe (62-164)
- Optical power indication (with compatible SFP modules)
Active network:
- Network load testing through switches simulating CCTV/IPTV/VoIP/Web traffic
- Stress test network before installing bandwidth hungry devices
- Port blink to visually trace cable from work area outlet to network switch
- Displays port ID of LLDP/CDP enabled switches to eliminate manual cable tracing
Product Type: Cable Analyzer
Brand Name: TREND Networks
Manufacturer: TREND Networks
Product Name: Copper and Fiber Network Transmission Tester
Product Line: SignalTEK NT
Manufacturer Part Number: R156005
Manufacturer Website Address: http://www.trend-networks.com

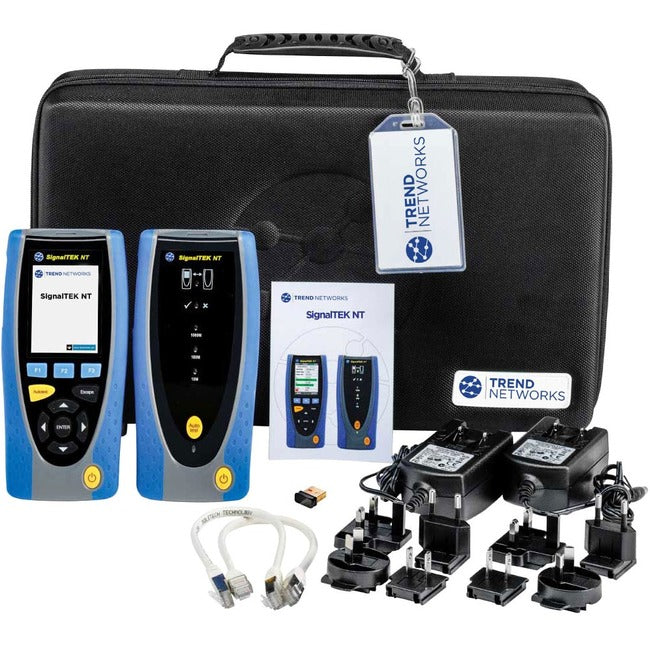

Package Contents:
- Copper and Fiber Network Transmission Tester
- 1 x Display with Touchscreen
- 1 x Remote
- 2 x NiMH Batteries
- 2 x Patch Cables - 12 inch
- Cat 5e STP
- 2 x Power Supply with EU/UK/US Adapters
- 1 x USB Wi-Fi Adapter
- 1 x Quick Reference Guide
- 1 x Carry Case
Weight (Approximate): 14.08 oz
