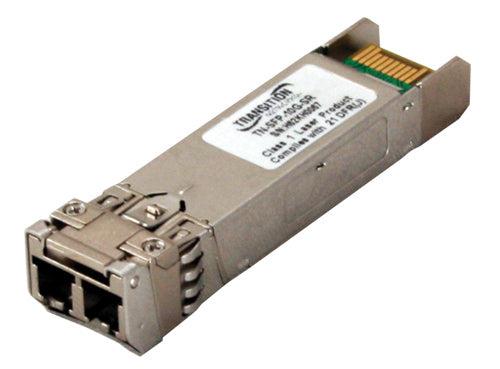

Transition Networks Tn-Sfp-10G-Sr Network Transceiver Module 10000 Mbit/S Sfp+ 850 Nm

10GBase-SR, SFP+ w/ Digital Diagnostics (DMI) 850nm (LC) [300/82/33 m; 985/269/108 ft.] Link Budget: 4.0 dB

Transition Networks TN-SFP-10G-SR. Maximum data transfer rate: 10000 Mbit/s, Interface type: SFP+, Fiber optic connector: LC. Certification: IEC-60825; FDA 21; CFR 1040.10; 1040.11. Power consumption (typical): 0.66 W. Width: 13 mm, Depth: 55 mm, Height: 8 mm

The Transition Networks TN-SFP-10G-xx series 10G SFP+ transceiver modules are designed to install in any SFP+ port allowing for 10GBase-X interfaces to the network through the SFP+ connector. The TN-SFP-10Gxx transceivers are Cisco compatible* and are designed for bi-directional serial-optical data communication such as 10G Ethernet at speeds up to 10.3 Gbps.

*Transition Networks’ SFP+ modules fully comply with the Multi-Sourcing Agreement (MSA). This compliance allows our SFP+ modules to be used in all other MSA compliant SFP+ platforms. In addition, TN SFP modules are also compatible with all Cisco SFP+ based routers and switches, as well as Cisco’s IOS software. TN SFP+ modules ARE NOT Cisco OEM brand modules.

- SFP+ Optical Transceiver with LC connector
- 10G small Form-Factor Pluggable (SFP+) MSA compatible
- Compliant with IEEE 802.3ae 10GBASE-SR/LR/LW
- SFF-8472 Digital Diagnostic Function (DMI)
- Maximum Link Length of 80KM
- Single +3.3 V Power Supply
- RoHS Compliant (all models)
- Class 1 Laser International Safety Standard IEC 60825 Compliant
