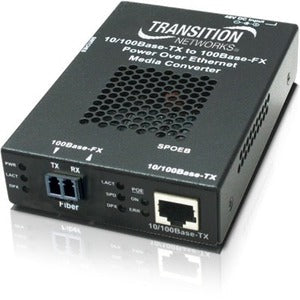

This media converter is perfect for network engineers, facilities managers, and IT professionals who need reliable Power over Ethernet connectivity over fiber optic infrastructure. Our SPOEB1013-105-NA delivers:
-
PoE power delivery up to 15.4W for powered devices
-
10/100Base-TX to 100Base-FX conversion for copper-to-fiber network extension
-
Multimode SC connector for medium-distance fiber connections
-
Professional-grade reliability for mission-critical PoE applications
Key Features
-
Power over Ethernet support enabling remote device power delivery
-
10/100Base-TX copper interface with auto-negotiation capability
- Reliable 100Base-FX fiber interface with multimode SC connector
- Integrated power over ethernet adapter functionality
-
Transparent media conversion for seamless network integration
Technical Specifications
| Manufacturer |
Transition Networks, Inc |
| Model Number |
SPOEB1013-105-NA |
| Type |
PoE Media Converter |
| Copper Interface |
10/100Base-TX (RJ-45) |
| Fiber Interface |
100Base-FX Multimode SC |
| PoE Standard |
IEEE 802.3af (15.4W) |
| Fiber Type |
62.5/125 or 50/125 μm multimode |
| Transmission Distance |
Up to 2km over multimode fiber |
| Power Requirements |
External power adapter (included) |
| Operating Temperature |
0°C to 50°C (32°F to 122°F) |
Target Use Cases
This PoE media converter excels in diverse network deployment scenarios:
-
IP Security Cameras: Power over ethernet delivery to remote surveillance devices over fiber
-
Wireless Access Points: Extending PoE power to WiFi equipment in distant locations
-
VoIP Phones: Connecting IP telephony systems over fiber infrastructure
-
Industrial Networks: Powering sensors and control devices in harsh environments
Key Benefits
-
Simplified Installation: Single device provides both power over ethernet and media conversion
-
Extended Reach: Multimode fiber enables connections up to 2km distance
-
Cost-Effective Solution: Eliminates need for separate power sources at remote locations
-
Reliable Performance: Industrial-grade design for continuous operation
-
Future-Ready Design: Fiber ethernet infrastructure supports network upgrades
Frequently Asked Questions
Q: What devices can be powered through this PoE media converter?
A: This power over ethernet adapter supports IEEE 802.3af devices up to 15.4W including IP cameras, wireless access points, VoIP phones, and network sensors.
Q: What is the maximum transmission distance over multimode fiber?
A: The 100Base-FX multimode interface supports transmission distances up to 2km using standard 62.5/125μm or 50/125μm multimode fiber with SC connectors.
Q: Does this converter require separate power for PoE functionality?
A: Yes, the SPOEB1013-105-NA includes an external power adapter to provide both device operation and PoE power delivery to connected devices.
Q: Is this media converter compatible with existing network infrastructure?
A: Absolutely. The 10/100Base-TX interface with auto-negotiation ensures compatibility with existing ethernet switches, while the multimode SC connector works with standard fiber infrastructure.
