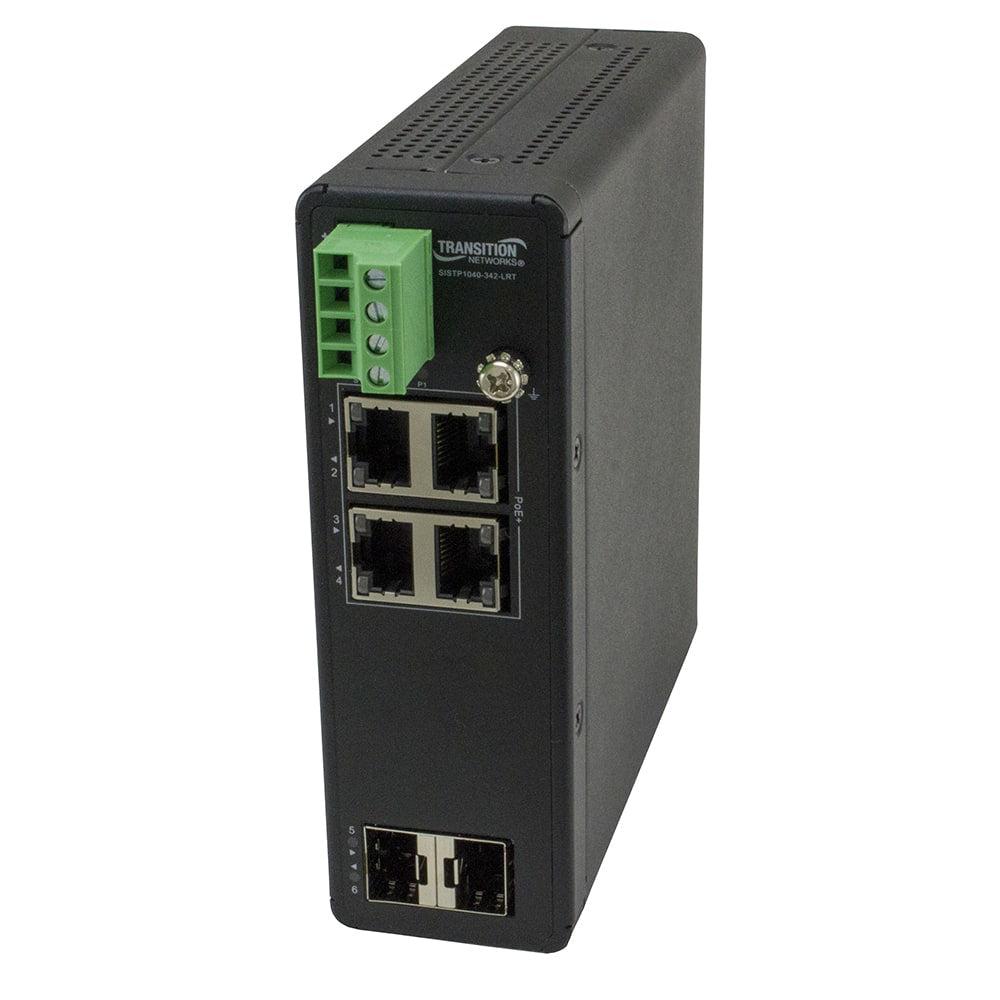

This Transition Networks SISTP1040-342-LRT hardened PoE+ switch is perfect for industrial automation, outdoor installations, and harsh environment applications requiring reliable network connectivity with power delivery. Our ruggedized solution delivers:
-
Hardened design built to withstand extreme temperatures and industrial conditions
-
PoE+ power delivery supporting high-power devices up to 30W per port
-
DIN rail mounting for easy installation in control panels and industrial enclosures
-
Unmanaged operation providing plug-and-play deployment without configuration
Key Features
-
4 Gigabit Ethernet ports with PoE+ support (up to 30W per port)
-
Hardened construction rated for -40°C to +75°C operating temperature
-
DIN rail mounting system for industrial panel installation
- Advanced PoE+ technology delivering up to 120W total power budget
-
Unmanaged switch design eliminating configuration complexity
- IP30 rated enclosure for dust and moisture protection
-
Industrial automation compatibility with extended temperature range
- Redundant power input options for mission-critical applications
Technical Specifications
| Manufacturer |
Transition Networks |
| Model Number |
SISTP1040-342-LRT |
| Type |
Hardened PoE+ Unmanaged Gigabit Ethernet Switch |
| Port Count |
4 x 10/100/1000BASE-T PoE+ ports
|
| PoE Power Budget |
120W total, up to 30W per port |
| Operating Temperature |
-40°C to +75°C (-40°F to +167°F) |
| Mounting |
DIN rail compatible |
| Enclosure Rating |
IP30 (dust and moisture protection) |
| Power Input |
48-57VDC with redundant input options |
| Switching Capacity |
8 Gbps non-blocking |
| MAC Address Table |
8K entries with auto-learning |
| Certifications |
FCC, CE, RoHS compliant |
| Compatible Systems |
Industrial control panels, outdoor enclosures |
Frequently Asked Questions
Q: What makes this hardened switch suitable for industrial applications?
A: This hardened ethernet switch features an extended operating temperature range of -40°C to +75°C, IP30 enclosure rating, and robust construction designed specifically for harsh industrial environments and outdoor installations.
Q: How does the PoE+ capability benefit industrial device deployment?
A: The PoE+ power delivery provides up to 30W per port, enabling direct power to industrial cameras, wireless access points, and sensors without requiring separate power infrastructure, simplifying installation in remote locations.
Q: Is DIN rail mounting compatible with standard industrial panels?
A: Yes, the DIN rail mounting system is designed to standard specifications, allowing easy installation in control panels, junction boxes, and industrial enclosures commonly used in automation and process control applications.
Q: Does this unmanaged switch require network configuration?
A: No configuration required. This unmanaged switch provides true plug-and-play operation with auto-negotiation, auto-MDI/MDIX, and automatic MAC address learning, making it ideal for quick deployment in industrial environments.
Hardened PoE+ industrial switch with DIN rail mounting. 4-port Gigabit Ethernet for harsh environments and outdoor applications.
