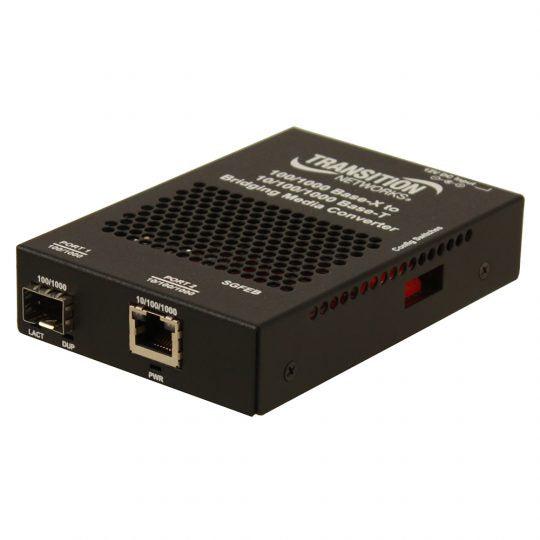

This ethernet switches media converter is perfect for network administrators and IT professionals who need reliable fiber ethernet switches conversion capabilities. Our stand-alone solution delivers:
-
Network switch fiber optic conversion between copper and fiber connections
-
Gigabit ethernet router compatibility with 10/100/1000Base-T standards
-
Server rack network switch integration for enterprise installations
-
Fibre channel network switch support for high-performance networks
Key Features
-
Stand-alone gigabit media converter for copper to fiber conversion
-
10/100/1000Base-T ethernet auto-negotiation support
-
1000Base-SX fiber optic multimode connectivity
-
Plug-and-play operation with no software configuration required
-
LED status indicators for power, link, and activity monitoring
-
Compact desktop design for flexible deployment options
-
Auto-sensing duplex mode for optimal performance
Technical Specifications
| Manufacturer |
Transition Networks (Lantronix) |
| Model Number |
SGFEB1024-130-NA |
| Type |
Ethernet Switches Media Converter |
| Copper Interface |
10/100/1000Base-T RJ45 |
| Fiber Interface |
1000Base-SX SC connector |
| Fiber Type |
62.5/125µm or 50/125µm multimode |
| Transmission Distance |
Up to 550m (62.5/125µm), 2km (50/125µm) |
| Data Rate |
10/100/1000 Mbps auto-sensing |
| Power Requirements |
External 12VDC adapter (included) |
| Operating Temperature |
0°C to 50°C (32°F to 122°F) |
| Dimensions |
4.3" x 2.6" x 1.1" (109 x 66 x 28mm) |
| Compatible Systems |
Enterprise switches, routers, servers, workstations |
Frequently Asked Questions
Q: What types of fiber connections does this ethernet switches converter support?
A: This fiber ethernet switches converter supports 1000Base-SX multimode fiber with SC connectors, compatible with both 62.5/125µm and 50/125µm fiber cables.
Q: Does this network switch fiber optic converter require configuration?
A: No, this is a stand-alone converter with plug-and-play operation. Simply connect your copper and fiber cables, apply power, and it automatically handles the conversion.
Q: What transmission distances are supported?
A: With gigabit ethernet speeds, you can achieve up to 550 meters with 62.5/125µm fiber or up to 2 kilometers with 50/125µm multimode fiber.
Q: Is this suitable for server rack installations?
A: Yes, while designed as a desktop unit, this server rack network switch converter can be mounted in racks using optional mounting accessories for enterprise deployments.
Ethernet switches media converter for gigabit fiber optic networks. Stand-alone 10/100/1000Base-T to 1000Base-SX converter by Lantronix.
