Description

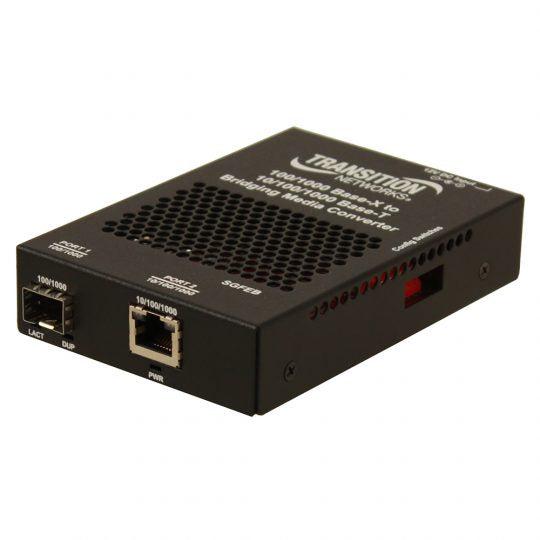

10/100/1000Base-T (RJ-45) to 1000Base-LX 1310nm single mode (LC), 10 km
Transition Networks SGFEB1019-130. Maximum data transfer rate: 1000 Mbit/s, Converter input interface: 10Base-T,100Base-T,1000Base-T, Converter output interface: 1000Base-LX. Fiber optic connector: LC, Connectivity technology: Wired. Maximum transfer distance: 10000 m, Wavelength: 1310 nm, Fiber mode structure: Single-mode. Certification: EN55022, EN55024, UL60950. Input voltage: 24 V, Power consumption (typical): 2.2 W
The SGFEB provides a cost effective method for integrating 1000Base-SX/LX fiber into a 10/100/1000Base-T copper environment. Deploying fiber into today’s networks provides the ability to transmit data over significantly longer distances than is possible on copper. Fiber also protects your data from external sources of noise and interference, improving network performance.
Operating at Layer 2, this converter not only converts copper to fiber, it also does Rate conversion, converting 10/100/1000 copper to 1000Base fiber.
General Information
Manufacturer
Transition Networks, Inc
Manufacturer Part Number
SGFEB1019-130-NA
Manufacturer Website Address
http://www.transition.com
Brand Name
Transition Networks
Product Series
SGFEB
Product Model
SGFEB1019-130
Product Name
SGFEB1019-130 Transceiver/Media Converter
Product Type
Transceiver/Media Converter
UPC
648177039074
Ethernet Technology
Gigabit Ethernet
Network (RJ-45)
Yes
Height
1"
Width
3.3"
Depth
4.8"
Weight (Approximate)
8.80 oz
Environmentally Friendly
Yes
Warranty
Limited Warranty
Lifetime
