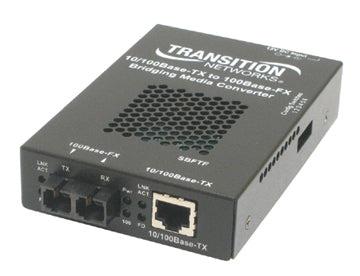

Transition Networks Sbftf1014-105 Network Media Converter 100 Mbit/S 1310 Nm Single-Mode Black

10/100BASE-TX RJ-45 to 100BASE-FX, 1310 nm, SM, SC

Transition Networks SBFTF1014-105. Maximum data transfer rate: 100 Mbit/s, Converter input interface: 100Base-TX, Converter output interface: 100Base-FX. Fiber optic connector: SC, Connectivity technology: Wired. Maximum transfer distance: 20000 m, Wavelength: 1310 nm, Fiber mode structure: Single-mode. Product colour: Black, Certification: FCC A, VCCI 1, CISPR22/EN55022 A, EN55024, EN61000, CE. Output voltage: 12 V, Output current: 0.8 A

- Extend network distance up to 120km
- Bridging media converters will provide conversion and integration solutions for half and full-duplex environments.
- 10Mbps or 100Mbps on all TP ports
- Half or full-duplex on all ports including fiber

- Auto-Negotiation (802.3u) - Allows devices to perform automatic configuration to achieve the best possible mode of operation over a link.
- AutoCross™ - Automatically detects and configures the twisted pair port on the converter to the correct MDI or MDI-X configuration.
- Link Pass Through - Link Pass Through is a troubleshooting feature that allows the media converter to monitor both the fiber and copper RX ports for loss of signal.
- Far End Fault (FEF) - A troubleshooting feature that is generally used in conjunction with Link Pass Through to notify both end devices of a loss of link.
- Automatic Link Restoration - Transition Networks's converters will automatically re-establish link in all network conditions.
