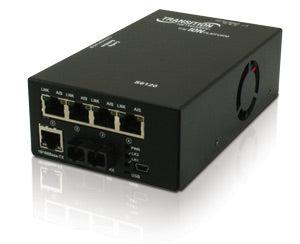

Transition Networks S6120-1040

1 SFP port (Empty), 4 RJ-48 1.5 km, 1 RJ-45 100m, T1(J1)=1.544Mb/s, E1=2.048Mb/s, 6W, 2 lbs

Transition Networks S6120-1040

The ION 4xT1/E1/J1 copper to fiber network interface device (NID) provides a solution for those users that need to extend multiple T1/E1 connections and 10/100Mbps Ethernet over fiber.

The ION 4xT1/E1/J1 supports Small Form Pluggable (SFP) transceivers to support a variety of fiber types, distances and wavelengths to provide maximum flexibility across a variety of network topologies.

The use of Coarse Wave Division Multiplexing (CWDM) SFPs can be utilized to further increase the bandwidth capacity of the fiber infrastructure.

The ION 4xT1/E1/J1 NID must be used in pairs. A typical installation will include a chassis card installed in the ION Platform locally and a standalone device installed at the remote location.

- 4 x RJ-48 copper interfaces,1 fiber interface (fixed or SFP), 2 SFP ports on C6121-1040 model, 1 RJ-45 10/100Mbps Ethernet port
- AutoCross (auto MDI/MDI-X on Ethernet port)
- Pause (Flow Control) on Ethernet port)
- Loopback via test set
- Local and remote loopbacks
- LEDs for device status and troubleshooting
- Settings for line code, line build out, loopbacks and Alarm Indication Signal (AIS)
- Access to complete status and configuration on local and remote device
- Remote firmware upgrade
- Remote management
- Extended operating temperature
