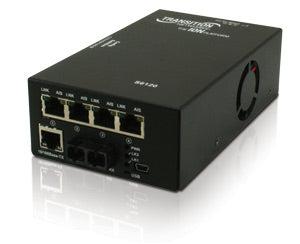

This media converter is perfect for telecommunications providers, enterprise networks, and service providers that need reliable T1/E1/J1 line integration with modern Ethernet infrastructure. Our ION S6120 compatible solution delivers:
-
10/100 Ethernet connectivity bridging legacy T1 lines with modern networking
-
Fiber connectivity for extended distance and secure data transmission
-
Seamless integration with ION chassis systems for centralized management
-
Professional networking capabilities for carrier-grade applications
Key Features
-
T1/E1/J1 line support with full DS1/E1/J1 protocol compatibility
-
ION S6120 platform integration for unified system management
- Optimized for 10/100 Ethernet auto-sensing operation
- Consistent fiber optic connectivity for long-distance transmission
-
Hot-swappable design enabling maintenance without service interruption
-
Comprehensive LED indicators for real-time status monitoring
-
Loop-back testing capabilities for network troubleshooting
Technical Specifications
| Manufacturer |
Transition Networks |
| Model Number |
S6120-1014-NA |
| Type |
T1/E1/J1 Media Converter Transceiver |
| Platform Compatibility |
ION S6120 chassis systems |
| T1/E1/J1 Support |
DS1 (1.544 Mbps), E1 (2.048 Mbps), J1 (1.544 Mbps) |
| Ethernet Interface |
10/100 Ethernet (auto-sensing) |
| Fiber Interface |
Single-mode or multimode fiber connectivity |
| Transmission Distance |
Up to 120km (depending on fiber type and SFP) |
| Line Coding |
AMI, B8ZS (T1), HDB3 (E1), B8ZS (J1) |
| Framing |
Extended Super Frame (ESF), Super Frame (SF), CRC4 |
| Management |
SNMP, Web-based, ION system integration |
| Power Requirements |
Chassis-supplied power (ION S6120) |
| Compatible Systems |
Carrier networks, enterprise WAN, service provider infrastructure |
Frequently Asked Questions
Q: How does this media converter integrate T1/E1/J1 lines with Ethernet networks?
A: This T1/E1/J1 compatible converter seamlessly bridges traditional TDM circuits with modern 10/100 Ethernet infrastructure. The media converter performs protocol conversion while maintaining full DS1/E1/J1 signal integrity, enabling legacy system integration with contemporary network architectures.
Q: What are the advantages of ION S6120 platform compatibility?
A: ION S6120 integration provides centralized management, hot-swappable operation, and unified monitoring through a single interface. This media converter benefits from chassis-based power, SNMP management, and streamlined maintenance procedures, reducing operational complexity in large deployments.
Q: What fiber connectivity options are supported?
A: The fiber interface supports both single-mode and multimode connectivity through compatible SFP transceivers. This flexibility allows the T1/E1/J1 converter to adapt to various distance requirements, from campus networks to metropolitan area connections, while providing electrical isolation and EMI immunity.
Q: Can this handle different T1/E1/J1 line coding and framing formats?
A: Yes, this media converter supports multiple line coding formats including AMI, B8ZS for T1/J1, and HDB3 for E1 lines. The ION S6120 platform provides flexible framing options including ESF, SF, and CRC4, ensuring compatibility with diverse carrier and enterprise T1/E1/J1 implementations.
Media Converter T1/E1/J1 ION S6120 10/100 Ethernet Fiber for professional networks. Seamless integration with carrier-grade networking applications.
