Description
RJ-48 to SFP slot

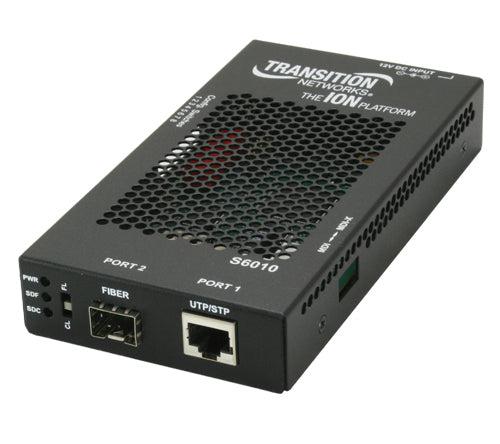

Transition Networks S6010-1040. Fiber optic connector: SFP, Connectivity technology: Wired. Product colour: Black, Certification: CISPR/EN55022 A, FCC A, CE, UL60950. Input voltage: 100 - 240 V, Output voltage: 12 V, Power consumption (typical): 2.6 W. Package weight: 900 g. Dimensions (WxDxH): 82 x 165 x 25 mm, Interface: RJ-48
The T1/E1 copper to fiber network interface device (NID) provides a solution for those users that need to extend T1/E1 connections over fiber.
The T1/E1 supports Small Form Pluggable (SFP) transceivers to support a variety of fiber types, distances and wavelengths to provide maximum flexibility across a variety of network topologies. The use of Coarse Wave Division Multiplexing (CWDM) SFPs can be utilized to further increase the bandwidth capacity of the fiber infrastructure.
The T1/E1NID must be used in pairs. A typical installation will include a chassis card installed in the ION Platform locally and a stand-alone device installed at the remote location.
- Remote in-band management - Local or Remote Loopbacks - Copper or Fiber - Switch selectable for T1 or E1 - Remote firmware upgrade - LEDs for immediate visual status - Supports dual or single fiber - Supports multimode and single mode fiber at a variety of distances - Supports CWDM SFPs - SNMP management when used with ION chassis and management module - Remote standalone can be managed by local peer
