Description
10/100/1000BASE-T, RJ-45 (100 m) to 100Base-X Open SFP Slot

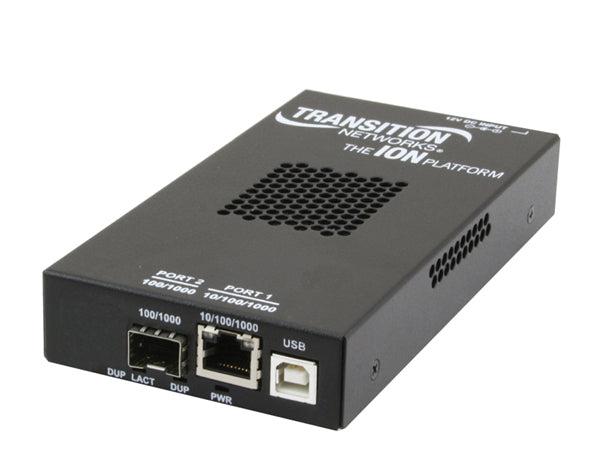

Transition Networks S2220-1040. Maximum data transfer rate: 1000 Mbit/s, Converter input interface: 1000Base-T. Fiber optic connector: SFP, Connectivity technology: Wired. Maximum transfer distance: 100 m. Certification: EN55022 A, EN55024, UL60950, CE. Input voltage: 100 - 240 V, Input current: 1 A, Output voltage: 12 V
The ION 2220 Series of Network Interface Devices (NIDs) are a remotely managed product that offers IP or IP-Less management methods for secure delivery of Ethernet services for business and mobile backhaul applications. With MEF 9, 14 & 21 certification the ION 2220 Series ensures you are compliant with the latest standards. The ION 2220 Series is a 10/100Mbps product with advance features including – IEEE 802.3ah Link OAM, VLAN, QoS, SSH/SSL, jumbo frame support and bandwidth allocation.
- 802.3ah Link OAM - 10 K Jumbo Frame Support - Two selectable Remote Management modes: -- IP-Based Remote Management -- In-Band Link OAM 802.3ah remote device managed by local peer) - AutoCross™ - Automatically detects and configures the twisted pair port on the converter to the correct MDI or MDI-X configuration. - Auto-Negotiation for 10/100BASE-TX - Allows devices to perform automatic configuration to achieve the best possible mode of operations over a link. - Pause (IEEE 802.3xy) - Pause signaling is an IEEE feature that temporarily suspends data transmission between two devices in the event that one of the devices becomes overwhelmed. - Transparent Link Pass Through - Transparent Link Pass Through sends a link-loss signal over the fiber, instructing the remote converter to shut down the copper port—thus notifying the end device—while maintaining the fiber link between the two converters. - Far End Fault (FEF) - A troubleshooting feature that is generally used in conjunction with Link Pass Through to notify both end devices of a loss of link. - Remote Loopback - This feature puts a converter in a special mode that enables the device to loop back the signal from the RX port to the TX port on either media for testing and troubleshooting purposes. - Remote Firmware Upgrade - IEEE 802.1p QoS packet classification - Ipv4 IP TOS, DiffDerv and IPv6 traffic class QoS classification - IEEE 802.1q VLAN and double VLAN tagging with 4096 VIDs - VLAN Tunneling - DHCP client - SNTP - TFTP - Syslog - IEEE 802.1x Port based security - RADIUS client - RMON counters for each port - Bandwidth profiling - DMI Optical Management - Cable diagnostic function for TP ports - SSH - Telnet - Command Line Interface (CLI) - Web management - Focal Point Management - SNMP v1 & v2c - USB port for basic setup - Management VLAN
