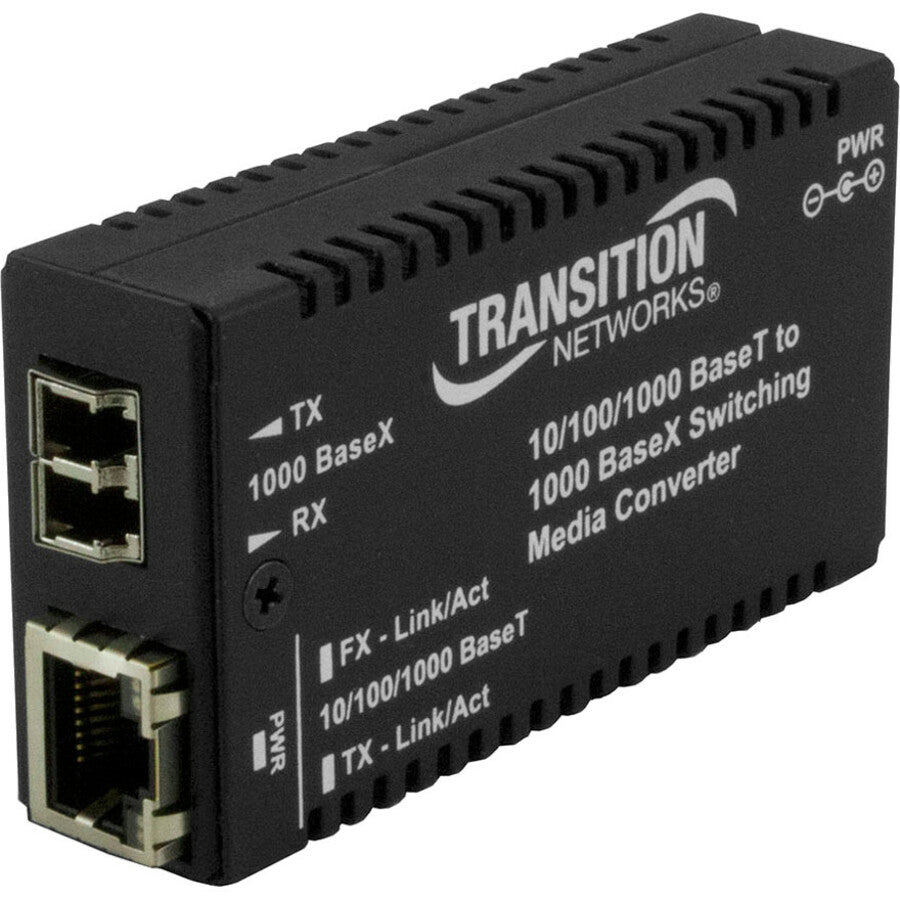

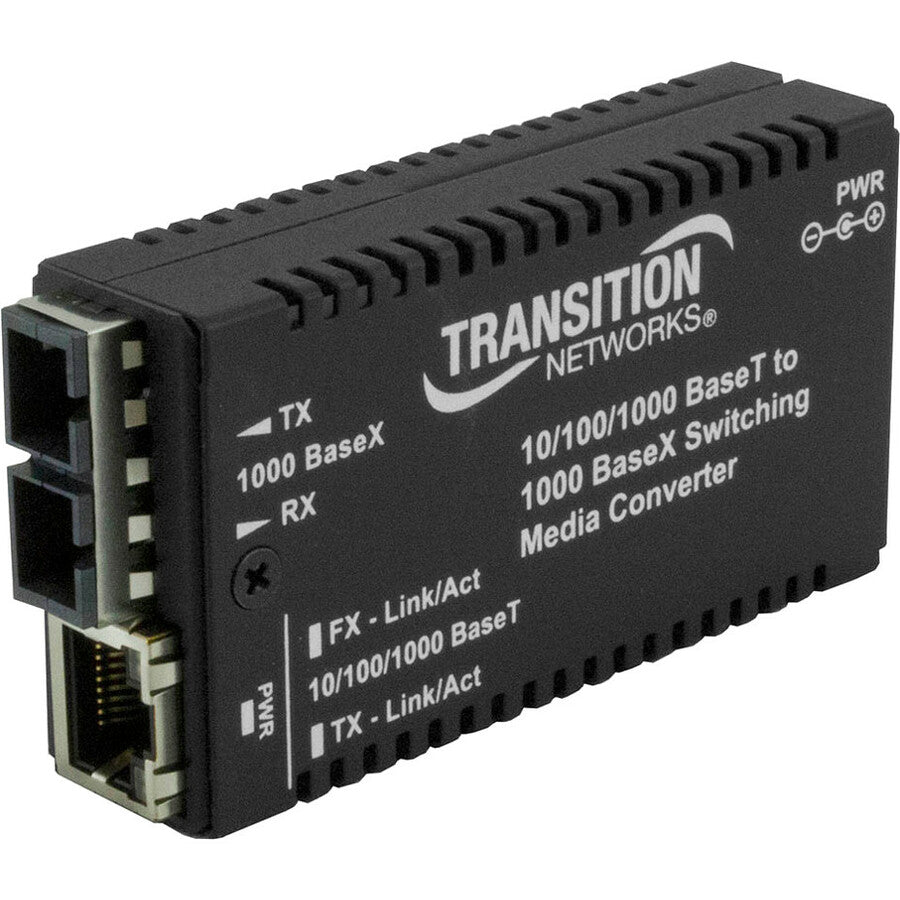

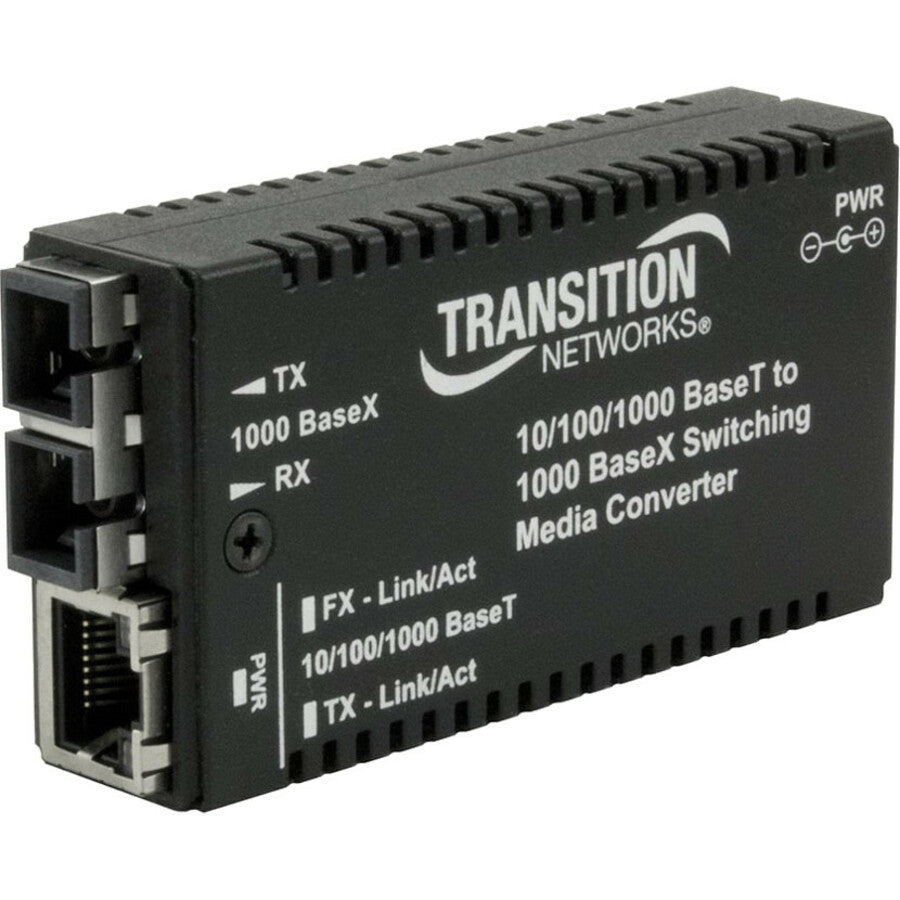

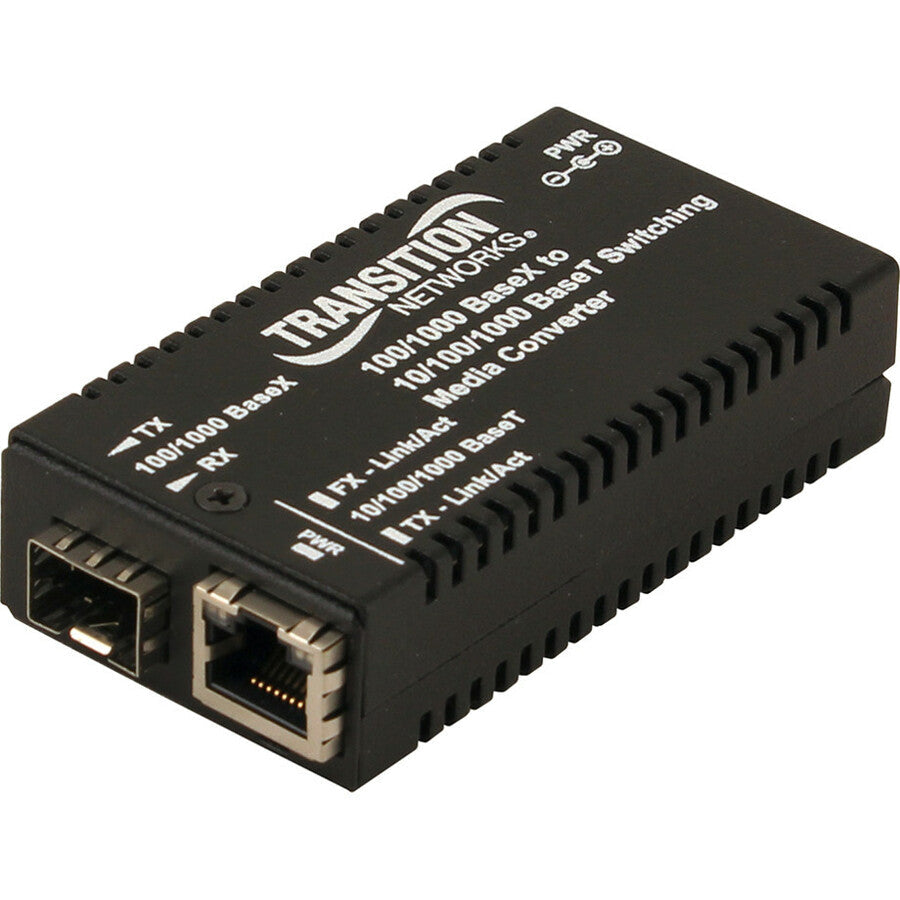

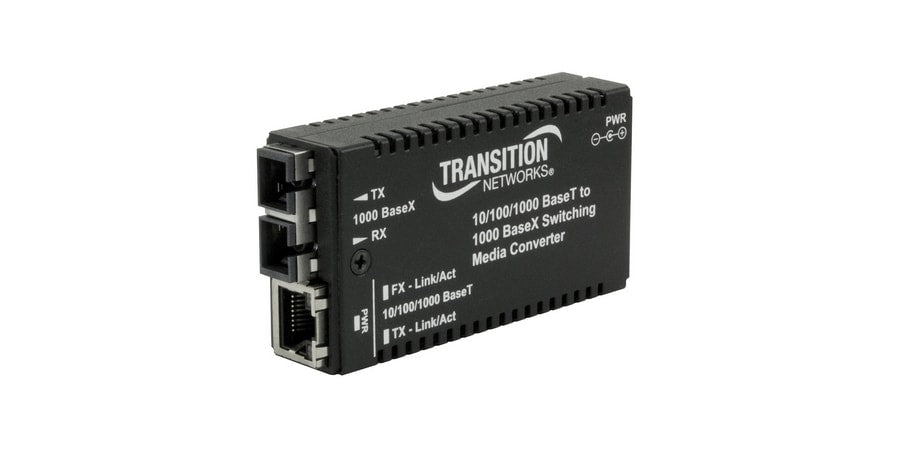

Transition Networks Mini Gigabit Ethernet Media Converter 10/100/1000Base-T to 1000Base-SX/LX
The M/GE-PSW Series is a Gigabit Ethernet stand-alone Mini media converter that provides cost effective media conversion between 10/100/1000Base-T ports and 1000Base-SX/LX ports. With its fixed configuration, deployments are just plug-and-play, and its small size makes it ideal for locations where space is limited. Operating at Layer 2, the data link layer, this converter not only converts copper to fiber, it also provides rate conversion allowing legacy 10/100 copper devices to connect to 1000Base-SX/LX fiber.
- USB Power Option, requires the use of a USB to DC barrel connector cable (USBC-AM-DC)
- Connect Legacy Networking Equipment: Connect an existing 10/100 Mbps device to 1000 Mbps devices.
- Jumbo Frame (up to 10,240 Bytes)
- Space saving design
- Active Link Pass Through
- Automatic Link Restoration
- Auto-MDI/MDIX
- Fixed Full-Duplex on fiber
- Auto-Negotiation
- Unit & Port LEDs allow for quick status information
Product Type: Transceiver/Media Converter
Environmentally Friendly: Yes
Environmental Certification: WEEE
Taa Compliant: Yes
Product Series: M/GE-PSW
Brand Name: Transition Networks
Form Factor: Standalone
Manufacturer: Transition Networks, Inc
Product Name: Mini Gigabit Ethernet Media Converter 10/100/1000Base-T to 1000Base-SX/LX
Manufacturer Part Number: M/GE-PSW-SX-01(ST)-NA
Manufacturer Website Address: http://www.transition.com
Package Contents:
- Mini Gigabit Ethernet Media Converter 10/100/1000Base-T to 1000Base-SX/LX
- Power Supply (North America)
Limited Warranty: Lifetime
Weight (Approximate): 2 lb
