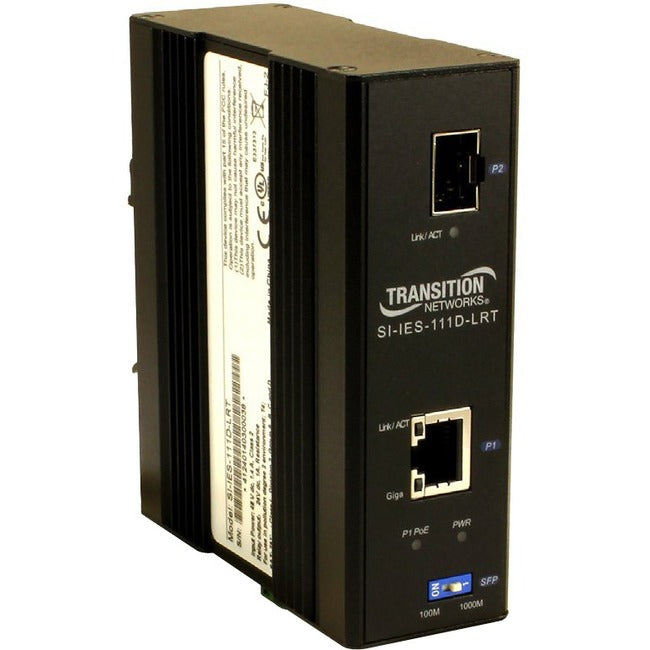

Transition Networks Hardened 1-port Mid-span PoE+ Injector
SI-IES-111D-LRT has one SFP slot and one RJ45 port. The RJ45 port supports 802.3at (PoE+), and can provide 30W for high powered application. The SFP slot provides more flexibility when planning and implementing the network. The slot can accept either a 100m or 1000m SFP module. This makes it possible to easily change the transmission mode and distance of the connection by using a different module. The SFP module is hot-swappable, and there is a dip switch to adjust the LFP function.
Product Type: PoE Injector
Environmentally Friendly: Yes
Environmental Certification: WEEE
Country Of Origin: Taiwan
Certifications & Standards:
- IEEE 802.3
- IEEE 802.3u
- IEEE 802.3ab
- IEEE 802.3at
- IEEE 802.3z
- IP30
- UL508
- FCC Class A
- CE Mark
- EN61000-6-4
- EN61000-6-2
- EN61000-4-2 (ESD)
- EN61000-4-3 (RS)
- EN61000-4-4 (EFT)
- EN61000-4-5 (Surge)
- EN61000-4-6(CS)
- EN61000-4-8 (Magnetic Field)
- IEC60068-2-27 (Shock)
- IEC60068-2-32 (Free fall)
- IEC60068-2-6 (Vibration)
Brand Name: Transition Networks
Form Factor: External
Manufacturer: Transition Networks, Inc
Product Model: SI-IES-111D-LRT
Product Name: Hardened 1-port Mid-span PoE+ Injector
Mount Type: DIN Rail/Wall Mountable
Manufacturer Part Number: SI-IES-111D-LRT
Manufacturer Website Address: http://www.transition.com
Limited Warranty: Lifetime
