Fast Ethernet Media Converter: 100Base-TX to 100Base-FX Fiber Integration

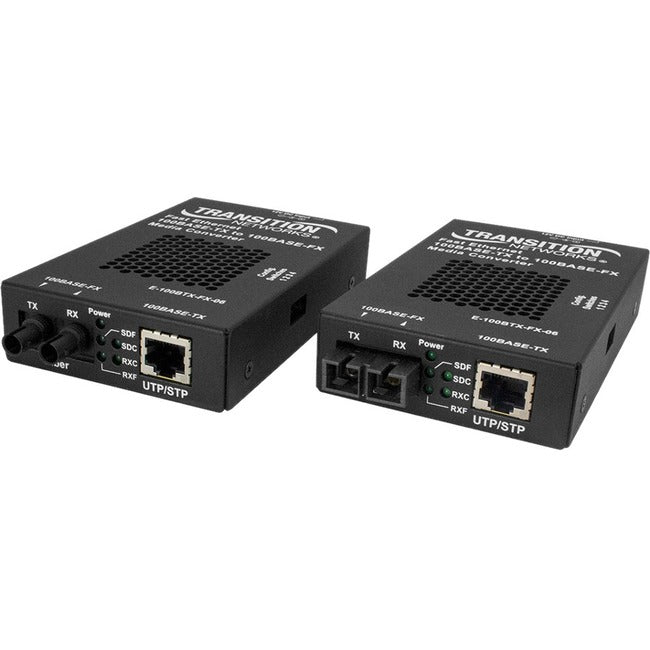

The Transition Networks E-100BTX-FX-06(LC) is a stand-alone fast ethernet media converter designed for organizations needing to extend network infrastructure across longer distances using fiber optic cabling. This 100Base-TX to 100Base-FX converter seamlessly bridges copper and fiber environments, making it ideal for data centers, enterprise networks, and industrial applications where reliable, low-latency connectivity is critical. Operating at Layer 1 (physical layer), it delivers line-speed performance with minimal latency, ensuring your network maintains peak efficiency without bottlenecks.
Key Features
- Stand-alone design — no external power or configuration required
- 100Base-TX (RJ-45) to 100Base-FX fiber conversion at line speed
- 1300nm multimode fiber support with LC connectors for extended reach
- Layer 1 operation ensures zero-latency data transmission
- Compact form factor suitable for rack or wall mounting
- Auto-negotiation and auto-sensing for plug-and-play deployment
- Supports full-duplex and half-duplex modes
- Ideal for legacy network modernization and fiber backbone integration
Technical Specifications
| Specification |
Details |
| Manufacturer |
Transition Networks Inc |
| Part Number |
E-100BTX-FX-06(LC)-NA |
| Product Type |
Stand-Alone Fast Ethernet Media Converter |
| Copper Interface |
100Base-TX (RJ-45) |
| Fiber Interface |
100Base-FX 1300nm Multimode (LC) |
| Operating Layer |
Layer 1 (Physical Layer) |
| Data Rate |
100 Mbps |
| Connector Type (Fiber) |
LC Duplex |
| Fiber Mode |
Multimode (MM) |
| Wavelength |
1300nm |
| Maximum Distance |
Up to 2km on multimode fiber |
| Power Consumption |
Minimal (passive or low-power design) |
| Operating Temperature |
0°C to 50°C |
Frequently Asked Questions
What is a fast ethernet media converter and why do I need one?
A fast ethernet media converter bridges the gap between copper (RJ-45) and fiber optic networks. The E-100BTX-FX-06(LC) allows you to extend network distances beyond copper limitations, reduce electromagnetic interference, and integrate fiber backbone infrastructure into existing 100Base-TX environments without replacing equipment.
Can this 100Base-TX to 100Base-FX converter work with existing network equipment?
Yes. This stand-alone converter operates at Layer 1 and supports auto-negotiation, making it compatible with standard switches, routers, and network devices. Simply connect your copper cable to the RJ-45 port and fiber to the LC connector — no configuration needed.
What is the maximum distance this media converter supports?
The E-100BTX-FX-06(LC) supports up to 2km over multimode fiber at 1300nm wavelength, significantly extending your network reach compared to standard copper cabling (100 meters maximum for 100Base-TX).
Is this converter suitable for industrial or outdoor applications?
Yes. The stand-alone design and fiber connectivity make this converter ideal for industrial environments, outdoor installations, and applications requiring immunity from electromagnetic interference. The compact form factor allows flexible deployment in challenging locations.
