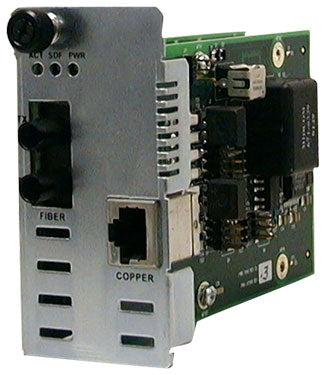

Transition Networks Captf3313-115 Network Media Converter Internal 1300 Nm Multi-Mode

Twisted Pair, RJ-11 to 1300nm, multimode, SC (Customer Side FXO)

Transition Networks CAPTF3313-115. Fiber optic connector: SC, Connectivity technology: Wired. Maximum transfer distance: 2000 m, Wavelength: 1300 nm, Fiber mode structure: Multi-mode. Certification: FCC A, VCCI A, EN 55022 (CISPR 22) A, ICES 003, CISPR A, CE. Power consumption (typical): 7 W. Package weight: 450 g

Connect central-office voice grade signals to distant Plain Old Telephone equipment (POTS) utilizing standard telephone signaling. Two units are required to implement an end to end system. Unit A connects to a telephone line or PBX and has the ability to detect ringing voltages and to act as a telephone (LINE SIDE FXS). Unit B is the reciprocal unit and has the ability to act as a Central Office and connects to a telephone device (CUSTOMER SIDE FXO).

- Audio transmission
- Caller ID
- Automatic ring down
- Dual or single fiber options
- SNMP Management
- Ringing at the distant end
- Electrical interface is provided through an RJ-11 female connector
- Field Upgradeable Firmware
- 300 Hz - 3 kHz
