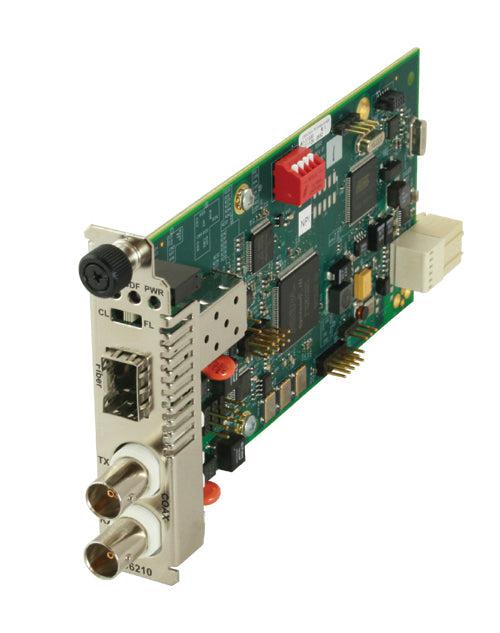

Transition Networks C6210-3013 Network Media Converter Internal 44.7 Mbit/S 1300 Nm Multi-Mode

2x BNC to 1300nm, multimode, SC

Transition Networks C6210-3013. Maximum data transfer rate: 44.7 Mbit/s. Fiber optic connector: SC, Connectivity technology: Wired. Maximum transfer distance: 2000 m, Wavelength: 1300 nm, Fiber mode structure: Multi-mode. Certification: CISPR/EN55022 A, FCC A, CE. Power consumption (typical): 2.5 W

The DS3 – T3/E3 copper to fiber network interface device (NID) provides a solution for those users that need to extend DS3 connections over fiber.

The DS3 – T3/E3s supports Small Form Pluggable (SFP) transceivers to support a variety of fiber types, distances and wavelengths to provide maximum flexibility across a variety of network topologies. The use of Coarse Wave Division Multiplexing (CWDM) SFPs can be utilized to further increase the bandwidth capacity of the fiber infrastructure.

The DS3 – T3/E3 NID must be used in pairs. A typical installation will include a chassis card installed in the ION Platform locally and a stand-alone device installed at the remote location.

- AIS (Alarm Indication Signal)
- Coax Line Build Out
- Switch selectable for DS3/T3 or E3
- Remote firmware upgrade
- Loopback – Coax and Fiber
- LEDs for immediate visual status
- Supports dual or single fiber
- Supports multimode and single mode fiber at a variety of distances
- Supports CWDM SFPs
- SNMP management when used with ION chassis and management module
- Remote standalone can be managed by local peer
