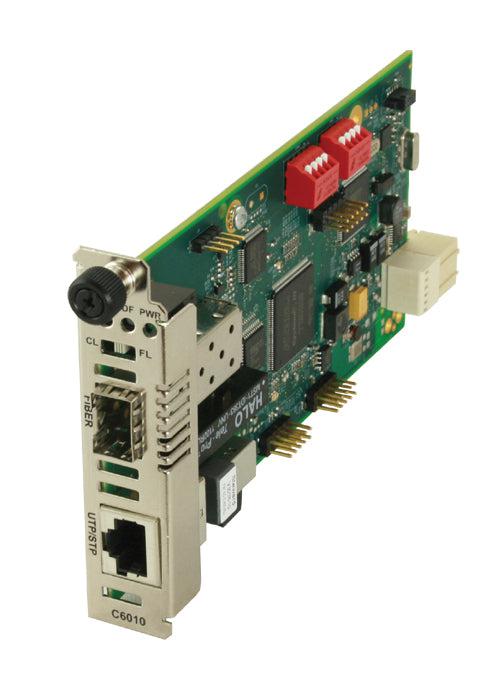

Transition Networks C6010-1013. Fiber optic connector: SC, Connectivity technology: Wired. Maximum transfer distance: 2000 m, Wavelength: 1300 nm, Fiber mode structure: Multi-mode. Certification: CISPR/EN55022 A; FCC A; CE. Power consumption (typical): 2.6 W. Package weight: 450 g
The T1/E1 copper to fiber network interface device (NID) provides a solution for those users that need to extend T1/E1 connections over fiber.
The T1/E1 supports Small Form Pluggable (SFP) transceivers to support a variety of fiber types, distances and wavelengths to provide maximum flexibility across a variety of network topologies. The use of Coarse Wave Division Multiplexing (CWDM) SFPs can be utilized to further increase the bandwidth capacity of the fiber infrastructure.
The T1/E1NID must be used in pairs. A typical installation will include a chassis card installed in the ION Platform locally and a stand-alone device installed at the remote location.
- Remote in-band management - Local or Remote Loopbacks - Copper or Fiber - Switch selectable for T1 or E1 - Remote firmware upgrade - LEDs for immediate visual status - Supports dual or single fiber - Supports multimode and single mode fiber at a variety of distances - Supports CWDM SFPs - SNMP management when used with ION chassis and management module - Remote standalone can be managed by local peer
