Transition Networks C2210-1039. Maximum data transfer rate: 100 Mbit/s, Converter input interface: 100Base-TX, Converter output interface: 100BASE-FX. Fiber optic connector: LC, Connectivity technology: Wired. Maximum transfer distance: 2000 m, Wavelength: 1300 nm, Fiber mode structure: Multi-mode. Certification: CISPR/EN55022 A, FCC A, CE, EN55024. Power consumption (typical): 2.5 W

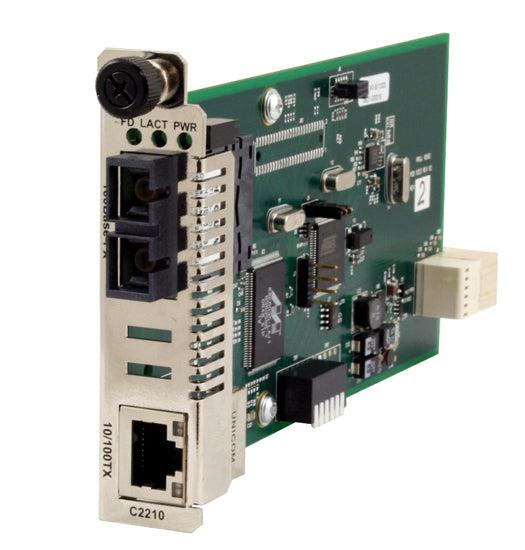

The ION C2210 device provides an interface between 10/100Base-TX ports and 100Base-FX ports allowing users to integrated fiber optic cabling into 10/100Base-TX copper environments.
- Auto-Negotiation of speed and duplex on TP port - AutoCross™ on TP port - Link Pass Through (LPT) fault monitoring - Far-End-Fault (FEF) detection - Pause (Software Controlled) - Automatic Link Restoration - Remote Firmware Upgrade - Can be used in any ION Platform Chassis - Standards based, will link with any standard 10/100Base-TX and any standard 100Base-FX ports - The following manageable features are available when used in an ION Platform chassis along with an ION Management Module.
Report converter status to chassis management software: - TP and Fiber Link Status - Hardware switch settings - Copper Port Speed - TP and Fiber Port Duplex - Fault condition
Write operation includes: - Power on/off device - Auto-Negotiation enable/disable - Force 10 Mbps or 100 Mbps - Force half or full duplex - Select advertising modes when Auto-Negotiation is enabled - LPT enable/disable - FEF enable/disable - Pause enable/disable - AutoCross™ enable/disable
