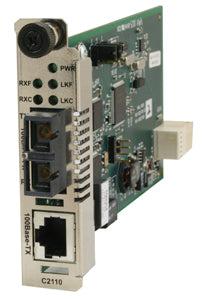

Transition Networks C2110-1019 Network Media Converter Internal 100 Mbit/S 1300 Nm Green, Grey

100 MBps, 1300nm, SM, LC, 1 x RJ-45, 2.5W

Transition Networks C2110-1019. Maximum data transfer rate: 100 Mbit/s, Converter input interface: 100Base-TX, Networking standards: IEEE 802.3. Fiber optic connector: LC, Connectivity technology: Wired. Maximum transfer distance: 20000 m, Wavelength: 1300 nm, Link budget: 17.3 dB. Product colour: Green, Grey, Certification: CISPR/EN55022 Class A, FCC Class A, CE Mark. Power consumption (typical): 2.5 W

- Auto-Negotiation of speed and duplex on TP port
- AutoCross™ on TP port
- Link Pass Through (LPT) fault monitoring
- Far-End-Fault (FEF) detection
- Automatic Link Restoration
- Pause advertisement
- Remote Firmware Upgrade
- Can be used in any ION Platform Chassis
- Standards based, will link with any standard 100Base-TX and any standard 100Base-FX ports
- The following manageable features are available when used in an ION chassis along with an ION Management Module
- Report converter status to chassis management software:
- TP and Fiber Link Status
- Hardware switch settings
- Fault condition
- TP cable length
- Write operation includes:
- Power on/off device
- Auto-Negotiation enable/disable
- Pause enable/disable
- LPT enable/disable
- FEF enable/disable
- AutoCross enable/disable
