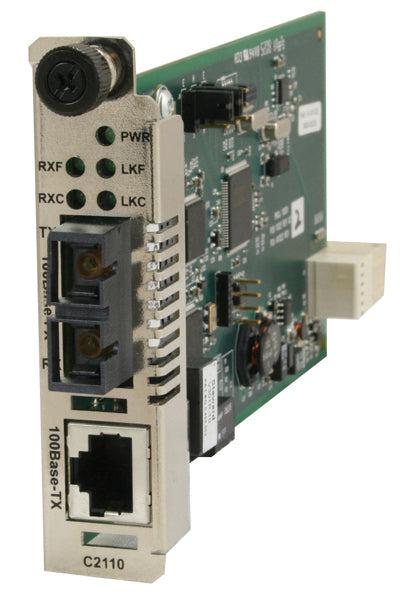

Transition Networks C2110-1011 Network Media Converter Internal 100 Mbit/S 1300 Nm Multi-Mode

100BASE-TX (RJ-45) [100 m/328 ft.], 100BASE-FX 1300nm multimode (ST) [2 km/1.2 mi.]

Transition Networks C2110-1011. Maximum data transfer rate: 100 Mbit/s, Converter input interface: 100Base-TX, Converter output interface: 100BASE-FX. Fiber optic connector: ST, Connectivity technology: Wired. Maximum transfer distance: 2000 m, Wavelength: 1300 nm, Fiber mode structure: Multi-mode. Certification: CISPR/EN55022 A, FCC A, CE. Power consumption (typical): 2.5 W

- Auto-Negotiation of speed and duplex on TP port
- AutoCross™ on TP port
- Link Pass Through (LPT) fault monitoring
- Far-End-Fault (FEF) detection
- Automatic Link Restoration
- Pause advertisement
- Remote Firmware Upgrade
- Can be used in any ION Platform Chassis
- Standards based, will link with any standard 100Base-TX and any standard 100Base-FX ports
- The following manageable features are available when used in an ION chassis along with an ION Management Module

Report converter status to chassis management software:
- TP and Fiber Link Status
- Hardware switch settings
- Fault condition
- TP cable length

Write operation includes:
- Power on/off device
- Auto-Negotiation enable/disable
- Pause enable/disable
- LPT enable/disable
- FEF enable/disable
- AutoCross enable/disable
