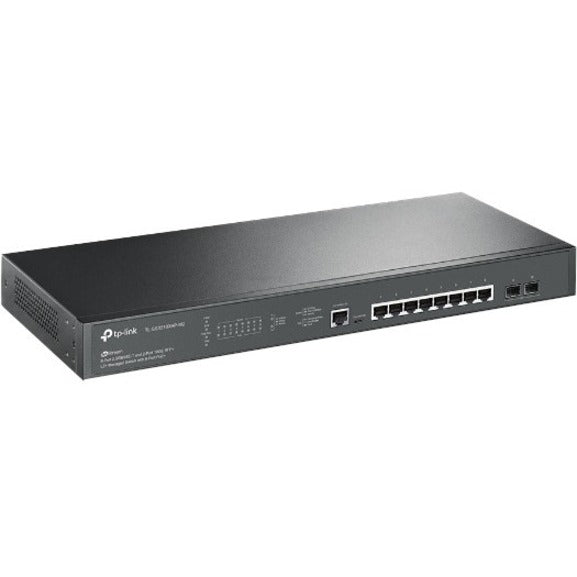

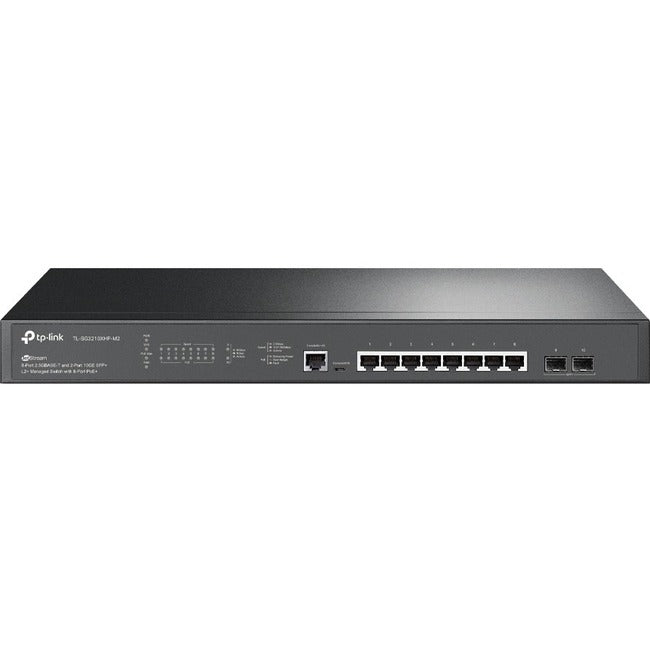

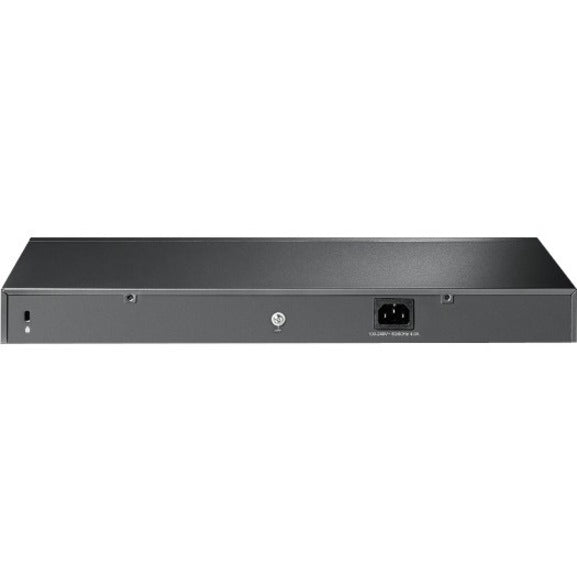

TP-Link TL-SG3210XHP-M2 - JetStream 8-Port Multi-Gigabit L2+ Managed PoE Switch - Limited Lifetime Warranty
Ultrafast 2.5G PoE+ Managed Switch with 10G Uplink for a Complete Omada Network
-
2.5G PoE+ Portsfor WiFi 6
8 2.5 Gbps Ports Unlock the Full Potential of WiFi 6 APs
-
10G Lightning-Fast Uplink Connection
2 10 Gbps SFP+ Slots for High-Bandwidth Connectivity
-
PoE+ Output
8 PoE+ Ports with Total 240 W Power Budget
-
Centralized Cloud Management
SDN Solutions Integration for a Highly Efficient Network
Centralized Cloud Management
SDN Solutions Integration for a Highly Efficient Network
Unlock the Full Potential of WiFi 6 with Multi-Gigabit PoE+ Ports
Featuring 8 2.5 Gbps PoE+ ports, the switch is capable of future network expansion and deployment, providing sufficient bandwidth for incoming WiFi 6 APs. Designed to use a single Ethernet cable for both data and power transmission, it supports up to 240 W total PoE power budget and flexible installation to fit in various application scenarios.
Enterprise Switch with 10G Uplink
2 10 Gbps SFP+ slots provide non-blocking switching performance and ultra-low latency, so reliable and lightning-fast connections to servers and other switches are easily built.
Software-Defined Networking (SDN) with Cloud Access
Omada's Software-Defined Networking (SDN) platform integrates network devices, including access points, switches, and gateways, providing 100% centralized cloud management. Omada creates a highly scalable network-all controlled from a single interface. Seamless wireless and wired connections are provided, ideal for use in hospitality, education, retail, offices, and more.
-
Hassle-Free Cloud or On-Premises Controllers
-
Multi-Site Cloud Management
-
Zero-Touch Provisioning (ZTP)
-
Intelligent Monitoring
Advanced L3 Features
An abundance of L2+ and L3 features are supported to help build a highly scalable and robust network, providing a reliable and efficient solution for enterprises, campuses, and ISPs.
Secure Networking
Security features include IP-MAC-Port-VID Binding, Port Security, Storm Control and DHCP Snooping to defend against a range of network threats. An integrated list of common DoS attacks is available, making it easier than ever to prevent them. In addition, the Access Control Lists (ACL, L2 to L4) feature restricts access to sensitive network resources by denying packets based on source and destination MAC address, IP address, TCP/UDP ports, or VLAN ID. Users' network access can be controlled via 802.1X authentication, which works with a RADIUS/Tacacs+ server to grant access only when valid user credentials are provided.
Enterprise Level Features
A complete lineup of L2+ features are supported, including 802.1Q VLAN, Port Mirroring, STP/RSTP/MSTP, Link Aggregation Control Protocol, and 802.3x Flow Control. Advanced IGMP Snooping ensures the switch intelligently forwards multicast streams to only the appropriate subscribers, cutting out unnecessary traffic, while IGMP throttling & filtering restrict each subscriber on a port level to prevent unauthorized multicast access. Static Routing is a simple way of segmenting the network and internally routs traffic through the switch for improved efficiency.
Advanced QoS
Voice and video traffic can be prioritized based on IP address, MAC address, TCP port number, UDP port number, and more. With QoS (Quality of Service), voice and video services remain smooth, even when bandwidth is in short supply.
- Eight 2.5Gbps Ports for Super-Fast Connections: 8 2.5-Gigabit ports unlock the highest performance with multi-gig bandwidth.
- 10G Lightning-Fast Uplink: 2 10 Gbps SFP+ slots enable high-bandwidth connectivity and non-blocking switching capacity.
- Flexible PoE Port Configuration: 8 PoE+(802.3at/af) 10/100/1000 Mbps RJ45 ports providing up to 30W per port, total PoE budget 240W, w/ 2 10GE SFP+ slots.
- Integrated into Omada SDN: Omada's Software Defined Networking (SDN) platform integrates network devices including switches, access points & gateways with multiple control options offered - Omada Hardware controller, Omada Software Controller or Omada Cloud-based controller*(Contact TP-Link for Cloud-based controller plan details). Standalone mode also applies.
- Cloud Access: Remote cloud access and Omada app brings centralized cloud management of the whole network from different sites-all controlled from a single interface anywhere, anytime.
- Enhance Network Security: Advanced security features include 802.1Q VLAN, IP-MAC-Port binding, ACL, Port Security, DoS defend, Storm control, DHCP Snooping, 802.1X radius authentication and more.
- L2+ Feature: Static Routing helps route internal traffic for more efficient use of network resources.
- Limited Lifetime Warranty: Backed by our industry-leading limited lifetime warranty and free 24/7 technical support, you can work with confidence.
Product Type: Ethernet Switch
Environmentally Friendly: Yes
Environmental Certification: RoHS
Brand Name: TP-Link
Form Factor: Desktop
Manufacturer: TP-LINK Technologies Co., Ltd
Product Model: TL-SG3210XHP-M2
Product Name: JetStream TL-SG3210XHP-M2 Ethernet Switch*
Product Line: JetStream
Manufacturer Part Number: TL-SG3210XHP-M2
Manufacturer Website Address: http://www.tp-link.com/us
Package Contents:
- JetStream TL-SG3210XHP-M2 Ethernet Switch*
- Power Cord
- Quick Installation Guide
- Rackmount Kit
- Rubber Feet
Limited Warranty: Lifetime
