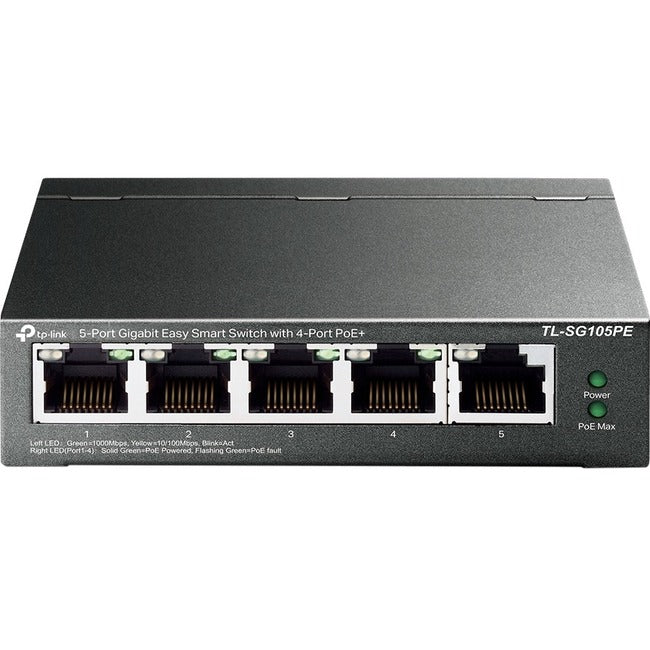

This TL-SG105PE 5-port gigabit easy smart switch is perfect for small businesses, security installers, and IT professionals requiring intelligent surveillance switch management. Our feature-rich PoE+ switch delivers:
-

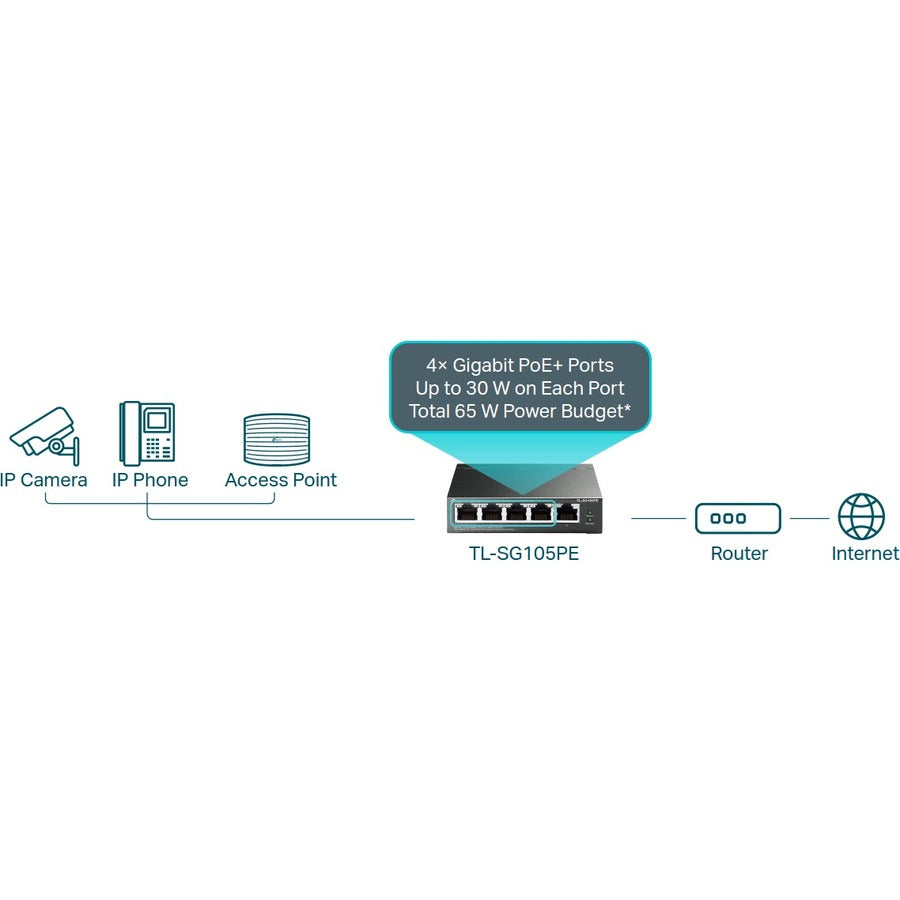

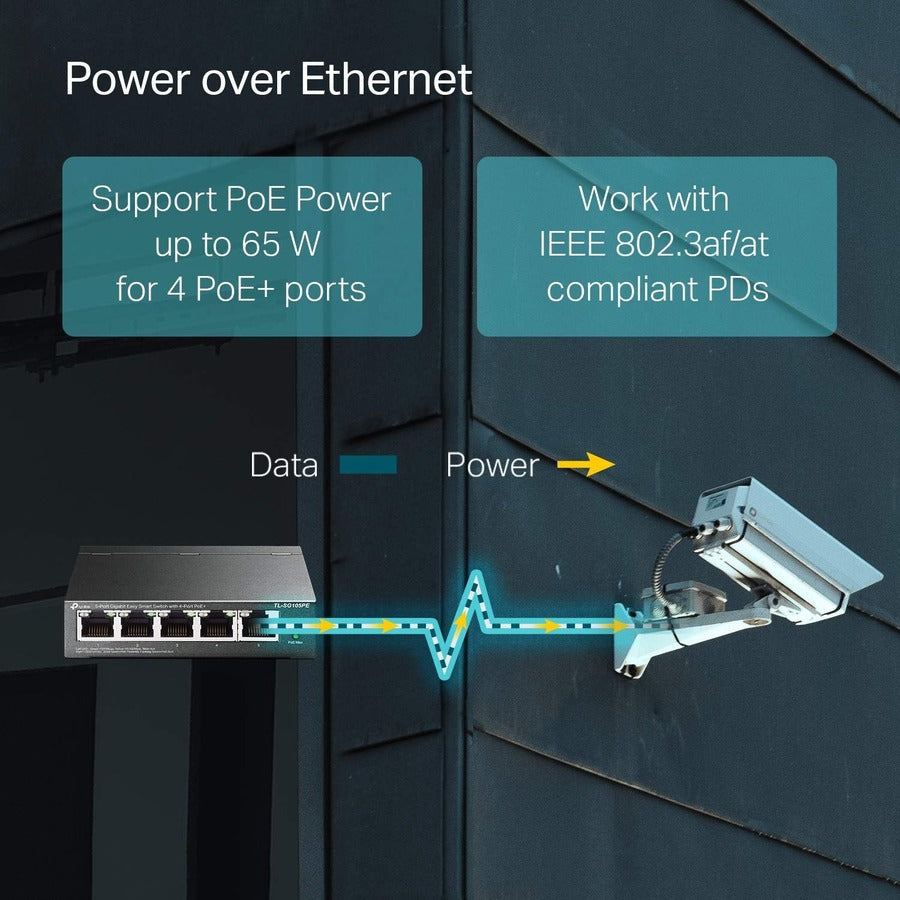

PoE+ power delivery up to 30W per port for high-power IP cameras and wireless access points
-
Easy smart management with web-based configuration for VLAN and QoS optimization
-
Surveillance-optimized features including extend mode for long-distance IP camera installations
-
Cost-effective intelligence providing managed switch benefits without complexity
Key Features
-

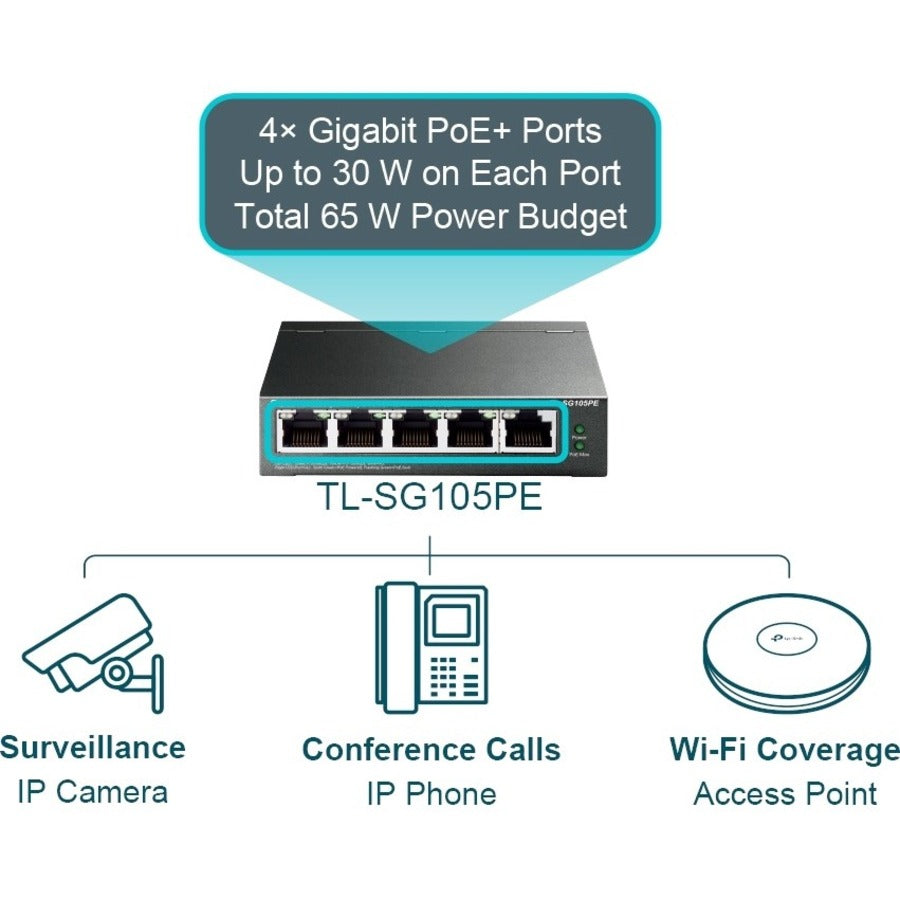

4-port PoE+ capability delivering up to 30W per port for advanced surveillance equipment
-
Extend mode technology supporting IP cameras up to 250 meters away
-

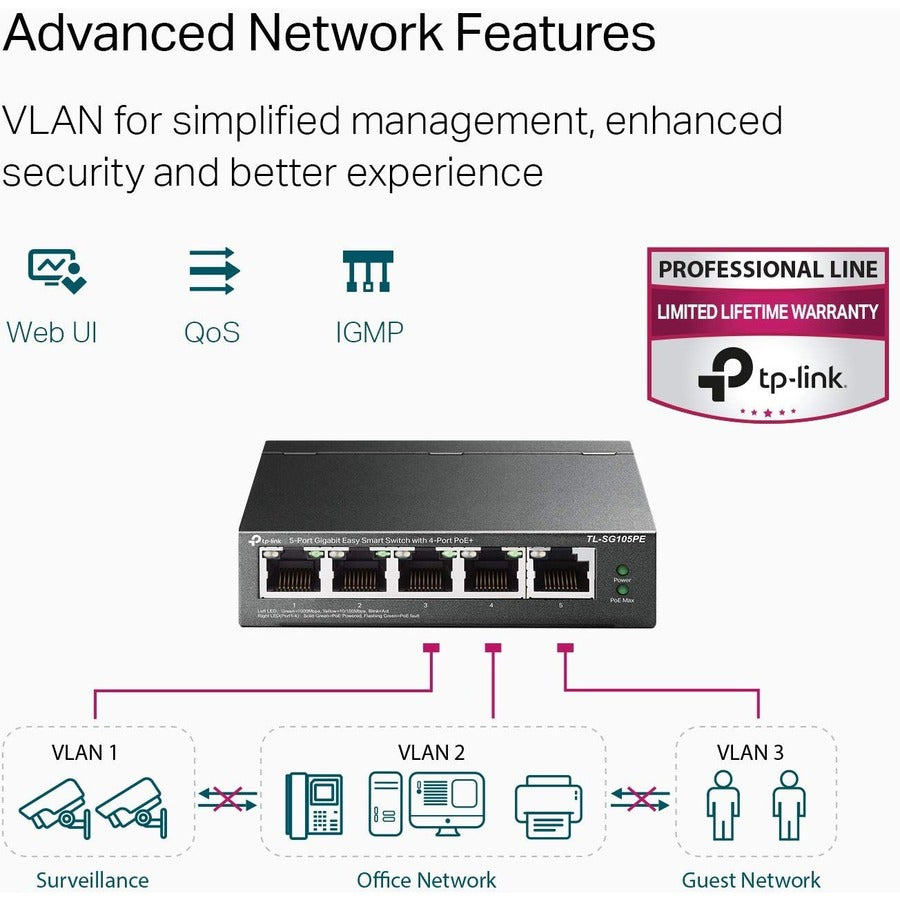

VLAN segmentation enabling secure network isolation for surveillance traffic
-
QoS prioritization ensuring uninterrupted video streaming and monitoring
-
Web-based management providing easy configuration through intuitive interface
-
Loop detection automatically preventing network loops and broadcast storms
Technical Specifications
| Manufacturer |
TP-Link |
| Model Number |
TL-SG105PE |
| Type |

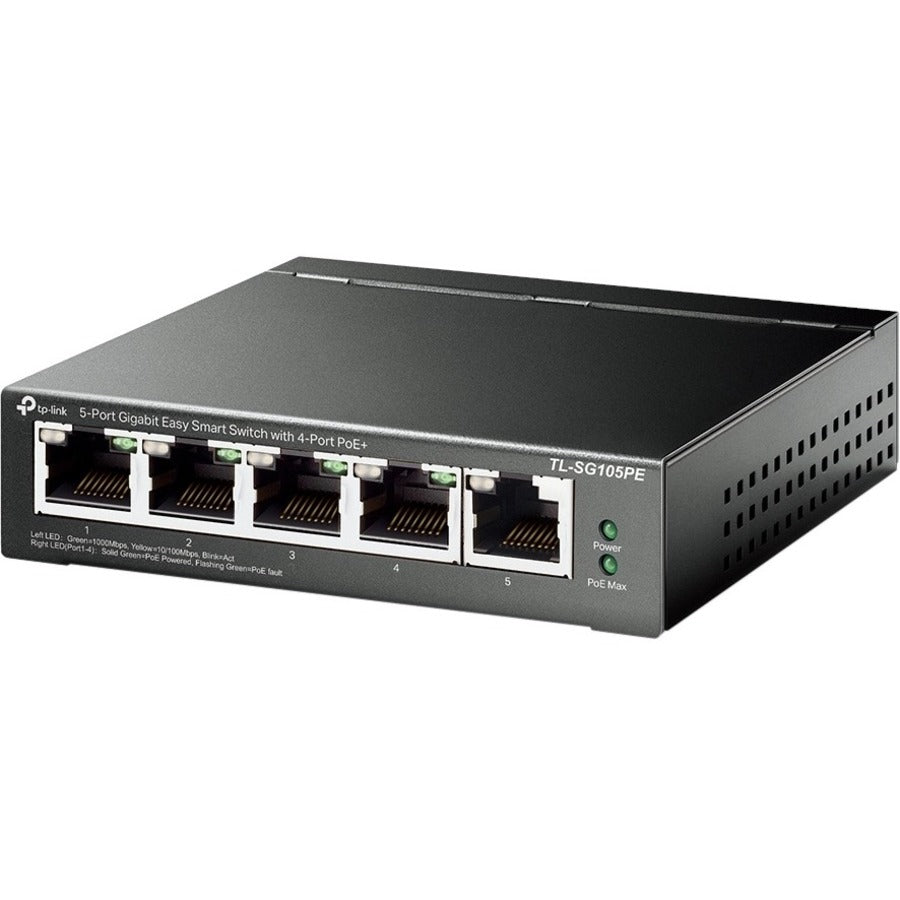

5-Port Gigabit Easy Smart Switch with 4-Port PoE+ |
| Port Configuration |
5 x 10/100/1000 Mbps RJ45 ports (4 PoE+ ports) |
| PoE Standard |
IEEE 802.3at/af PoE+ (up to 30W per port) |
| Total PoE Budget |
65W maximum power delivery |
| Switching Capacity |
10 Gbps wire-speed non-blocking |
| Forwarding Rate |
7.44 Mpps (million packets per second) |
| MAC Address Table |
8,000 MAC address entries |
| VLAN Support |
Port-based and 802.1Q tag-based VLANs |
| QoS Features |
4 priority queues, DSCP and 802.1p marking |
| Extend Mode |
Up to 250m transmission distance for PoE devices |
| Management |
Web-based GUI, Easy Smart Configuration Utility |
| Power Consumption |
Maximum 73W (with PoE devices) |
| Operating Temperature |
0°C to 40°C (32°F to 104°F) |
| Form Factor |
Desktop, compact design |
| Target Applications |
IP Surveillance, Small Business, Access Control Systems |
| Compatible Devices |

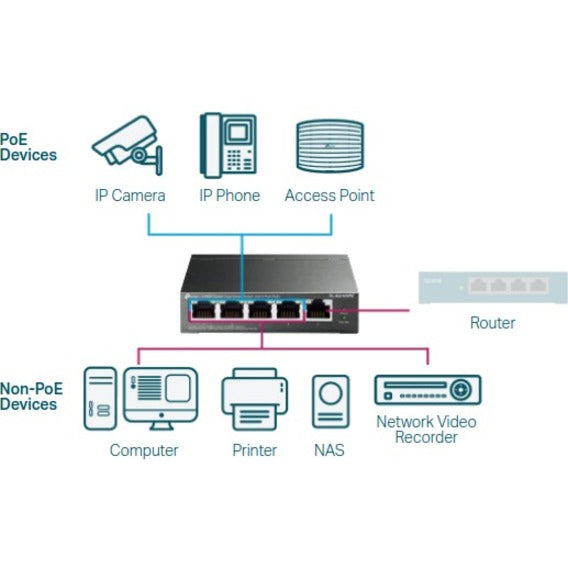

IP Cameras, Wireless Access Points, VoIP Phones, PTZ Cameras |
Frequently Asked Questions
Q: What surveillance equipment can this switch power and manage?
A: The TL-SG105PE PoE+ switch can power and manage IP cameras up to 30W each, including PTZ cameras, high-resolution surveillance cameras, and wireless access points. The surveillance switch features extend mode supporting camera installations up to 250 meters away.
Q: How does the easy smart management benefit surveillance installations?
A: This 5-port gigabit easy smart switch provides VLAN segmentation to isolate surveillance traffic, QoS prioritization for uninterrupted video streaming, and loop detection to prevent network issues - all configurable through an intuitive web interface without complex networking knowledge.
Q: Can I use this switch for long-distance IP camera installations?
A: Yes, the unique extend mode technology allows you to connect PoE devices up to 250 meters away (versus standard 100m), making it perfect for large facilities, parking lots, and perimeter surveillance applications where standard switches fall short.
Q: What makes this switch better than an unmanaged PoE switch for surveillance?
A: Unlike basic unmanaged switches, this easy smart switch offers VLAN isolation for security, QoS for guaranteed video quality, bandwidth control to prevent network congestion, and extend mode for long-distance cameras - essential features for professional surveillance deployments.
TL-SG105PE TP-Link 5-port gigabit easy smart switch with 4-port PoE+ and extend mode for professional IP camera surveillance systems.
